STAGE LIGHTING

While modern LED DMX fixtures are a mainstay for many events, there are still times when conventional stage lighting fixtures still serve a valuable purpose. Nothing projects intense powerful bright color better than conventional fixtures can and SPS maintains a full stock of ellipsoidals, Fresnels, cyclorama border lights, and a variety of PAR wash lights. We also provide related gear including color media, dimmer packs, controllers, socapex multi cables, stage pin cables, power distribution feeder cables, clamps, truss, stands, and batten pipe to provide a complete solution for your production or event. We can also do your lighting design as well if you need that service as well.

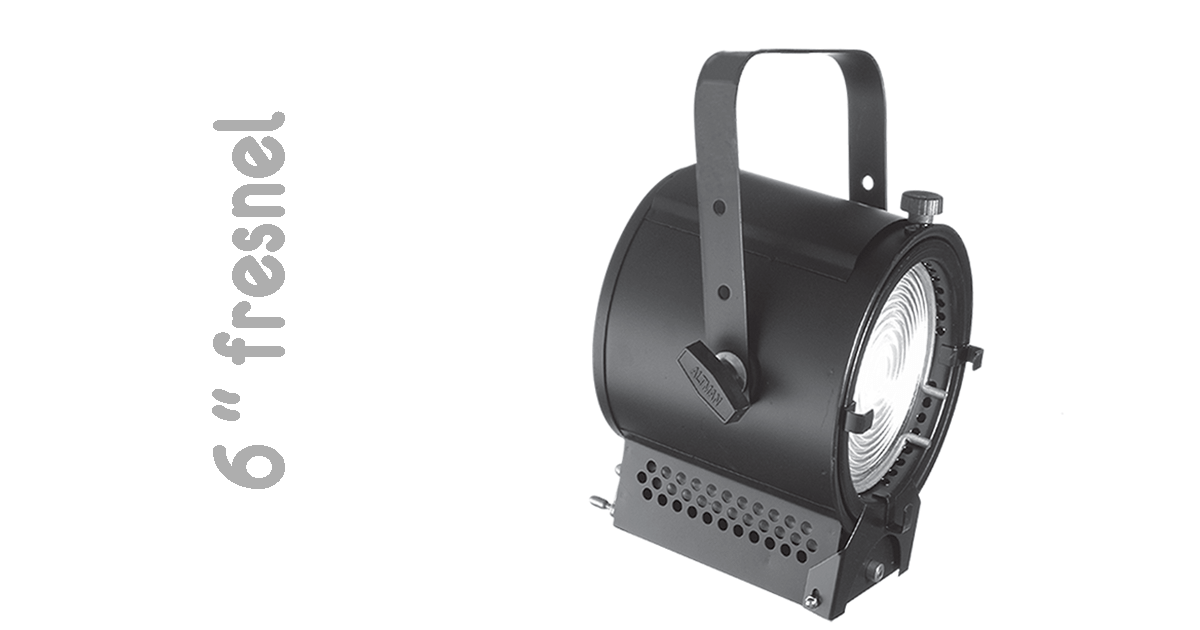

6" Fresnel Spotlight

6 inch fresnel spot
The 6" Fresnel is the basic workhorse soft edge beam fixture typically used behind the theatre proscenium where it's ease of blending is most useful. It's also a great fixture for television, film, or video lighting when fitted with 6-BD-4 four way barn door kit. It produces a beam adjustable from about four to twenty-one feet in diameter at fifteen feet with the hand crank adjustment control. It can be fitted with either a 500 watt BTL or 750 watt BTN medium pre-focus lamp and has a standard 2P+G stage pin connector. We provide a 6-CF color frame with your selection of color media. For spill management we have 6-SN fixture snoots, if needed. For stage applications, the fixture will be equipped with a 510 pipe clamp for batten pipe. For television, film, or video applications, we provide a TVMP adaptor to fit standard "C" stands and gaff mounts. Dimensions: 14 1/4" high, 8 1/2" wide, and 10 1/4" deep. Nominal weight without clamp: 11.5#. Optical characteristics for spot focus: Beam 9° Field 16°. For flood focus: beam 59° field 70°.

Altman 165Q
Altman 165Q Fresnel Photometrics (with 750 watt BTN lamp)
Distance Spot Flood
Diameter Footcandles Diameter Footcandles
10' 2.8' 925 14' 88
15' 4.2' 411 21' 39
20' 5.6' 231 28' 22
25' 7.0' 148 35' 14
30' 8.4' 102 42' 10

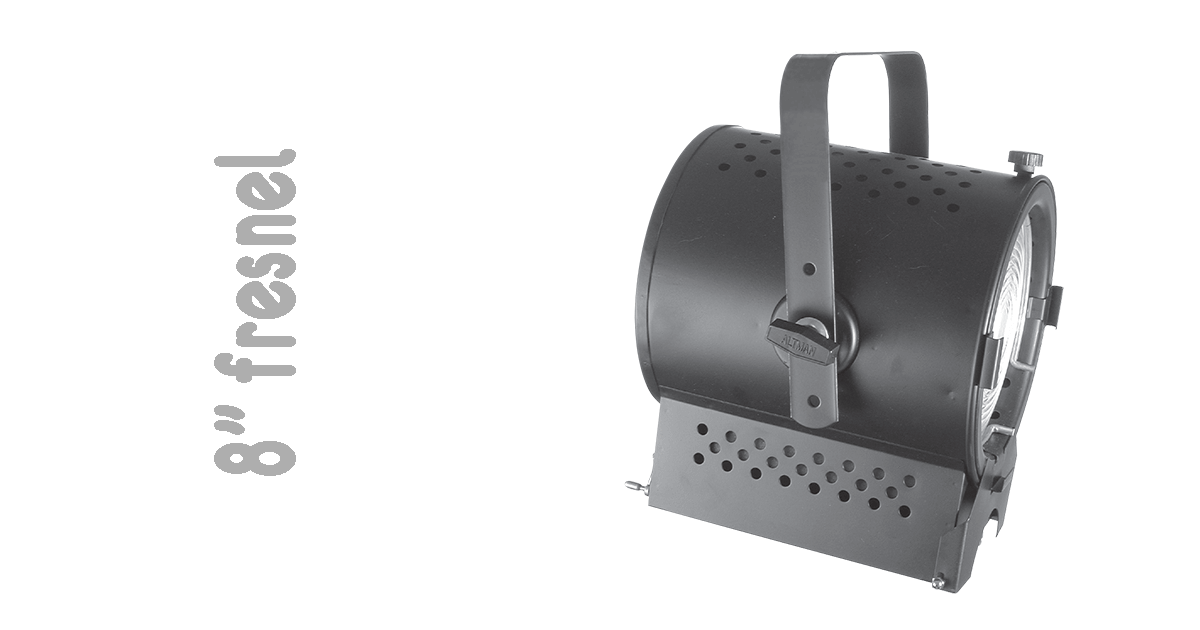

8" Fresnel Spotlight

8 inch fresnel spot
The 8" Fresnel is a larger soft edge beam fixture typically used behind the theatre proscenium where it's ease of blending, higher output, and longer throw is more useful. It's also a great fixture for television, film, or video lighting when fitted with a 8-BD-4 four way barn door kit. It produces a beam adjustable from about six to twenty five feet in diameter at thirty feet with the hand crank adjustment control. It is fitted with a 1000 watt BVT mogul pre-focus lamp and has a standard 2P+G stage pin connector. We provide a 8-CF color frame with your selection of color media. We have both 8-SN snoots and half hats for spill management when needed. For stage applications, the fixture will be equipped with a 510 pipe clamp for batten pipe. For television, film, or video applications, we provide a TVMP adaptor to fit standard "C" stands and gaff mounts. Dimensions: 19" high, 11 1/4" wide, and 13 1/2" deep. Nominal weight without clamp: 16#. Optical characteristics for spot focus: Beam 6.7° Field 37°. For flood focus: beam 37° field 45°.

Altman 175Q
Altman 175Q Fresnel Photometrics (with 1000 watt BVT lamp)
Distance Spot Flood
Diameter Footcandles Diameter Footcandles
20' 4.2' 425 16.6' 50
25' 5.3' 272 20.7' 32
30' 6.3' 189 24.9' 22
35' 7.4' 139 29' 16
40' 8.4' 106 33.1' 13

6x9 Ellipsoidal Spotlight

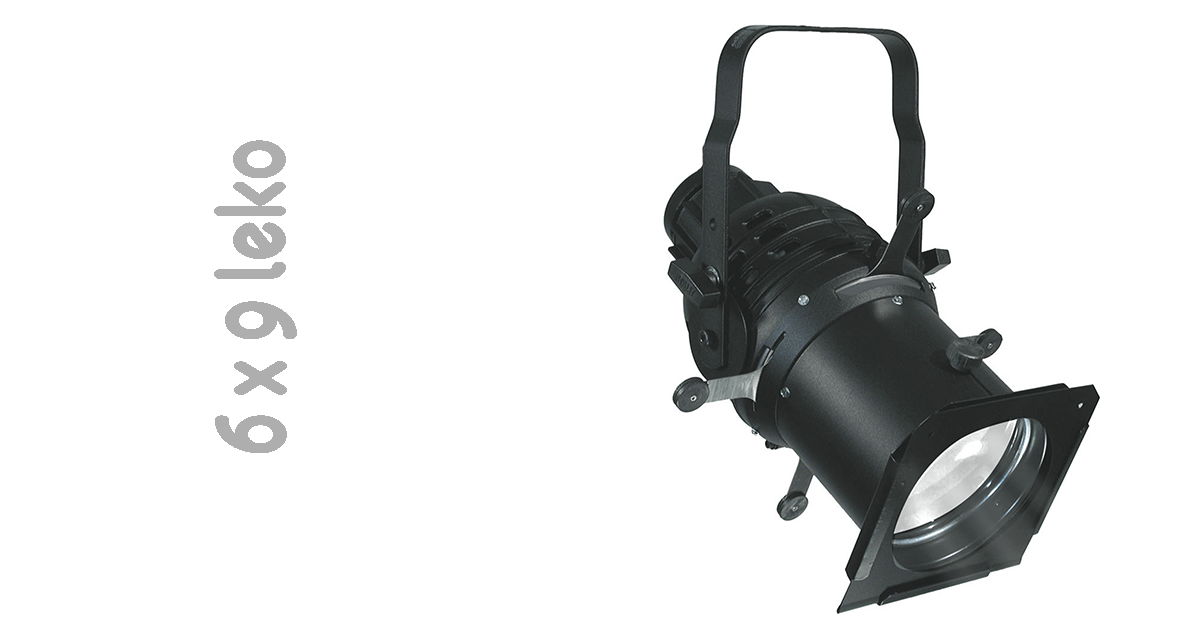

6x9 ellipsoidial reflector spot
The 6x9 dual planoconvex lens ellipsoidal reflector spotlight is a wide angle 37° hard edge beam fixture typically used in front of the proscenium where it's beam shaping and control and short throw allows closer positioning. Four adjustable integral stainless steel framing shutters provide beam shaping ability and the pattern slot and 360-PH holder provide the ability to project visual images with gobos. It produces a beam of twenty feet in diameter at thirty feet. Radial 360s and Century Strand Lekolites are fitted with a 750 watt EGG medium pre-focus lamp, Axial 360Qs are fitted with the 575 watt GLC medium bi-pin lamp and all have roughly the same photometrics. All have a standard 2P+G stage pin connector. We provide a 6-CF color frame with your selection of color media. The fixture will be equipped with a 510 pipe clamp for batten pipe. Dimensions: 16 1/4" high, 13" wide, and 18 1/8" deep. Optical characteristics for spot focus: Beam 16° Field 37°. Nominal weight without clamp: 14#.

Altman 360-6x9 (radial)
Altman 360Q-6x9 (axial)
Century Strand Lekolite 2321 (radial)
Altman 360Q-6x9 Ellipsoidal Photometrics
(with 575 watt GLC lamp)
Distance Spot
Diameter Footcandles
10' 6' 880
20' 13' 220
30' 20' 97
40' 27' 55
50' 33' 35
60' 40' 24
70' 47' 18

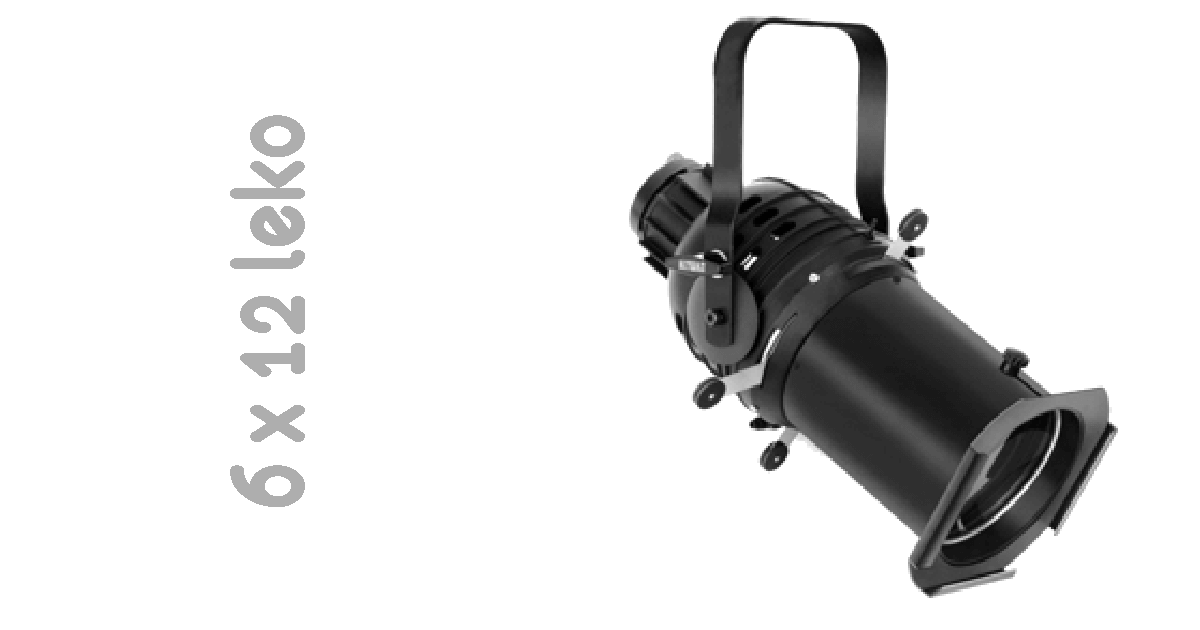

6x12 Ellipsoidal Spotlight

6x12 ellipsoidial reflector spot
The 6x12 dual planoconvex lens ellipsoidal reflector spotlight is a medium angle 11° hard edge beam fixture typically used in front of the proscenium where it's beam shaping and control and medium throw makes this a real workhorse. Four adjustable integral stainless steel framing shutters provide beam shaping ability and the pattern slot and 360-PH holder provide the ability to project visual images with gobos. It produces a beam of fourteen feet in diameter at thirty feet. Radial 360s are fitted with a 750 watt EGG medium pre-focus lamp, Axial 360Qs are fitted with the 575 watt GLC medium bi-pin lamp and both have roughly the same photometrics. Either has a standard 2P+G stage pin connector. We provide a 6-CF color frame with your selection of color media. The fixture will be equipped with a 510 pipe clamp for batten pipe. Dimensions: 16 1/4" high, 13" wide, and 20 1/8" deep. Nominal weight without clamp: 16#. Optical characteristics for spot focus: Beam 11° Field 26°.

Altman 360-6x12 (radial)
Altman 360Q-6x12 (axial)
Altman 360Q-6x12 Ellipsoidal Photometrics
(with 575 watt GLC lamp)
Distance Spot
Diameter Footcandles
10' 5' 1649
20' 10' 412
30' 14' 183
40' 19' 103
50' 23' 66
60' 28' 46
70' 32' 34

6x16 Ellipsoidal Spotlight

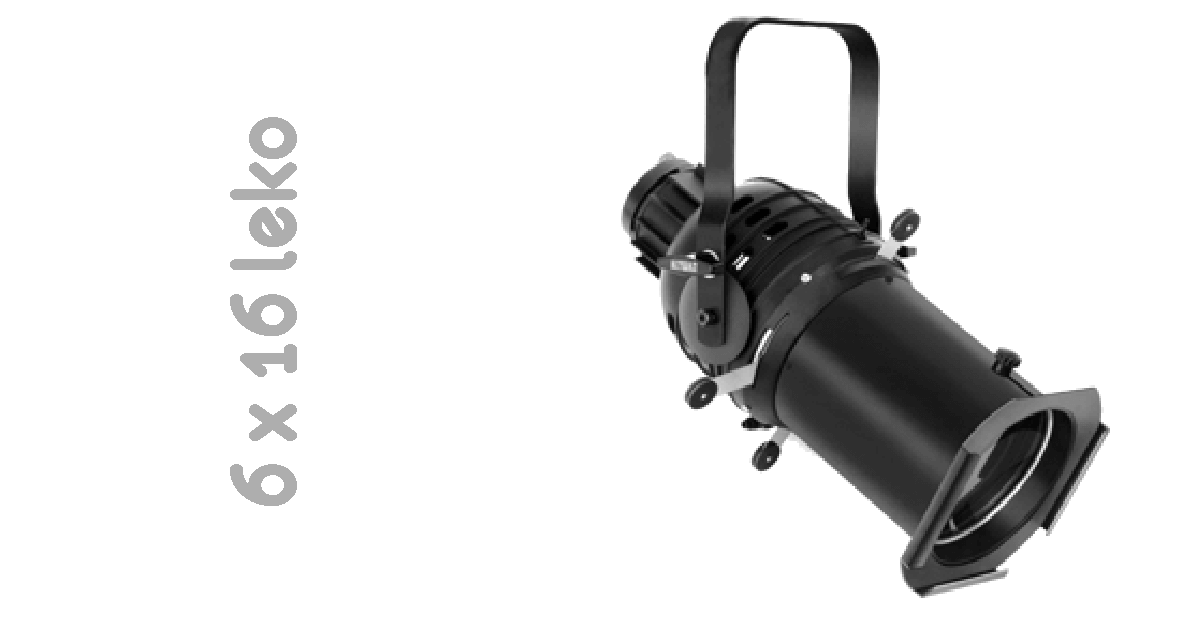

6x16 ellipsoidial reflector spot
The 6x16 dual planoconvex lens ellipsoidal reflector spotlight is a narrow angle 8.5° hard edge beam fixture typically used in front of the proscenium where it's beam shaping and control and long throw are ideal for house bridge or balcony rail positions. Four adjustable integral stainless steel framing shutters provide beam shaping ability and the pattern slot and 360-PH holder provide the ability to project visual images with gobos. It produces a beam of ten feet in diameter at thirty feet. Radial 360s are fitted with a 750 watt EGG medium pre-focus lamp, axial 360Qs are fitted with the 575 watt GLC medium bi-pin lamp and both have roughly the same photometrics. Both variations have a standard 2P+G stage pin connector. We provide a 6-CF color frame with your selection of color media. The fixture will be equipped with a 510 pipe clamp for batten pipe. Dimensions: 16 1/4" high, 13" wide, and 22 5/8" deep. Nominal weight without clamp: 16#. Optical characteristics for spot focus: Beam 8.5° Field 19°.

Altman 360-6x16 (radial)
Altman 360Q-6x16 (axial)
Altman 360Q-6x16 Ellipsoidal Photometrics
(with 575 watt GLC lamp)
Distance Spot
Diameter Footcandles
10' 4' 2318
20' 7' 549
30' 10' 258
40' 14' 145
50' 17' 93
60' 20' 64
70' 24' 47

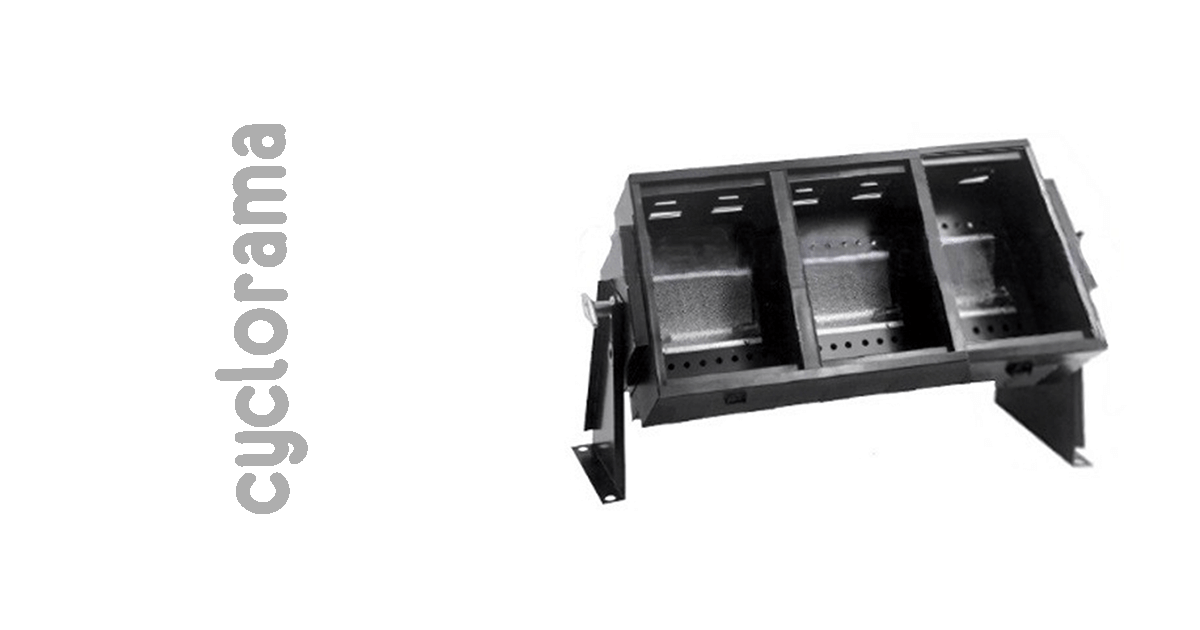

Three Cell Borderlight

three cell ground cyclorama fixture
The Ground Cyc is multi-lamp, compartmented borderlight fixture designed to provide an even wash of light on cycloramas, primarily from a groundrow position but also inverted from the sky position. We have the three cell version which can be fitted with red, blue, and green color media to function as conventional borderlights as well. Each GC-3 compartment can be fitted with a 500 watt FCL, 750 watt EJG, or 1000 watt FCM lamp. Each fixture has three male and three female standard 2P+G stage pin connectors, one pair per compartment. We provide three GC-CF color frames with your selection of color media. The fixture will be equipped with a pair of FT trunions for groundrow use and a pair of FT trunions fitted with a pair of 510 pipe clamp for batten pipe when used overhead as sky cycs. Dimensions: 16 3/4" high, 31" wide, and 11 3/4" deep. Nominal weight without clamp: 40#. Optical characteristics (asymetrical) for horizontal flood focus: Beam 50° Field 70° and vertical flood focus: Beam 65° Field 83°.

Altman GC-3
Altman GC-3 GroundCyc Photometrics
(with 1000 watt FCM lamp)
Distance Footcandles Horizontal
Diameter
Vertical
Diameter
2.5' 1296' 4' 4'
5' 324' 7' 9'
10' 81 14' 18'
15' 36' 20 27'
20' 20 26' 30'
25' 13 33' 39'

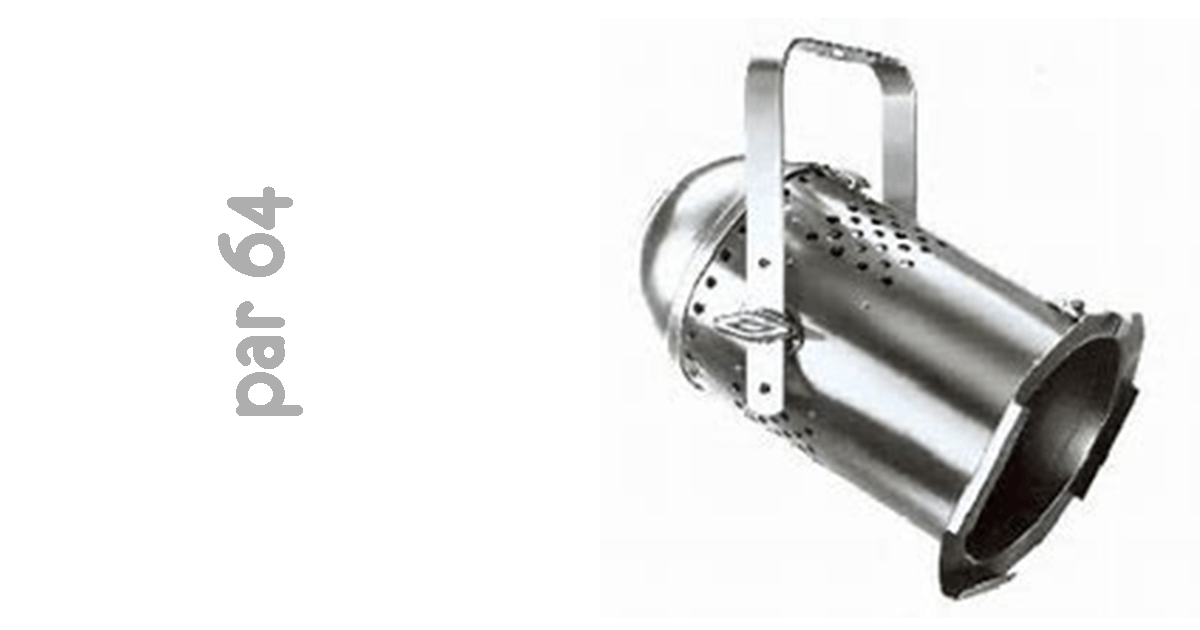

PAR 64 Washlight

PAR64 fixture
The PAR64 is an interchangeable lamp fixture designed to provide powerful intense long throw color washes such as from lighting trusses. Beam characteristics depend on the selected lamp as shown in the chart below which gives the foot candles (FC), vertical and horizontal diameter at various distances. A PAR64 fixture can be fitted with a 1000 watt very narrow spot, narrow spot, medium flood or wide flood mogul end prong lamps. The fixture is equiped with a standard 2P+G stage pin connector. We provide a 8-CF color frame with your selection of color media. For spill management, we have both full and half hats when needed. Fixtures can be provided with 510 clamps for batten pipe mounting, half couplers for truss mounting, clustered on four fixture bars, or clustered on four fixture socopex PAR Bars. Dimensions: 15 1/4" high, 11" wide, and 16" deep. Nominal weight without clamp: 12# (steel) 9# (aluminum).

PAR 64 Optical Characteristics
Description Lamp Beam Field
Vert
Dia
Horz
Dia
Vert
Dia
Horz
Dia
Very Narrow Spot (VNSP) FFN 12° 10° 24°
Narrow Spot (NSP) FFP 14° 14° 26°
Medium Flood (MFL) FFR 12° 28° 21° 44°
Wide Flood (WFL) FFS 24° 48° 45° 71°

Altman PAR64 (black steel)
Altman PAR64-AL (polished aluminum)
PAR64 Photometrics
(with 1000 watt FFN, FFP lamps)
Distance Very Narrow Spot
FFN
Narrow Spot
FFP
FC Vert
Dia
Horz
Dia
FC Vert
Dia
Horz
Dia
10' 4000 6 4.3' 3300 2.5' 4.6'
20' 1000 2.5' 4.6' 825 4.9' 9.2'
30' 445 5.3' 12.8' 367 7.4' 13.9'
40' 250 7.0' 17.0' 206 9.8' 18.5'
50' 160 8.8' 21.3' 132 12.3' 23.1'
60' 111 10.5' 25.5' 92 14.8' 27.7'
PAR64 Photometrics
(with 1000 watt FFR, FFS lamps)
Distance Medium Flood
FFR
Wide Flood
FFS
FC Vert
Dia
Horz
Dia
FC Vert
Dia
Horz
Dia
10' 1250 3.7' 8.0' 400 8.3' 14.3'
20' 313 7.4' 16.2' 100 16.6' 28.5'
30' 139 11.1' 24.3' 44 24.9' 42.8'
40' 78 14.8' 32.3' 25 23.1' 57.0'
50' 50 18.5' 40.4' 16 41.4' 71.3'
60' 35 22.2' 48.5' 11 49.7' 85.6'

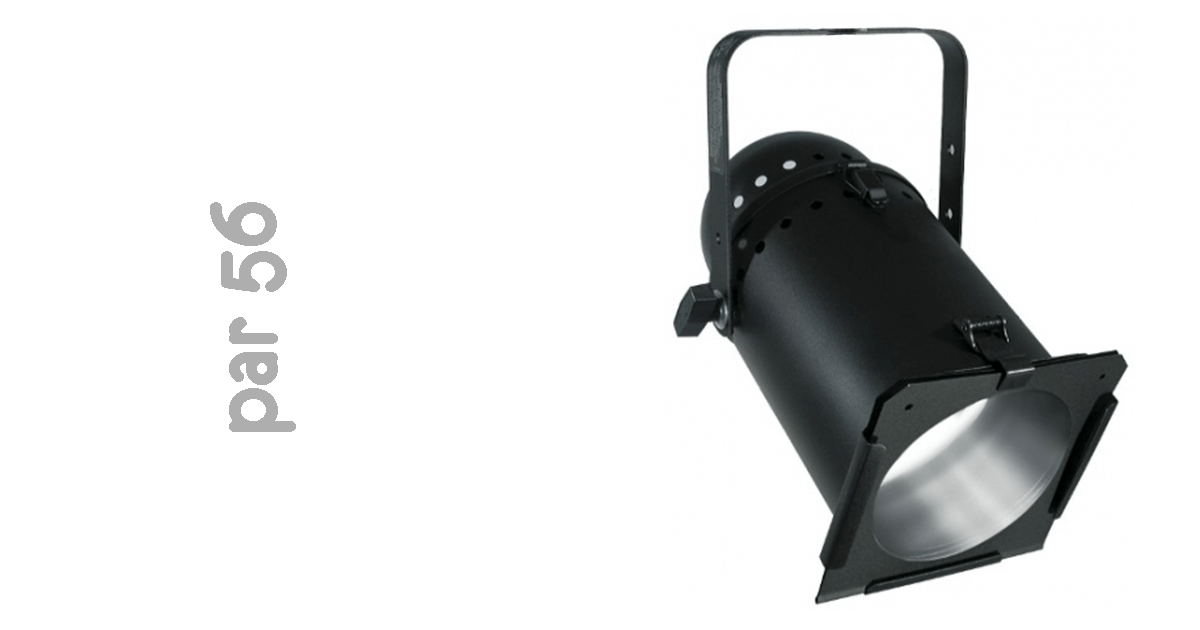

PAR 56 Washlight

PAR56 fixture
The PAR56 is an interchangeable lamp fixture designed to provide intense powerful color washes from short to medium throws. Normally these fixtures are used with NSI batten mounted dimmer packs. Beam characteristics depend on the selected lamp as shown in the chart below which gives the foot candles (FC), vertical and horizontal diameter at various distances. A PAR56 fixture will be fitted with a 500 watt narrow spot, medium flood or wide flood mogul end prong lamp. This is a 120 volt AC fixture and is equipped with a standard male NEMA 5-15P plug connector. We provide a 7-CF color frame with your selection of color media. Fixtures can be provided with 510 clamps for batten pipe mounting, C Clamps for light weight batten mounting, or O Clamps for stand mounting. Dimensions: 11 1/8" high, 7 3/4" wide, and 13 3/4" deep. Nominal weight without clamp: 10# (steel).

PAR 56 Optical Characteristics
Description Lamp Beam Field
Vert
Dia
Horz
Dia
Vert
Dia
Horz
Dia
Narrow Spot (NSP) 500PAR56/NSP 13° 15° 32°
Medium Flood (MFL) 500PAR56/MFL 10° 26° 20° 44°
Wide Flood (WFL) 500PAR56/WFL 20° 44° 34° 66°

Altman PAR56 (Black Steel)
PAR56 Photometrics
(with 500PAR56 lamps)
Distance Narrow Spot
NSP
Medium Flood
MFL
Wide Flood
WFL
FC Vert
Dia
Horz
Dia
FC Vert
Dia
Horz
Dia
FC Vert
Dia
Horz
Dia
10' 1100 2.3' 3.5' 350 3.5' 86.3' 120 6.3' 12.7'
20' 275 4.6' 7.1' 88 7.1' 12.6' 30 12.6' 25.5'
30' 122 6.8' 10.6' 39 10.6' 18.9' 13 18.9' 22.0'
40' 69 9.1' 14.1' 22 14.1' 25.2' 8 25.2' 51.0'
50' 44 11.4' 17.6' 14 17.6' 3.5' 5 31.5' 63.7'

PAR 46 Washlight

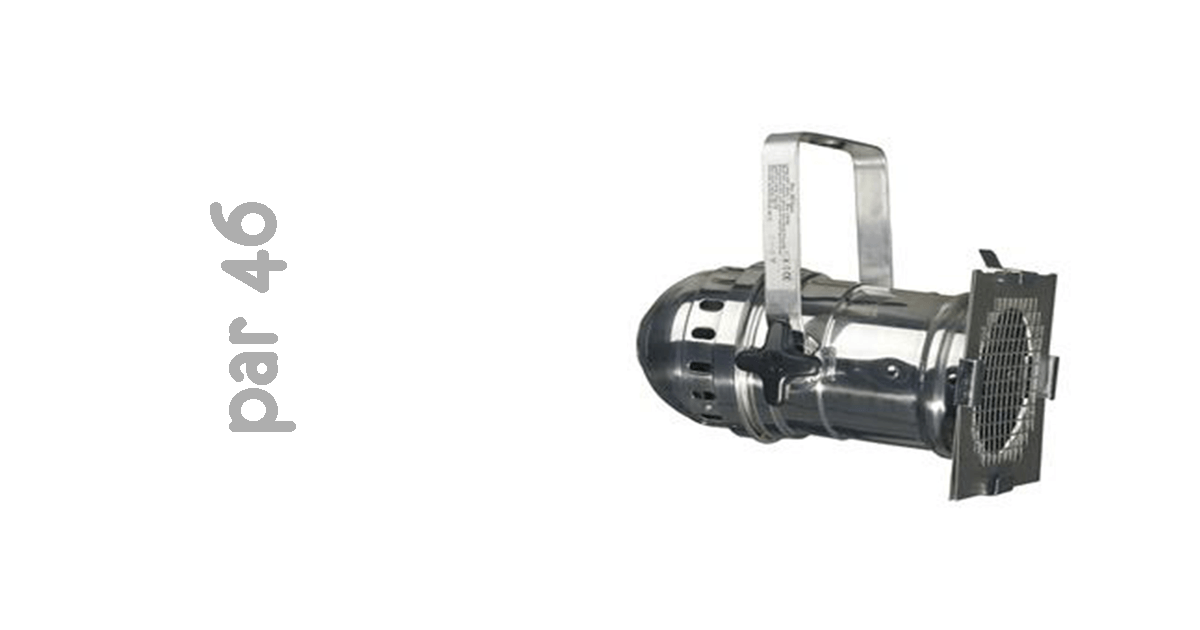

PAR46 fixture
The PAR46 is a small fixture designed to provide accent color washes from light weight battens or floor stands. Beam characteristics depend on the selected lamp as shown in the chart below which gives the foot candles (FC), vertical and horizontal diameter at various distances. A PAR46 fixture will be fitted with a 200 watt narrow spot, medium spot, medium flood or wide flood medium end prong lamp. This is a 120 volt AC fixture and is equipped with a standard male NEMA 5-15P plug connector. We provide a 4.5-CF color frame with your selection of color media. Fixtures can be provided with 510 clamps for batten pipe mounting, C Clamps for light weight batten mounting, O Clamps for stand mounting, or a variety of custom brackets for special applications. Dimensions: 10 1/4" high, 7 3/4" wide, and 11 3/4" deep. Nominal weight without clamp: 7# (steel).

PAR 46 Optical Characteristics
Description Lamp Field
Vert
Dia
Horz
Dia
Narrow Spot (NSP) 200PAR46/NSP 17° 23°
Medium Flood (MFL) 200PAR46/MFL 20° 40°
Very Wide Flood (VWFL) 200PAR46/VWFL 63° 65°

Altman PAR46 (Polished Aluminum)
PAR46 Photometrics
(with 200PAR46 lamps)
Distance Narrow Spot
NSP
Medium Flood
MFL
Very Wide Flood
VWFL
FC Vert
Dia
Horz
Dia
FC Vert
Dia
Horz
Dia
FC Vert
Dia
Horz
Dia
5' 1300 2.2' 3.5' 448 1.8' 3.6' 62 6.1' 6.4'
10' 325 3.0' 4.0' 112 3.6' 7.3' 16 12.2' 12.7'
15' 144 4.5' 6.0' 50 5.3' 10.9' 7 18.4' 19.1'
20' 81 6.0' 8.0' 28 7.0' 14.6'
25' 52 7.5' 10.0' 18 8.8' 18.2'

PAR 36 Pin Spots

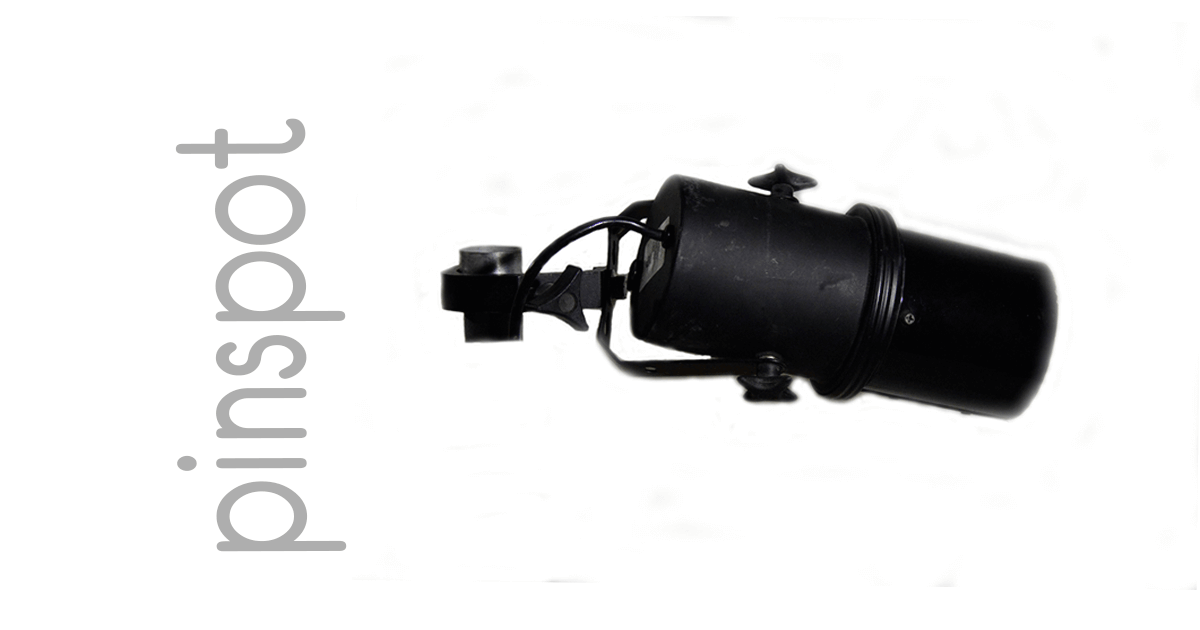

PAR36 pinspot fixture
Pin spots are great accent lights and feature a long throw with a very tight white beam. Our pin spots are 35 watts and are fitted with GE 4515 screw terminal seal beam lamps. We stock a variety of mounting clamps to attach them lots of ways. They can also be mounted on tee bars in groups of eight which we've used for jewelry shows and other product accent lighting. This is a 120 volt AC fixture equipped with a standard male NEMA 5-15P plug connector. Dimensions: 4" diameter, 11" depth included extended snoot. Weight 5#. Optical characteristics: 5° circular beam spread.

Varytech PIN130
PAR36 Photometrics
(with 4515 lamp)
Distance Diameter
5' 0.45'
10' 0.90'
15' 1.35'
20' 1.8'
25' 2.25'
30' 2.7'

Accessory Gear

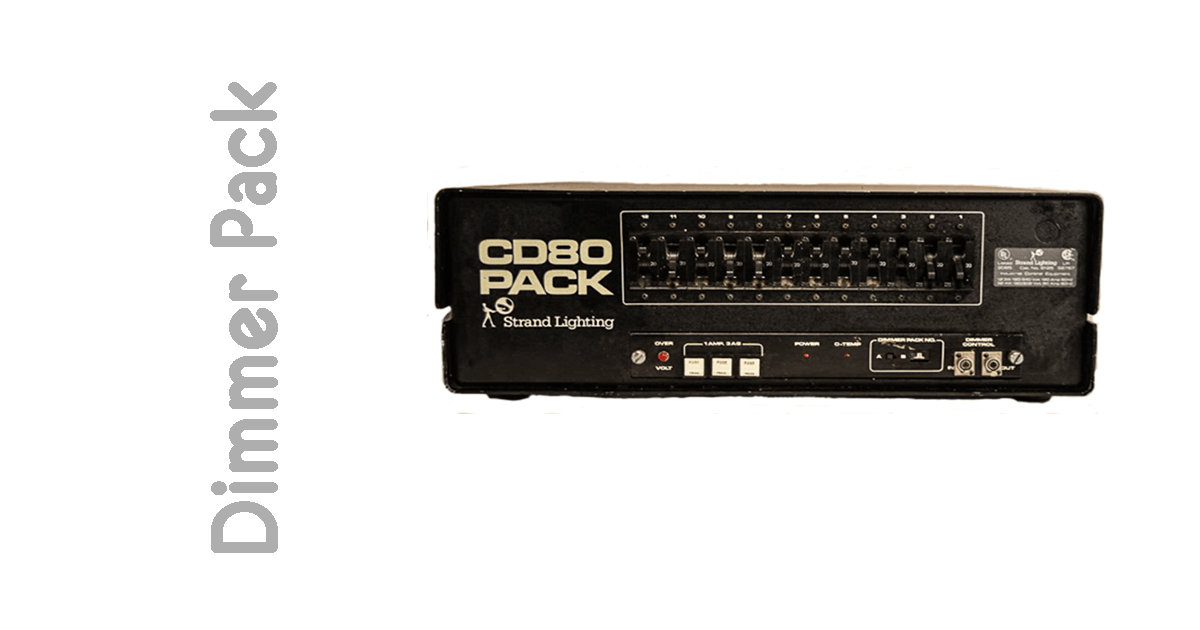

Dimmer Pack

Dimmer Pack
The Strand CD-80 is a workhorse dimmer pack that is super reliable, ultra portable and packs a lot of power in a small package. Featuring a dozen 2.4 kilowatt dimmers with dual stage pin out connectors for each channel. Our packs have been upgraded to DMX control for full compatability with modern control desks. Power input is 100 amps, single phase, 220 volts AC using standard camlocs.

We also have a larger tour system with 36 2.4kw dimmers.

Strand CD-80

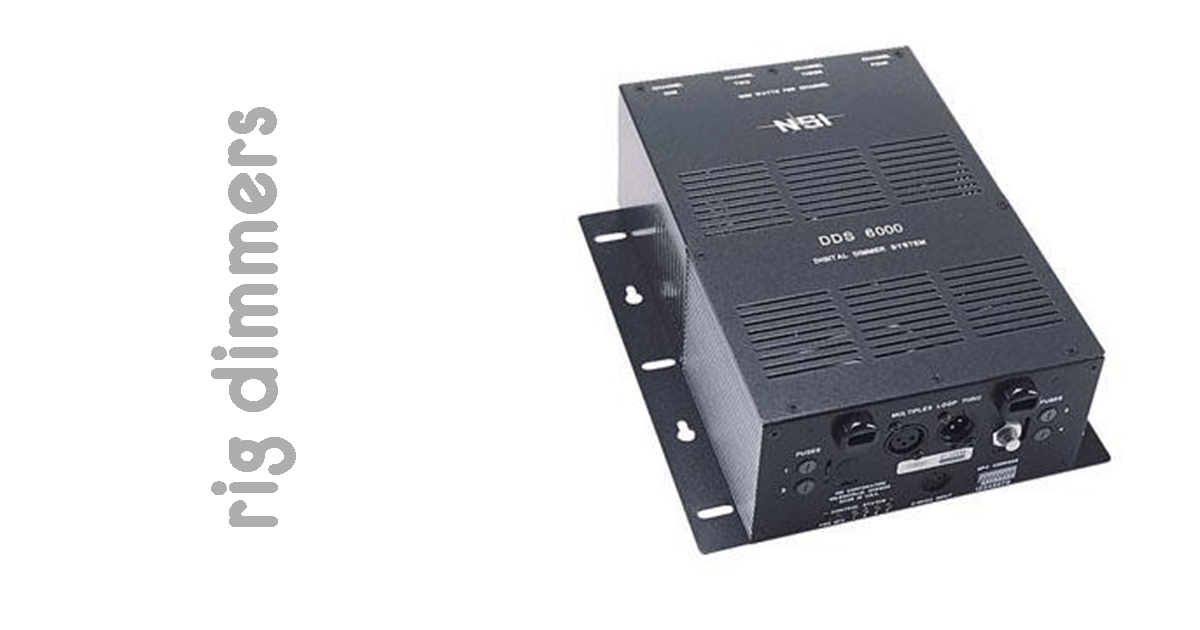

Rig Mount Dimmer System

Rig Mounted Dimmer System
The NSI 2600 dimming system is great for smaller venues and features compact batten or truss mounted four channel dimmer packs remotely mounted in the rigging thus eliminating the need for lots of cabling. Featuring four 1.2 kilowatt dimmers with dual female NEMA 5-15R connectors for each channel. Our packs have been upgraded to DMX control for full compatability with modern control desks. Power input is two 20 amp, single phase, 120 volts AC using standard male 2P+G stage pin connectors. These are most commonly packaged with our PAR56 fixtures as they work very well together.

Leviton-NSI N600P-D20

Socapex Multicables

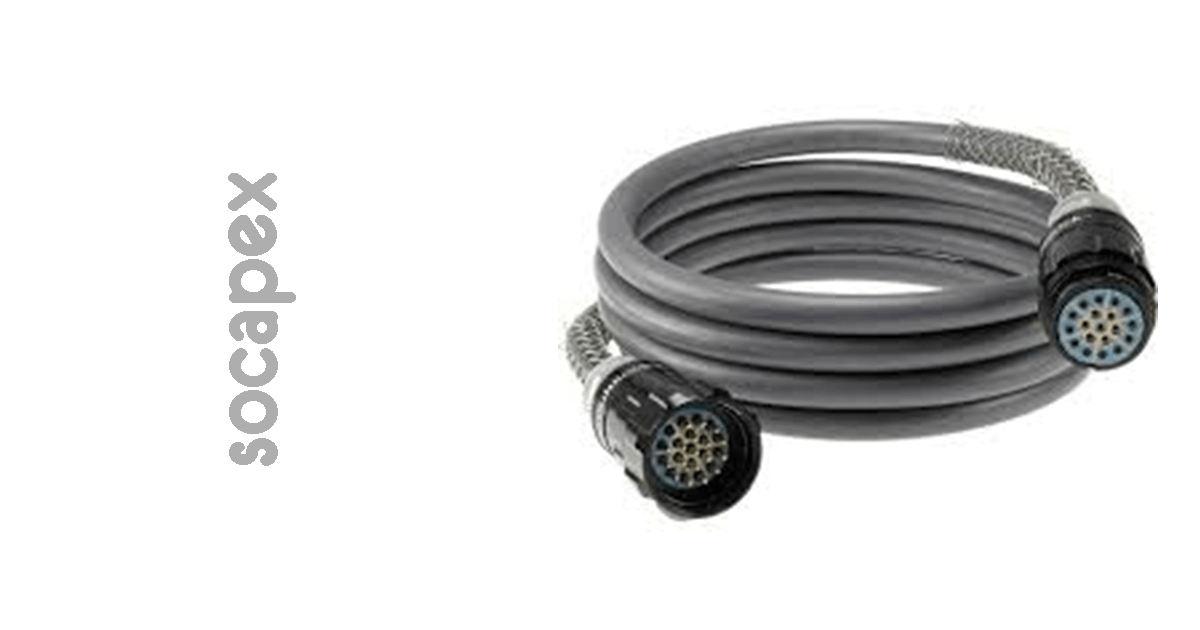

Socapex Multicables
Socapex multicables provide a fast and clean way to run power circuits from the dimmer racks or distro to the fixture locations. Each cable carries four to six circuits, either 120 or 220 volt in either 14 gage (1000 watt) per circuit or 12 gage (2000 watts per circuit). We have Socapex PAR Bars or breakouts for the stage end, breakouts or direct connections to dimmers or distro at the racks. Additionally, SPS can provide non dimming distros for either six 120 volt AC circuits or six 220 volt AC circuits to provide power for truss mounted moving lights. Standard multicable length is 50 feet and we have even longer lengths of the four circuit 14 gage that work nicely with four fixture PAR Bars.

Socapex Wiring Diagram

Socapex Multicables

Stage Pin Cables

Stage Pin Cables
Stagepin 2P+G cables provide a reliable way to run power circuits from the dimmer racks or distro to the fixture locations. Each cable carries one circuit, 120 volts AC in either 14 gage (1560 watts) or 12 gage (2400 watts). Standard cable length is 25', 50' and 75' feet. SPS carries a good inventory of twofers, threefers, breakout boxes, and adapters to and from NEMA 5-15 cables and fixtures. We also carry 6 gage (6000 watts) feeder cables for power distribution as well.


Bates/Marinco 20M/20F (14/3 SO, 12/3 SO 120 Volts)
Bates/Marinco 60M/60F (6/3 SO 120 Volts)
Bates/Marinco 100M/100F (2/3 W, 120 Volts)
Bates/Marinco 106M/106F (2/3 W, 250 Volts)

NEMA 5-15 Cables

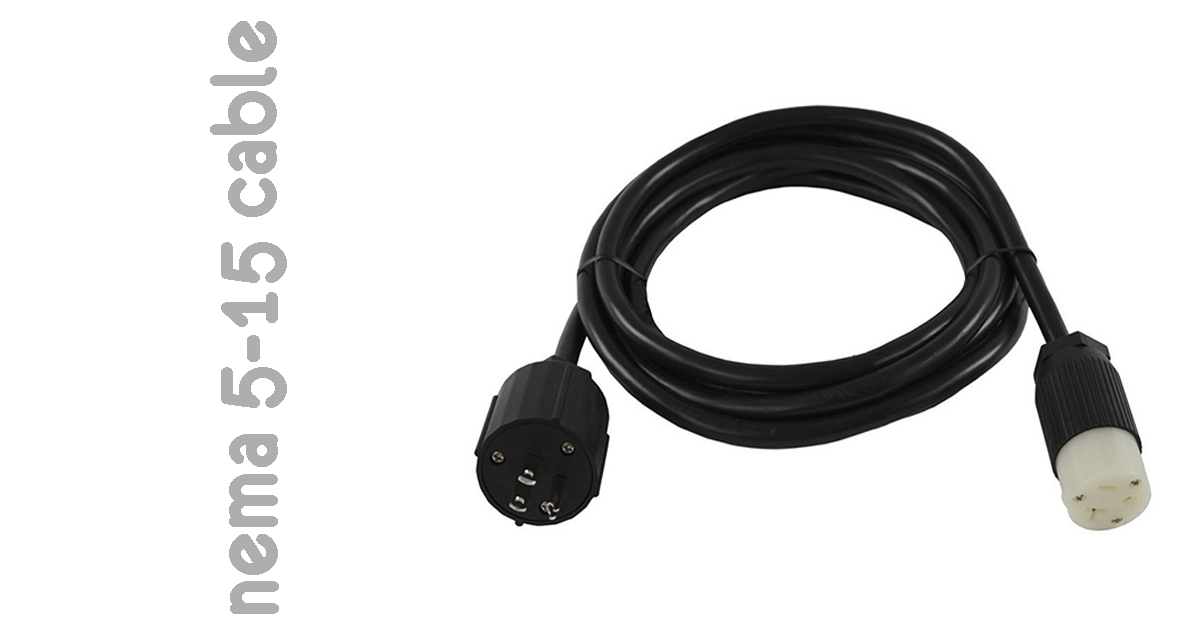

NEMA 5-15 Cables
NEMA 5-15 cables are for light duty, low wattage fixtures. Each cable carries one circuit, 120 volts AC either 16 gage (1200 watts/10 amps), 14 gage (1560 watts/13 amps), or 12 gage (2160 watts/18 amps). Standard cable length is 6, 12 and 25 feet. This you will recognize as the standard wall receptacle configuration. These ratings are recommended maximums for stage lighting purposes.

NEMA 5-15P/5-15C (120 volts/15 amp configuration)

Camloc Cables

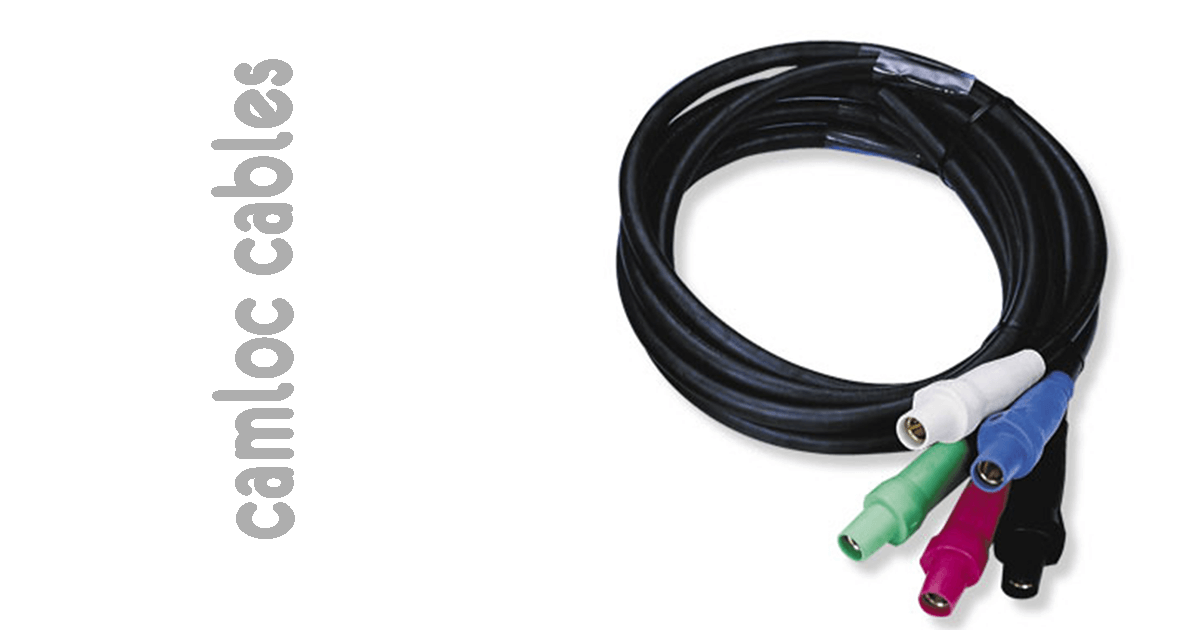

Camloc Cables
Camloc cables are used for high current feeders to dimmer packs and distros. Each cable carries one feeder circuit, 220 volts AC, 2 gage (36,000 watts). Standard cable length is 100 feet and comes color coded black, red, and blue for phases, white for neutral, and green for ground. We also have Camloc distros and snakebite adaptors (to stagepin).


Camloc E1016 Series

Notes...

Note 1: Information about controllers, trussing, battens, lifters, and stands is available on our  Event Lighting page.

Note 2: Beam angle refers to the brightest region of the fixture's beam at the center, Field angle refers to the least bright region of the fixture's beam at the edge.

Note 3: Beam spread formula is BEAM WIDTH = BEAM ANGLE x .018 x DISTANCE
