AUDIO VISUAL SERVICES

Today, audiovisual productions are often a key feature of events ranging from presentation of video clips, powerpoint presentations, teleconference, movies, live cameras, and more. Whether your need is for a conference room, class room, or event stage, Stagecraft has the A/V capabilities that will get the job done. We can also help produce A/V content if needed.

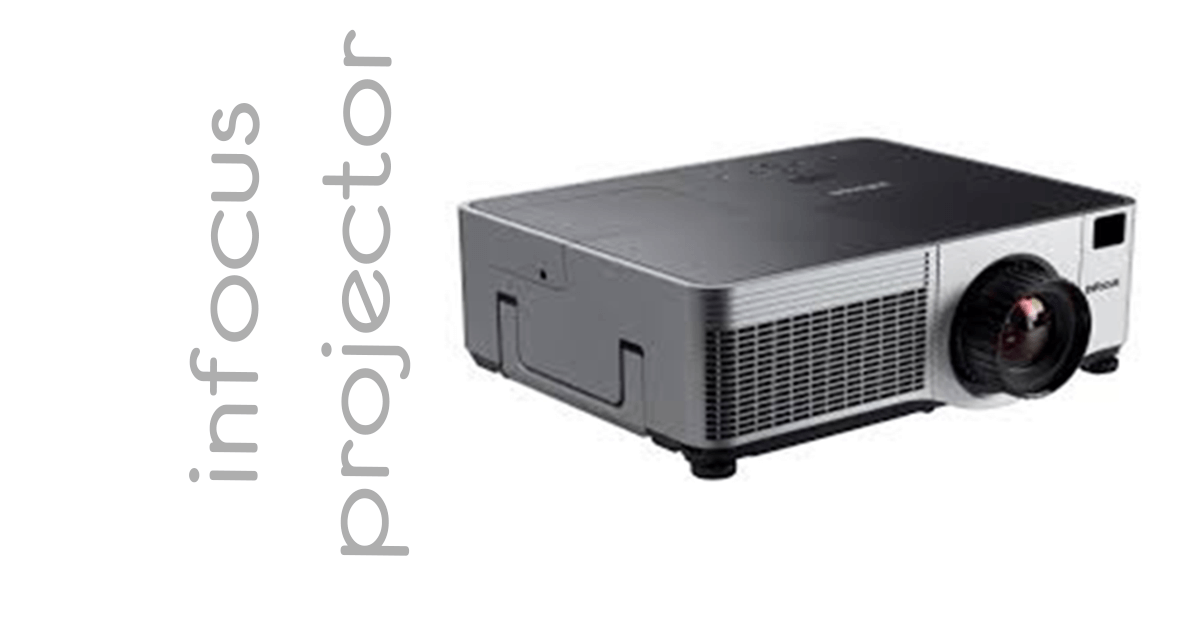

Infocus HD 3LCD Projection System

Infocus Projector Favi 120 HD Screen Behringer Sound
This system is ideal for audiences up to 300 persons. It features complete control of keystoning which eliminates image distortion, and an extremely good optical lens system. It is very bright, even in lit rooms. Ideal for computer, dvd, and blu-ray presentations. It is available with the compact sound system and perhaps a podium for a complete solution.

PROJECTOR:

Native resolution: 1920 x 1200 (WUXGA)

Optical Specs: 4,200 Lumens, Throw 10’-60’

Throw ratio: 1.5 to 2.9 (width/distance). So for 120" HD screen 8’ to 15’ distance.

Keystone controls: both horizontal and vertical

Image controls: wide range brightness and contrast

Projection: front and rear, normal and inverted

Inputs:
  • HDMI 1.3 (mini) CEA-861-D standard
  • VGA (15 pin D Submin)
  • Composite Video (RCA)
  • S-Video
  • Component Video (RCA)
  • RGB (BNC)
  • 3.5mm Stereo audio inputs (2)
Electrical: 420 watts, 120 VAC. IEC/NEMA 5-15P 25’ cable

Provided with stand, if needed, and any 12’ cables needed to connect to your source. We also have flying rigging for suspended mounting of the projector. DVD player available.

Weight: 16#

Infocus IN5110

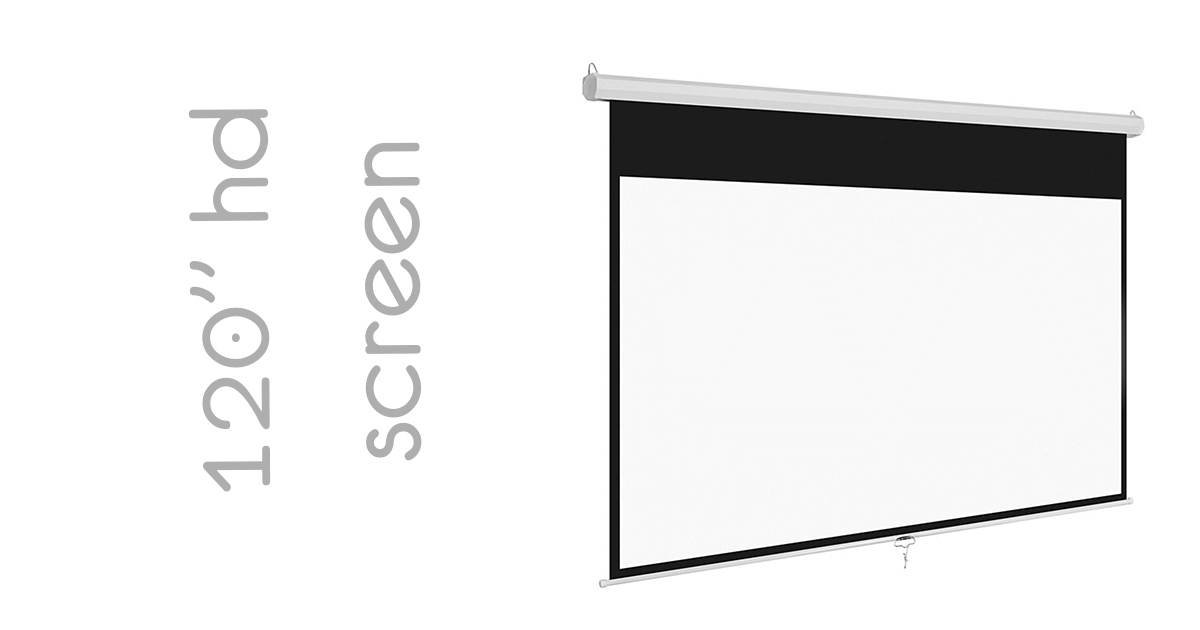

120" DIAGONAL SCREEN:

Very sharp, bright screen provides clear, crisp images. Versatile mounting options.

Viewing area: 105" wide, 60" high

Optimal viewing Distance: 42'

Aspect Ratio: 16:9

Gain: 1.1

Provided with flying rig for suspension from the ceiling structure or floor stands as needed. Floor stands can raise the top of screen up to ten feet above the floor.

Favi FE-PD-HD-120

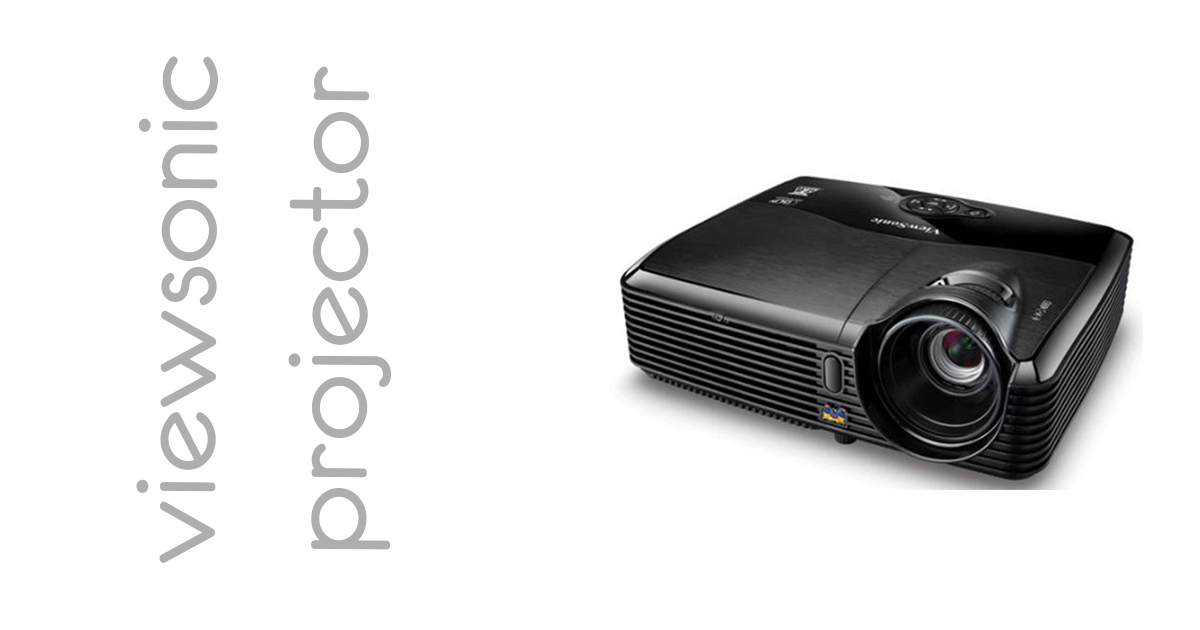

Viewsonic HD DLP Projection System

Viewsonic Projector Epson Duet 80 HD Screen Behringer Sound
This system is ideal for audiences under 50 persons such as a conference room. It features some control of keystoning which eliminates image distortion, and a decent optical lens system. Typically this style projector is used in dim rooms. It is available with the compact sound system and perhaps a podium for a complete solution.

PROJECTOR:

Native resolution: 1280 X 800 (WXGA)

Optical Specs: Lumens 2,700, Contrast Ratio 3000:1, Throw 4’-26’ Aspect Ratio 16:10

Keystone controls: vertical

Inputs:
  • HDMI 1.3 (mini) CEA-861-D standard
  • VGA (two 15 pin D Submin)
  • Composite Video (RCA)
  • S-Video
  • 3.5mm Stereo audio inputs (2)
Electrical: 235 watts, 120 VAC. IEC/NEMA 5-15P 6’ cable

Dimensions: 11" X 9" by 3", Weight 5.75#
Provided with stand, if needed, and any 12’ cables needed to connect to your source.

Viewsonic PJD5523w

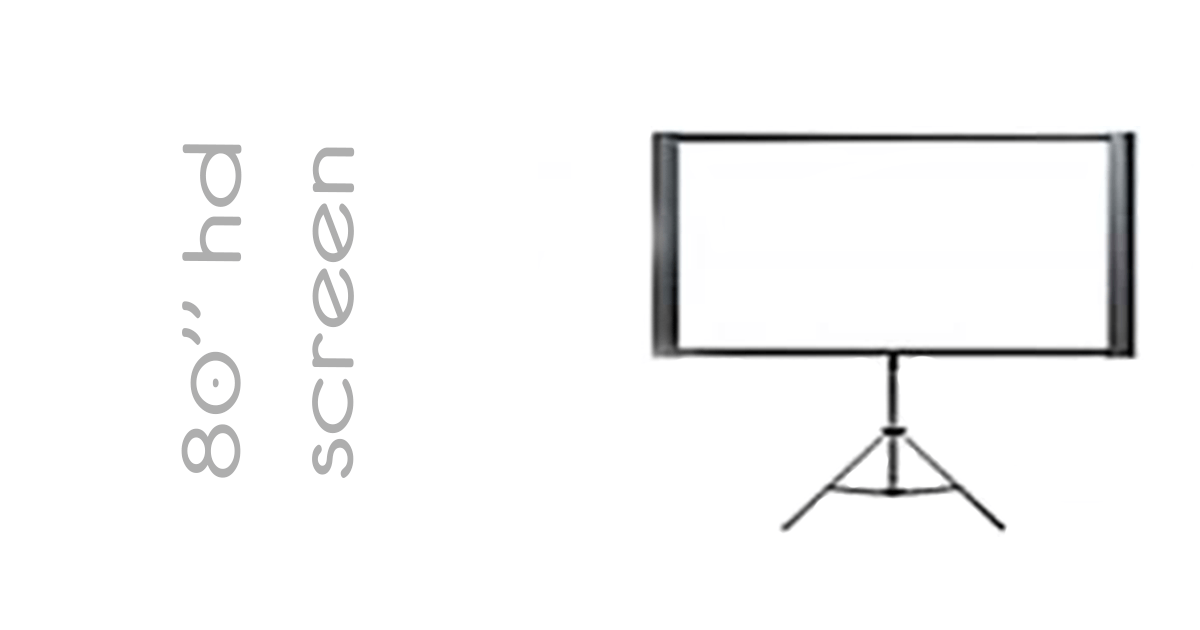

80" DIAGONAL SCREEN:

Very sharp, bright screen provides clear, crisp images, freestanding stand.

Viewing area: 79.5" wide, 42.5" high

Optimal Viewing Distance: 28'

Aspect Ratio: 16:9

Gain: 1.1

Dimensions (transport): 46" X 11.5" X 9", Weight: 26.55#

Epson Duet ELPSC80

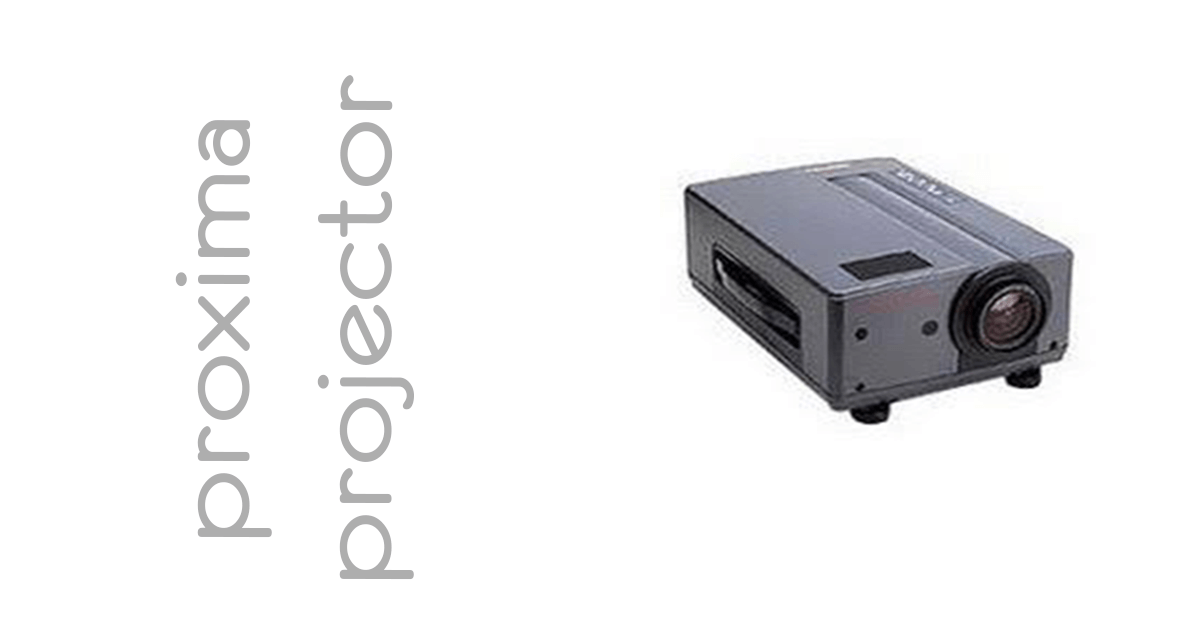

Proxima SD Projection System

SD Projector Elite 80 SD Screen
This system is ideal for covering overflow areas. It features some control of keystoning which eliminates image distortion. Typically this style projector is used in dim areas. Normally, these are used flown from the ceiling, so we have fly rigs for everything.


PROJECTOR:

Native resolution: 640 X 480 (VGA)

Optical Specs: Lumens 500, Throw 4’-50’ Aspect Ratio 4:3
Keystone controls: vertical, up to 9°
Inputs:
  • VGA (two 15 pin D Submin)
  • Composite Video (RCA) (4)
  • S-Video (2)
  • 3.5mm Stereo audio inputs (2)
  • Stereo audio inputs (RCA)
Electrical: 300watts, 120 VAC. IEC/NEMA 5-15P 6’ cable

Dimensions: 18" X 13" by 7", Weight 23#
Provided with fly rig, if needed.

Promixa DP5500

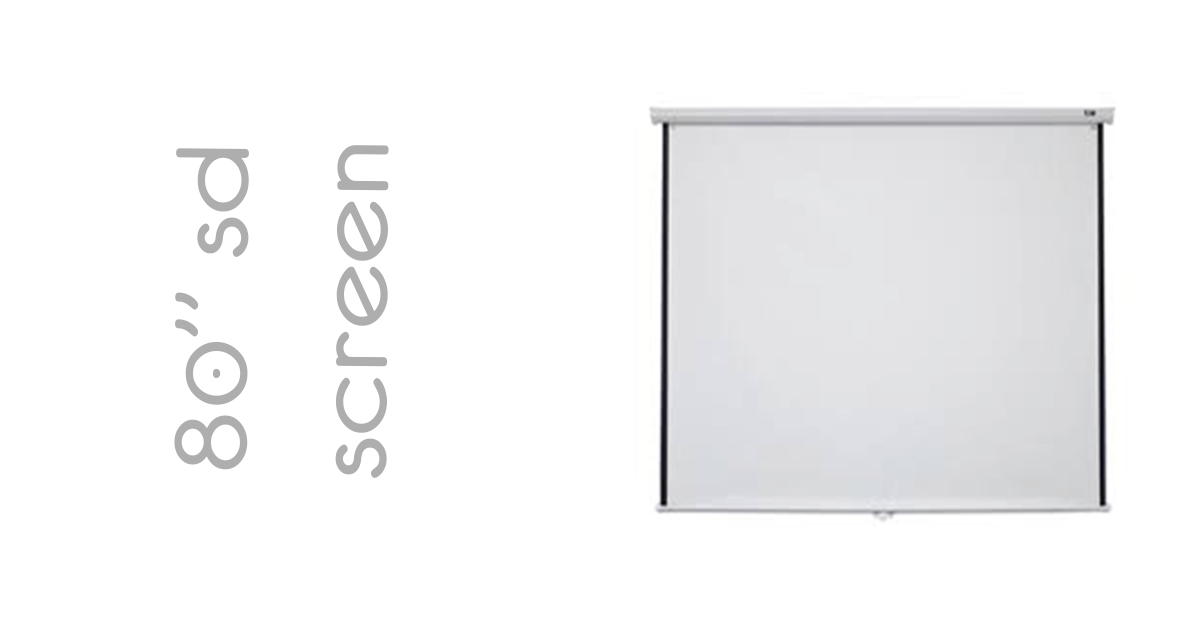

80" DIAGONAL SCREEN:

Very sharp, bright screen provides clear, crisp images.


Viewing area: 63" wide, 48" high

Optimal viewing distance: 27'

Aspect Ratio: 4:3

Gain: 1.1, Viewing angle: 160°

Dimensions (transport): 65" X 4" X 4"

Available with fly rig.

Elite N80NWV

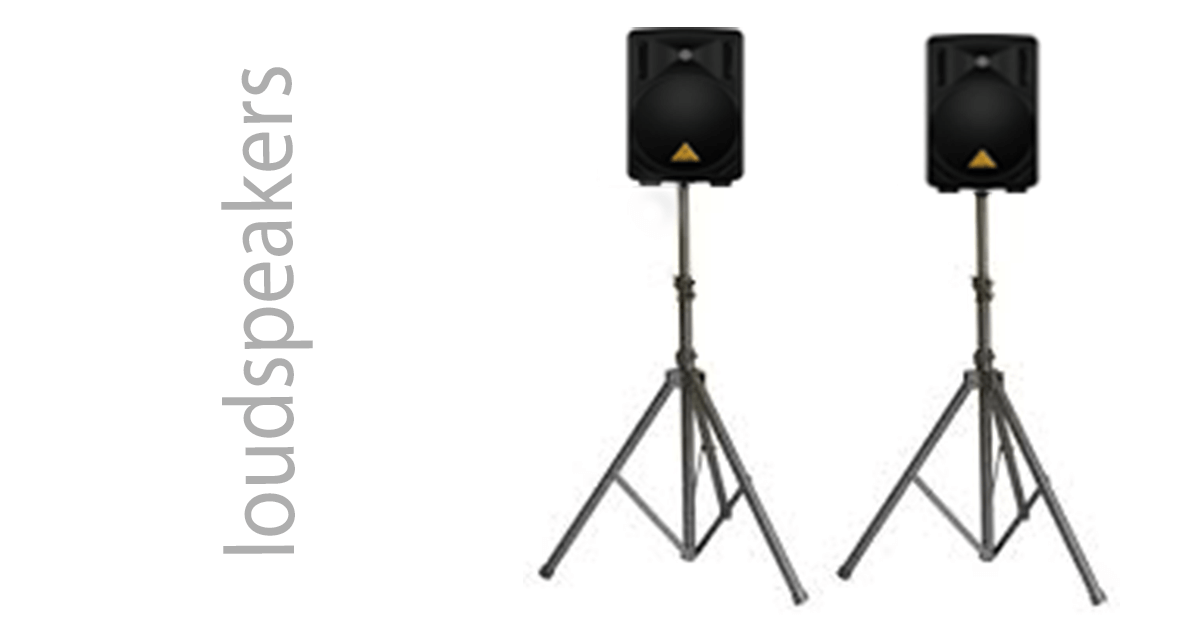

Active Speaker Systems

Active Speaker Systems
Active speaker systems are perfect as part of an audio/visual solution, either to handle projector audio or with a handheld, lavalier, or headset microphone. Total system power: 404 peak watts.

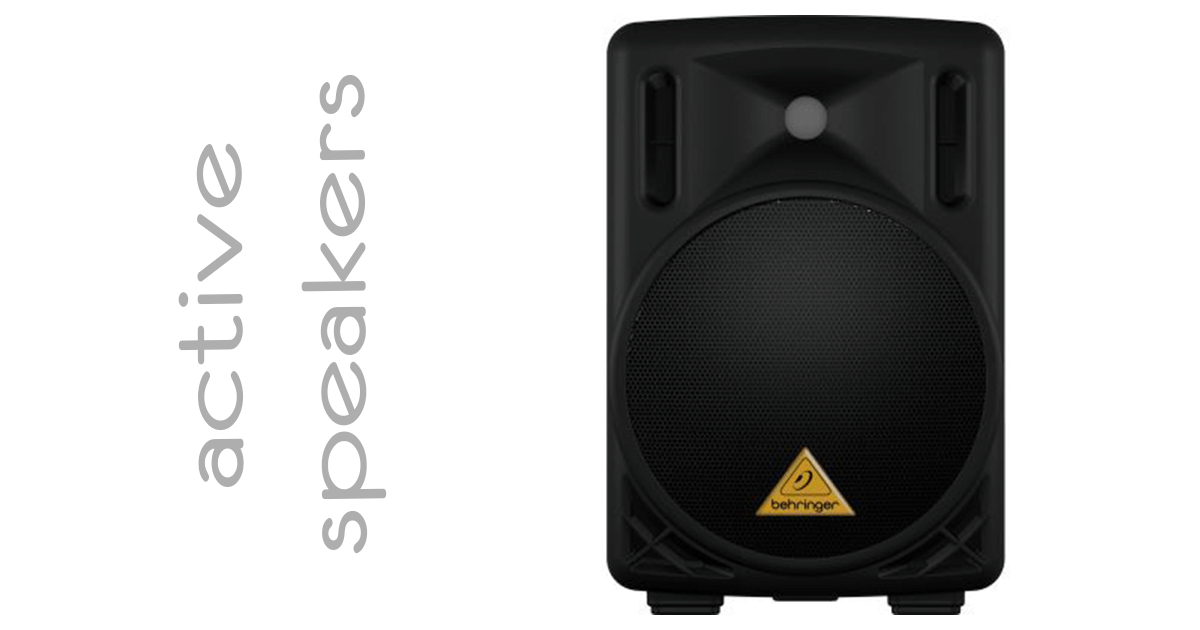

The Behringer B208D features a 1.35" compression driver and 8" cone woofer to deliver wide frequency response from 65Hz to 20kHz. It's dual digital power amplifiers and built in active 2.4 kHz crossover deliver a powerful 35 watts continuous (42 watts peak) for high frequencies and 135 watts continuous (160 watts peak) for the woofer producing 113 dB SPL at 1m. Together you get a remarkable 202 watts peak power with one unit or 404 watts with a pair or about 119 dB SPL at 100'.
  • Light weight— only 15 pounds
  • Compact—approximately 15" high, 10" wide, 8" deep
  • Versatile— equipped with XLR in and out and a 1/4" phone jack. It's adjustable input attenuator can accept from -40dBm mic level up to +22 dBm line level signals
These can be used freestanding on the floor or a table or we can provide a speaker stand to elevate the unit up to six feet above the floor.

We provide a 25' IEC/NEMA 5-15P high current power cable and a 50' XLR style audio cable with each unit. Optionally, we can provide Phonic wireless RF links where cable routing is impossible.

We can also provide a podium with built in dual gooseneck microphones.

Behringer B208D (times 2)

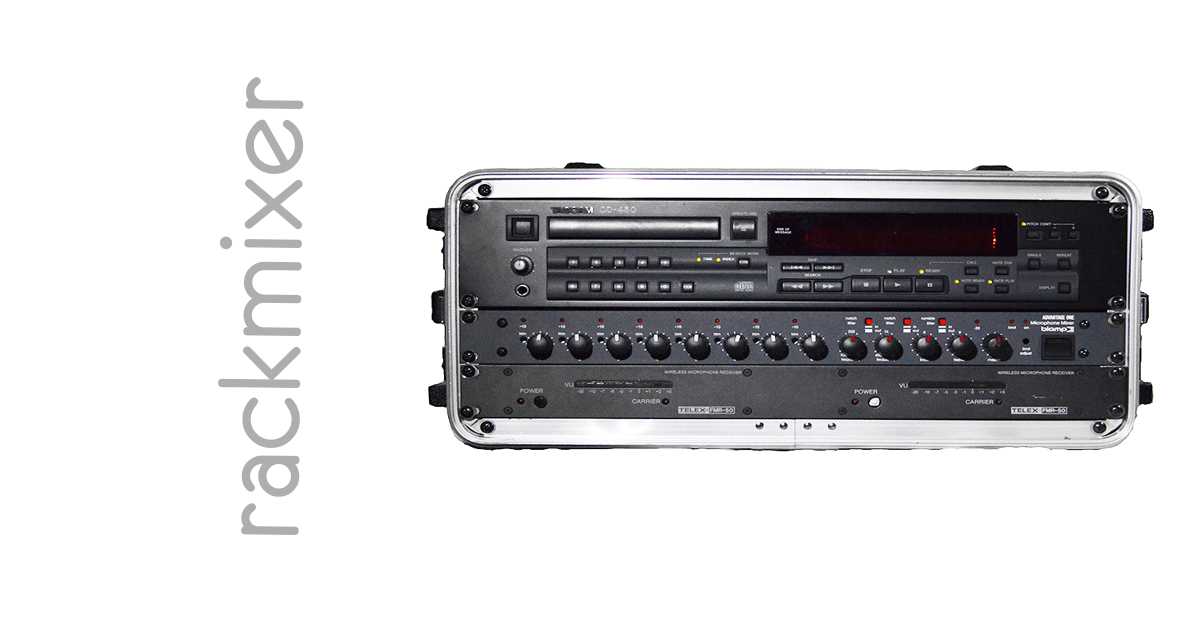

Rackmixer

Rackmixer
This powerful, yet ultra compact package includes an eight channel mixer, two Telex wireless microphones, and a Tascam CD player. It pairs nicely with a set of active speakers to meet all you audio/visual sound needs and is compatable with all of our projection gear. A perfit setup for wedding receptions or other social events, corporate meetings, teleconferences, presentations, or training.

It is provided with a 15' NEMA 5-15P high current power cable and a XLR style audio cable to connect to the active speaker system.

Biamp ADVANTAGE ONE
Telex FMR-50 (times 2)
Tascam CD-450

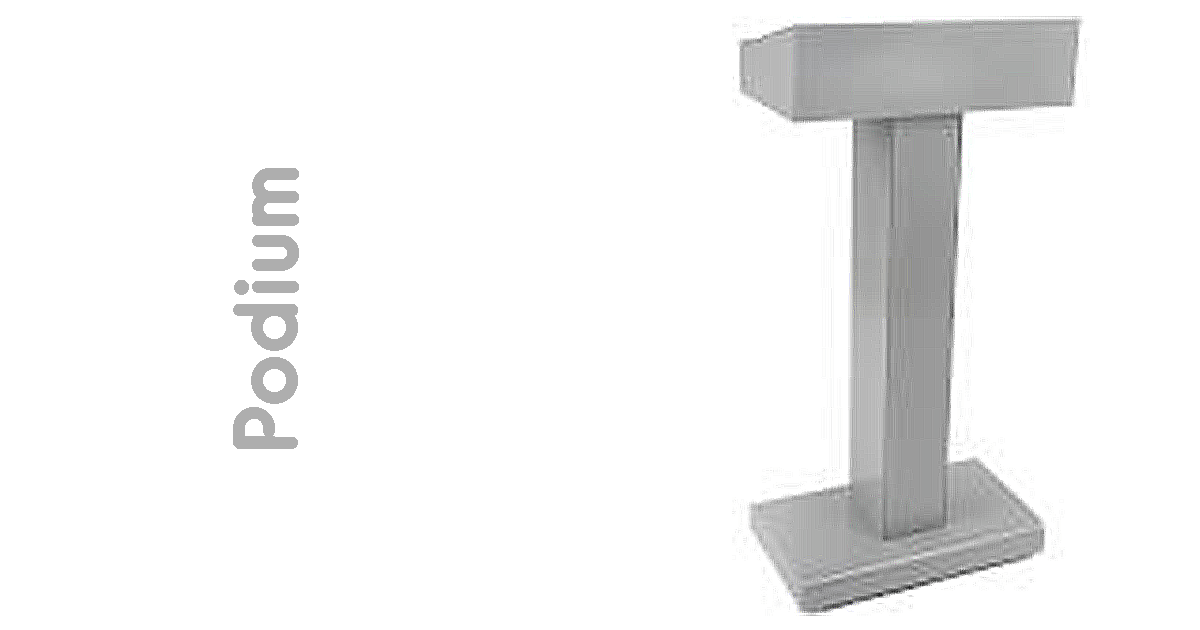

Podium

Podium
Versatile podium for presentations or lectures. Large space for speakers notes or to rest a laptop computer on for running a presentation. This podium features a built in shelf for additional materials and signage can be easily attached. Our podium has a pair of built in gooseneck condensor mics which allow the speaker extra room to move about.

Displays2Go LCTMETFSUP

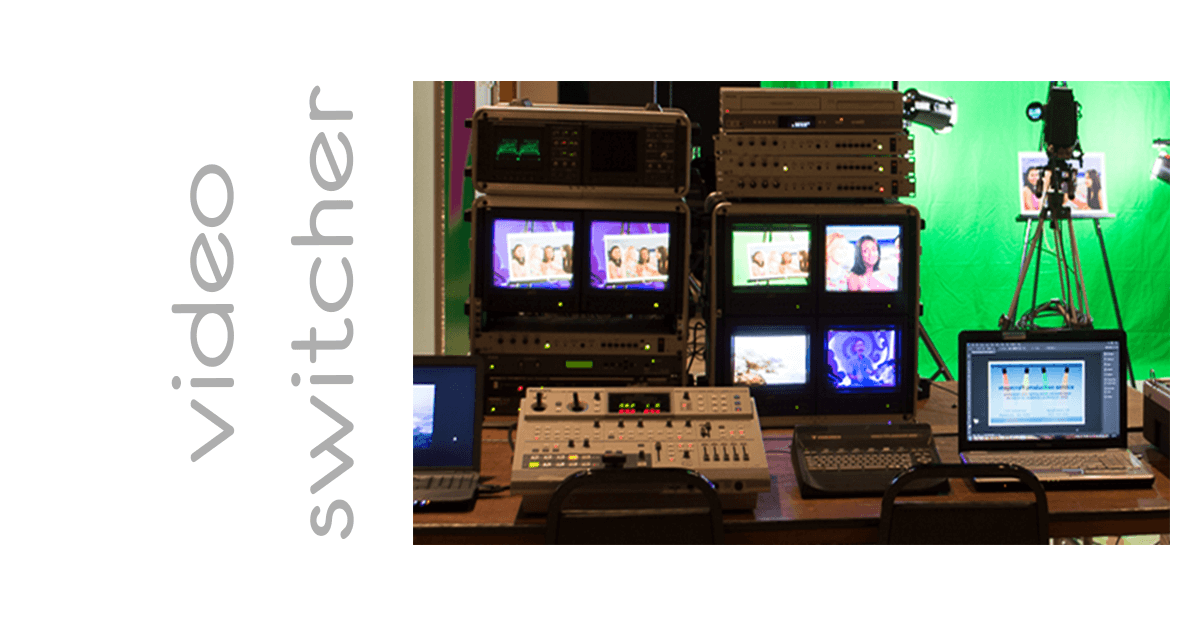

Live Video

Video Switcher
SPS can provide a complete live camera system with up to four cameras, video switcher, and control booth gear (genlock, monitors, titler, recorders, frame synchronizers, upscaler, downscaler). Typically this is used with the Proxima projectors to provide for overflow areas or for record or streaming.
