PA and SOUND REINFORCEMENT

For events, large or small, quality sound reinforcement is a vital component of overall success and Stagecraft has the right solutions to deliver the value and performance you need. We feature the Behringer line of sound reinforcement gear internationally known for quality, dependability, performance, and value. Behringer was founded by noted sound engineer Uli Behringer in Germany around 1989 and has rapidly grown to be one of the world's major international professional audio manufacturers. We've used Behringer equipment for over five years without a single failure which is truly remarkable! Presented below are a few of many possible configurations we can provide for you. Just pair the speaker system with a Front of House system for a complete solution.

Compact Systems

Compact Systems
Compact systems are perfect for wedding receptions, corporate meetings, training sessions, presentations, or as part of an audio/visual solution. One or two of these with a handheld, lavalier, or headset microphone may be all you need. Total system power: 404 peak watts.

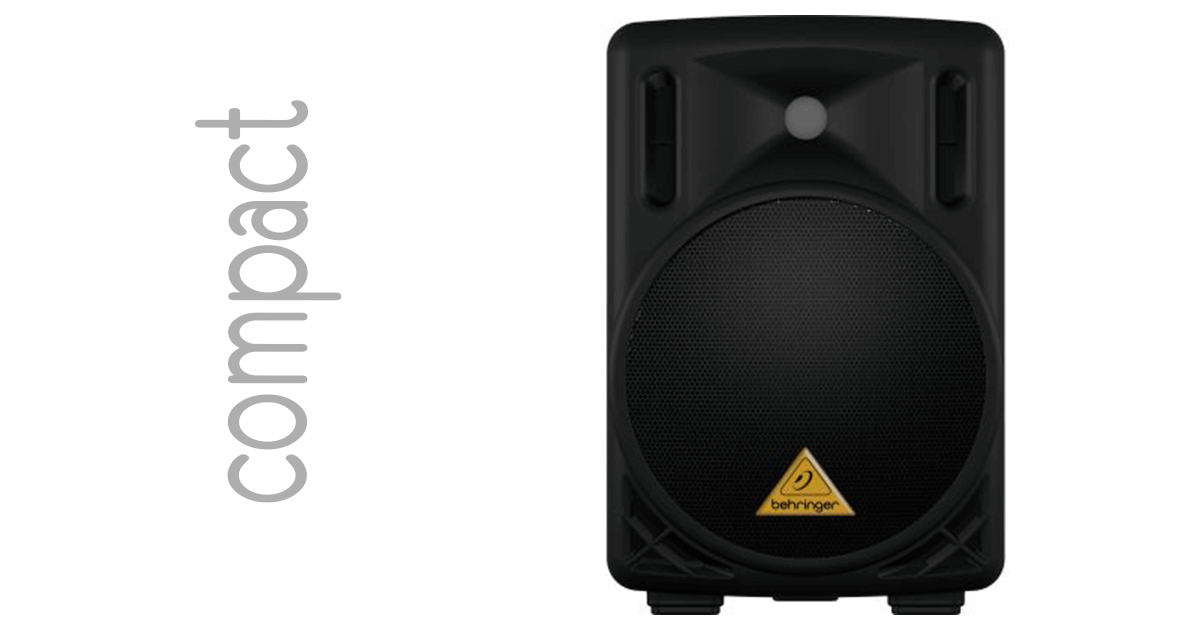

The B208D features a 1.35" compression driver and 8" cone woofer to deliver wide frequency response from 65Hz to 20kHz. It's dual digital power amplifiers and built in active 2.4 kHz crossover deliver a powerful 35 watts continuous (42 watts peak) for high frequencies and 135 watts continuous (160 watts peak) for the woofer producing 113 dB SPL at 1m. Together you get a remarkable 202 watts peak power with one unit or 404 watts with a pair or about 119 dB SPL at 100'.
  • Light weight— only 15 pounds
  • Compact—approximately 15" high, 10" wide, 8" deep
  • Versatile— equipped with XLR in and out and a 1/4" phone jack. It's adjustable input attenuator can accept from -40dBm mic level up to +22 dBm line level signals
These can be used freestanding on the floor or a table or we can provide a speaker stand to elevate the unit up to six feet above the floor.

We provide a 25' IEC/NEMA 5-15P high current power cable and a 50' XLR style audio cable with each unit. Optionally, we can provide Phonic wireless RF links where cable routing is impossible.

We can also provide a podium with built in dual gooseneck microphones.

Behringer B208D (times 2)

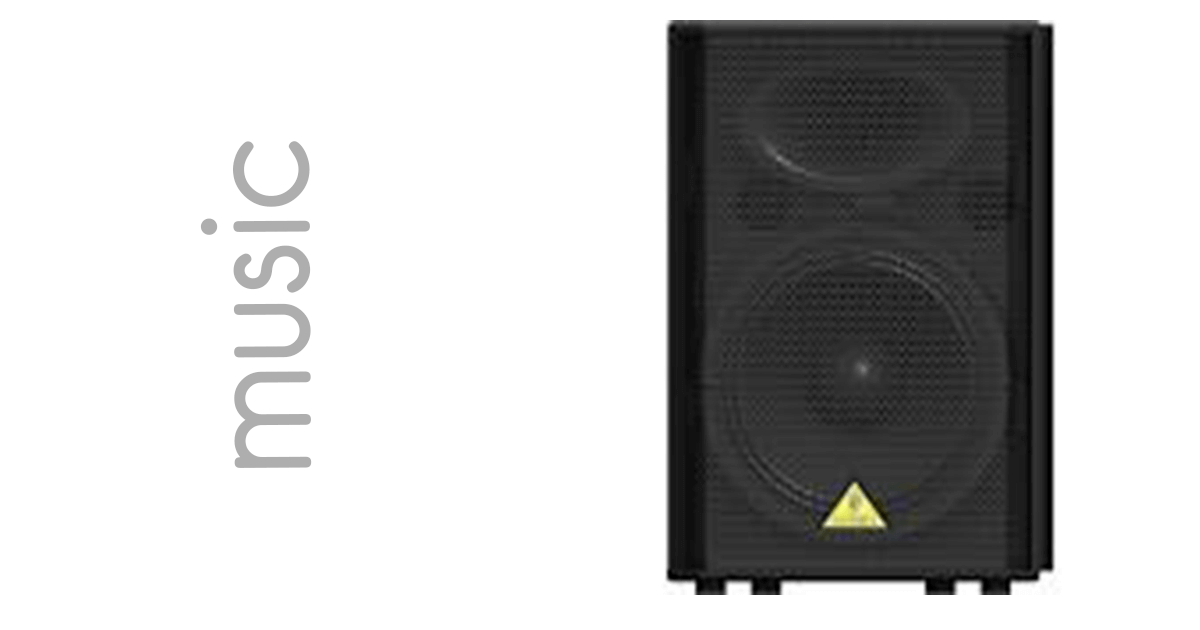

Music Playback System

Music Systems
Music playback or small (solo, duo, trio) performance acts need more performance than compact systems can deliver. A pair of VP1520Ds along with a small mixer system, CD player, or PC based DJ or presentation system can solve this challenge. Total system power: 1100 peak watts.

The VP1520D features a 1.75" compression driver and 15" cone woofer to deliver wide frequency response from 50Hz to 20kHz. It's dual digital power amplifiers and built in active 2.5kHz crossover deliver a powerful 65 watts continuous (100 watts peak) for high frequencies and 280 watts continuous (450 watts peak) for the woofer to deliver 119 Db SPL at 1m. A pair of these deliver 1100 watts peak power, approximately 125 dB SPL @ 100'.
  • Medium weight— only 55 pounds each cabinet
  • Dimensions—approximately 27" high, 18" wide, 18" deep, wedge shaped
  • Versatile— equipped with XLR in and out and a 1/4" phone jack. It's adjustable input attenuator can accept from -40dBm mic level up to +22 dBm line level signals
These can be used freestanding on the floor or a table or we can provide a speaker stand to elevate the unit up to six feet above the floor. These can also be flipped and flown from the ceiling in some situations.

We provide a 25' IEC/NEMA 5-15P high current power cable and a 50' XLR style audio cable with each unit. Optionally, we can provide Phonic wireless RF links where cable routing is impossible.

Behringer VP1520D (times 2)

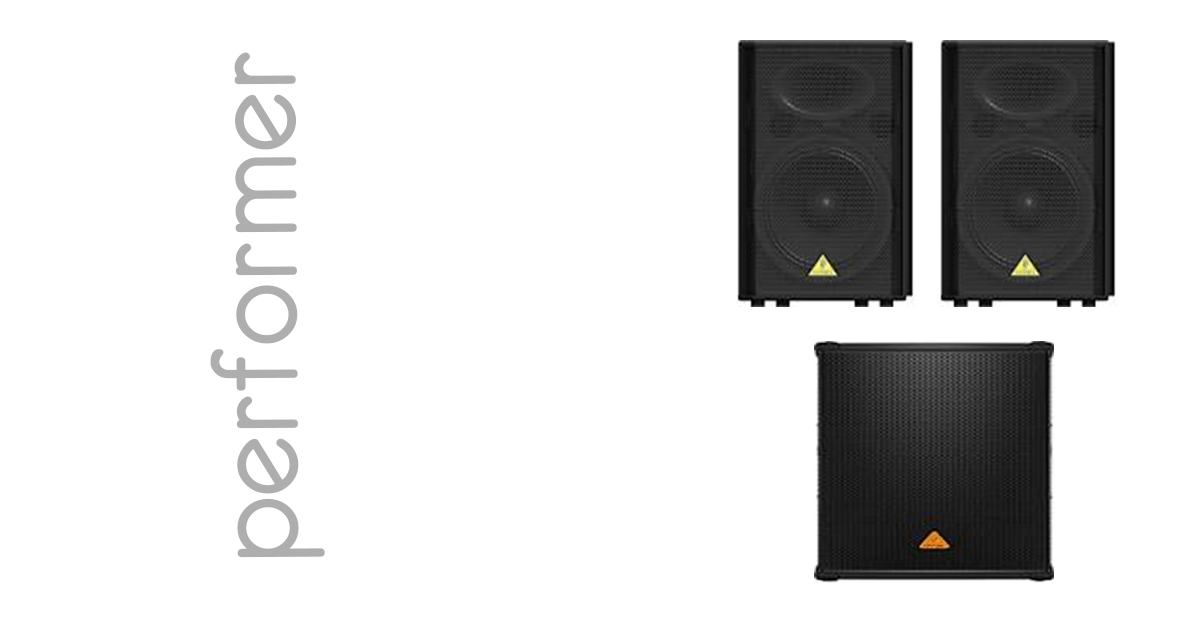

Performer Systems

performer sound system
Indoor group performances (four+) performance acts typically need more performance than simpler music systems can deliver. Two pairs of VP1520Ds, a pair of B1800Ds along with a meduium or larger mixer system can tackle this one. Total system power: 5000 peak watts.

The VP1520D features a 1.75" compression driver and 15" cone woofer to deliver wide frequency response from 50Hz to 20kHz. It's dual digital power amplifiers and built in active 2.5kHz crossover deliver a powerful 65 watts continuous (100 watts peak) for high frequencies and 280 watts continuous (450 watts peak) for the woofer to deliver 119 Db SPL at 1m. Two pairs of these deliver 2200 watts peak power, approximately 128 dB SPL @ 100'.
  • Medium weight— only 55 pounds each cabinet
  • Dimensions—approximately 27" high, 18" wide, 18" deep, wedge shaped
  • Versatile— equipped with XLR in and out and a 1/4" phone jack. It's adjustable input attenuator can accept from -40dBm mic level up to +22 dBm line level signals
The B1800D features a single 18" cone woofer to deliver deep frequency response from 20Hz to 200Hz. It's single digital power amplifier and built in active 150 Hz crossover deliver 1000 watts continuous (1400 watts peak) for the woofer to deliver 130 Db SPL at 1m. A pair of these deliver 2800 watts peak power, approximately 128 dB SPL @ 100'.
  • Heavy weight— 84 pounds each cabinet
  • Dimensions—approximately 28" high, 22" wide, 21" deep, wedge shaped
  • Versatile— equipped with XLR in and out. It's adjustable input attenuator can accept from -40dBm mic level up to +22 dBm line level signals
  • Equipped with XLR output to feed the VP1520Ds with filtered signal. Stripping the below 150 hZ component significantly improves the output at the higher frequencies.
These can be stacked either without or with a riser or we can provide speaker stands to elevate the V1520s up to six feet above the floor. The B1800Ds are mounted on caster plates and need to be on the floor for best results.

We provide 25' IEC/NEMA 5-15P high current power cables and all XLR style audio cables needed.

Behringer V1520D (times 4)
Behringer B1800D (times 2)

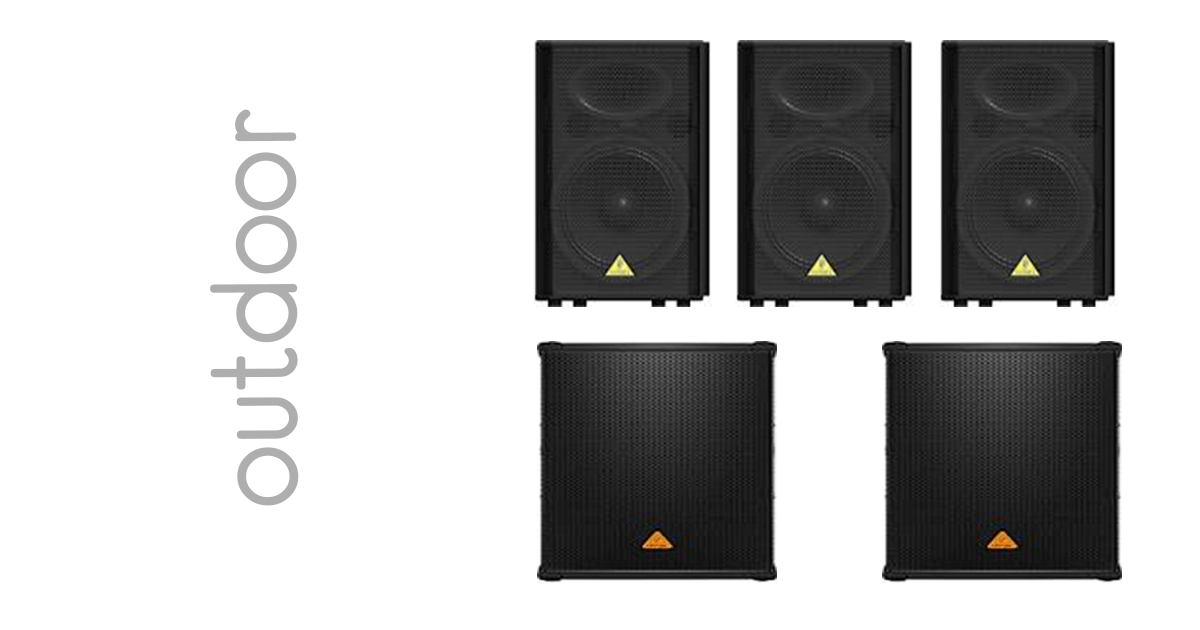

Outdoor Sound Systems

outdoor sound systems
Outdoor group performances (four+) performance acts always need more performance than indoor systems do. Three pairs of VP1520Ds, a two pairs of B1800Ds along with a meduium or larger mixer system is the answer here. Total system power: 8900 peak watts.

The VP1520D features a 1.75" compression driver and 15" cone woofer to deliver wide frequency response from 50Hz to 20kHz. It's dual digital power amplifiers and built in active 2.5kHz crossover deliver a powerful 65 watts continuous (100 watts peak) for high frequencies and 280 watts continuous (450 watts peak) for the woofer to deliver 119 Db SPL at 1m. Three pairs of these deliver 3300 watts peak power, approximately 128 dB SPL @ 100'.
  • Medium weight— only 55 pounds each cabinet
  • Dimensions—approximately 27" high, 18" wide, 18" deep, wedge shaped
  • Versatile— equipped with XLR in and out and a 1/4" phone jack. It's adjustable input attenuator can accept from -40dBm mic level up to +22 dBm line level signals
The B1800D features a single 18" cone woofer to deliver deep frequency response from 20Hz to 200Hz. It's single digital power amplifier and built in active 150 Hz crossover deliver 1000 watts continuous (1400 watts peak) for the woofer to deliver 130 Db SPL at 1m. Two pairs of these deliver 5600 watts peak power, approximately 128 dB SPL @ 100'.
  • Heavy weight— 84 pounds each cabinet
  • Dimensions—approximately 28" high, 22" wide, 21" deep, wedge shaped
  • Versatile— equipped with XLR in and out. It's adjustable input attenuator can accept from -40dBm mic level up to +22 dBm line level signals
  • Equipped with XLR output to feed the VP1520Ds with filtered signal. Stripping the below 150 hZ component significantly improves the output at the higher frequencies.
For outdoor systems, we normally provide steel scaffolding to support the speakers and elevate the stacks to optimal height.

We provide 25' IEC/NEMA 5-15P high current power cables and all XLR style audio cables needed.

Stagecraft also has larger 'arena' style systems, too.

Behringer V1520D (times 6)
Behringer B1800D (times 4)

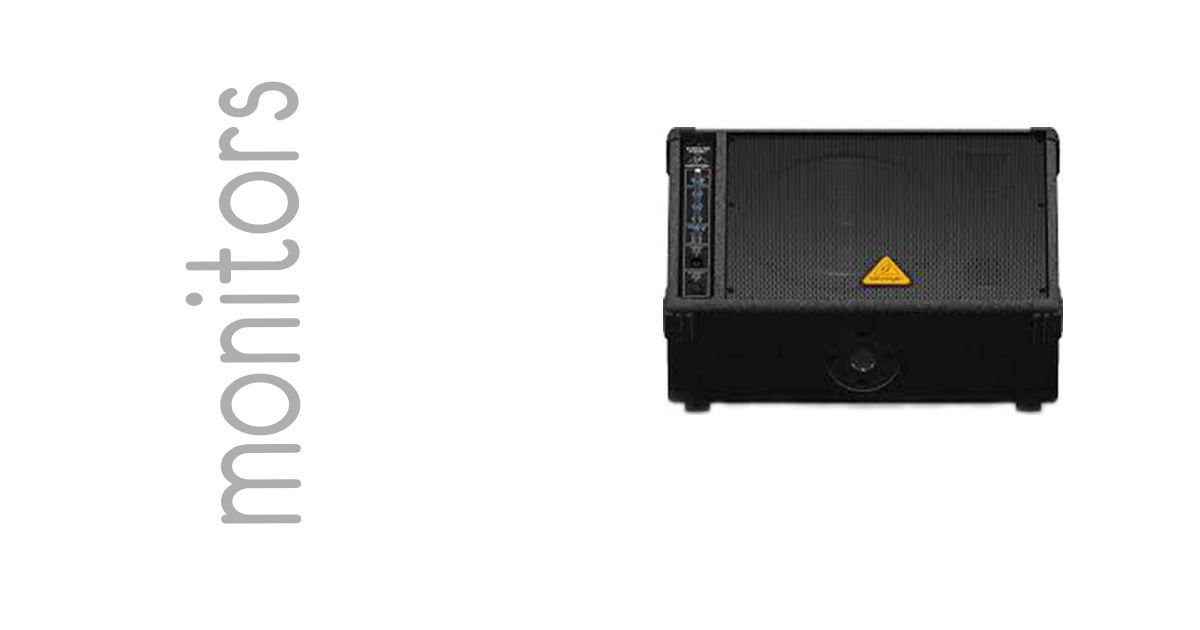

Stage Monitors

stage monitors
Onstage performers have to be able to accurately hear what's going on around them and often depend on floor monitors for this. The Behringer F1320D is a powerful unit that gets the job done. These have several unique features including local control of volume and tone plus built in feedback suppression and audio limiter which can, in our experience, increase actual levels 3 to 6 db compared to many other similar units without squealing.

These are active two way systems with 300 watts of digital power to provide exceptional sound quality, ultra low noise, wide frequency response, and dynamic range. Each monitor is equipped with a 12" long excursion woofer producing incredible deep bass and accoustic power along with and a 1" compression horn for crisp, clear, and powerful high end performance. Approximate weight: 40 pounds. Dimensions: approximately 14" high, 23" wide, and 16" deep.

These are extremely versatile units and can be used as small PA systems with built in pole mount or as on stage instrument amps. They also work great as a general purpose audio/visual sound source with projectors and screens or background music.

We provide a 25' IEC/NEMA 5-15P high current power cable and a XLR style audio cable with each unit.

Behringer F1320D

Front of House and Stage Gear...

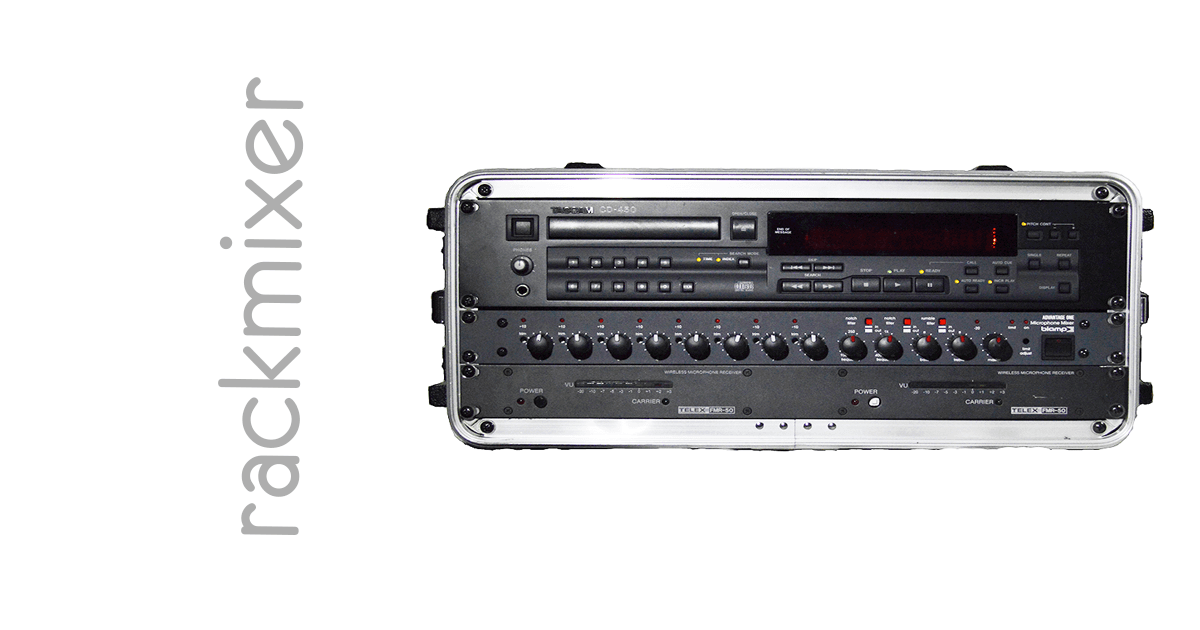

Rackmixer

Rackmixer
This ultra compact package includes an eight channel mixer, two Telex wireless microphones, and a Tascam CD player. It can drive any of our systems with ease and is all you need for simple requirements. Combine with our wireless rack or a wired podium or tie in a HD projector if you need. Rackmixers pair perfectly with either compact or music systems for wedding receptions or other social events, corporate meetings, teleconferences, presentations, or training.

It is provided with a 15' NEMA 5-15P high current power cable and a XLR style audio cable to connect to the speaker system.

Biamp ADVANTAGE ONE
Telex FMR-50 (times 2)
Tascam CD-450

Wireless Systems

Wireless Systems

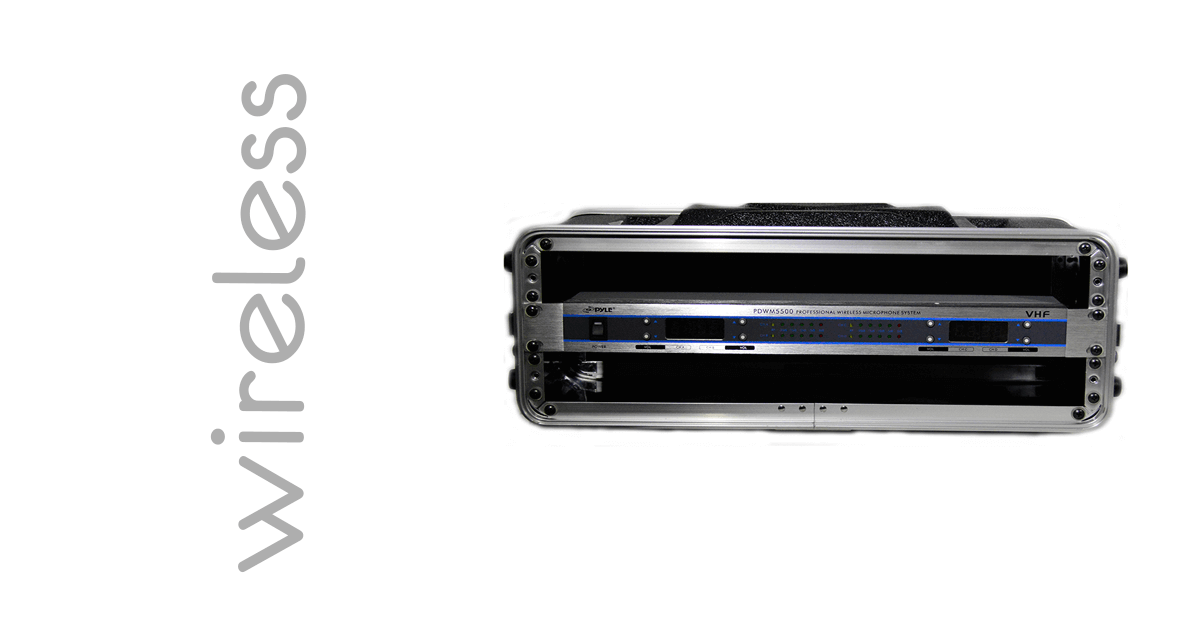

This is a complete packaged VHF wireless microphone system with up to four handheld mics. This is perfect for panel discussions or smaller vocal groups who like to move around the space.
It is provided with a 6' NEMA 5-15P power cable and a XLR style audio cable to connect to the speaker system or rack mixer.

Pyle PDWM5500

Small Console Systems

r

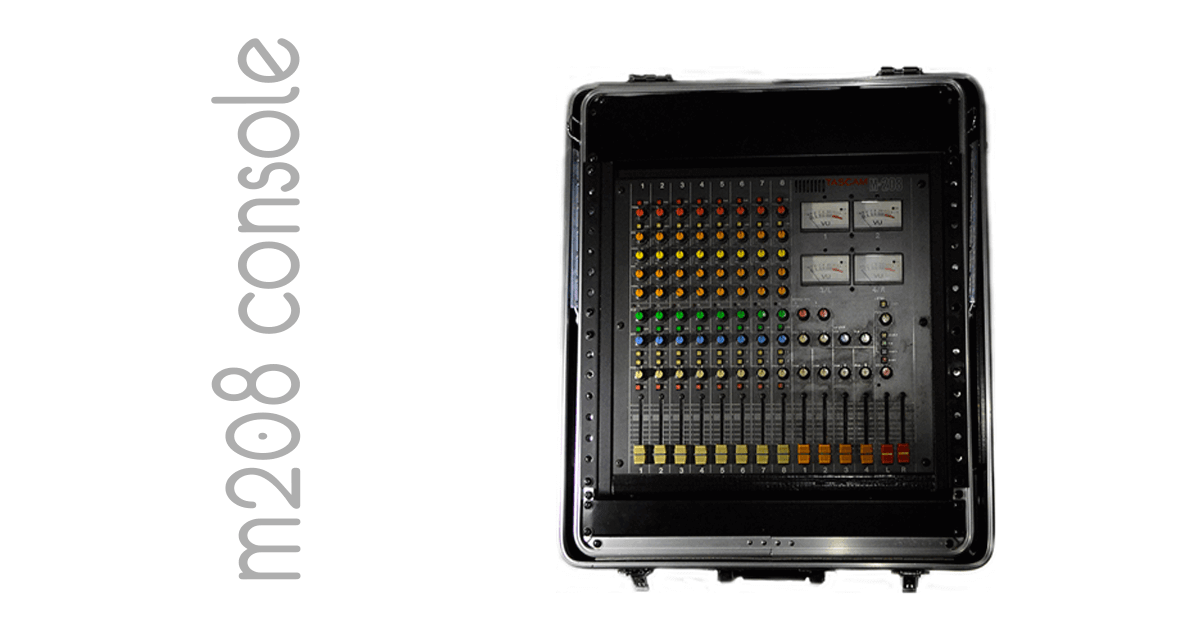

Tascam M208
We use the venerable Tascam M-208 for small console jobs because of it's clean sound, ease of use, and reliabilty. This is an ideal system for solo, duet, or trio performing groups without a drum kit. This console provides up to eight input channels, four submixes, two output mixes, effects send with dual returns, and one stage monitor send which makes it ultra flexible.
Each channel features following controls:
  • Overload Indicator (red light)
  • Input attenuator (red button)
  • Input level (red knob)
  • Sweep midrange control (yellow Knob)
  • Three band equalizer(orange knobs)
  • Monitor Level (green knob)
  • Effects Level (blue knob)
  • Submix Selection (tan buttons)
  • Pan control (tan knob)
  • Solo button (red button)
  • Volume fader (tan slider)
and has XLR and phone jack inputs and channel insert.

Stagecraft provides a 130' eight channel snake, if needed, all direct boxes, microphones, stands, cables, and accesories for up to eight inputs for a complete set up. We also provide an auxiliary periherial rack with power conditioner, equilizer, and digital delay (reverb) devices. The console is equipped with a 6' NEMA 1-15P power cable, the rack has a 15' NEMA 5-15P power cable.

Tascam M208

Medium Console Systems

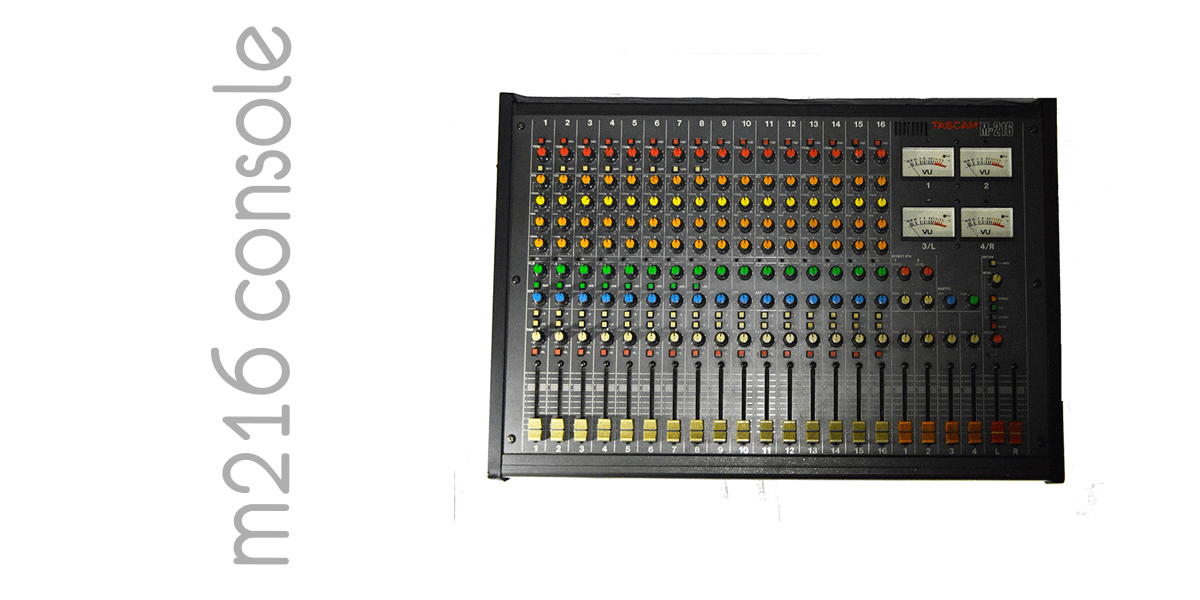

Tascam M216
We use the venerable Tascam M-216 for medium console jobs because of it's clean sound, ease of use, and reliabilty. This is a great system for bands of four or more musicians with a standard drum kit. This console provides up to sixteen input channels, four submixes, two output mixes, effects send with dual returns, and one stage monitor send which makes it ultra flexible.
Each channel features following controls:
  • Overload Indicator (red light)
  • Input attenuator (red button)
  • Input level (red knob)
  • Sweep midrange control (yellow Knob)
  • Three band equalizer(orange knobs)
  • Monitor Level (green knob)
  • Effects Level (blue knob)
  • Submix Selection (tan buttons)
  • Pan control (tan knob)
  • Solo button (red button)
  • Volume fader (tan slider)
and has XLR and phone jack inputs and channel insert.

Stagecraft provides a 130' sixteen channel snake, if needed, all direct boxes, microphones, stands, cables, and accesories for up to sixteen inputs for a complete set up. We also provide an auxiliary periherial rack with power conditioner, equilizer, and digital delay (reverb) devices. The console is equipped with a 6' NEMA 1-15P power cable, the rack has a 15' NEMA 5-15P power cable.

Tascam M216

Large Console Systems

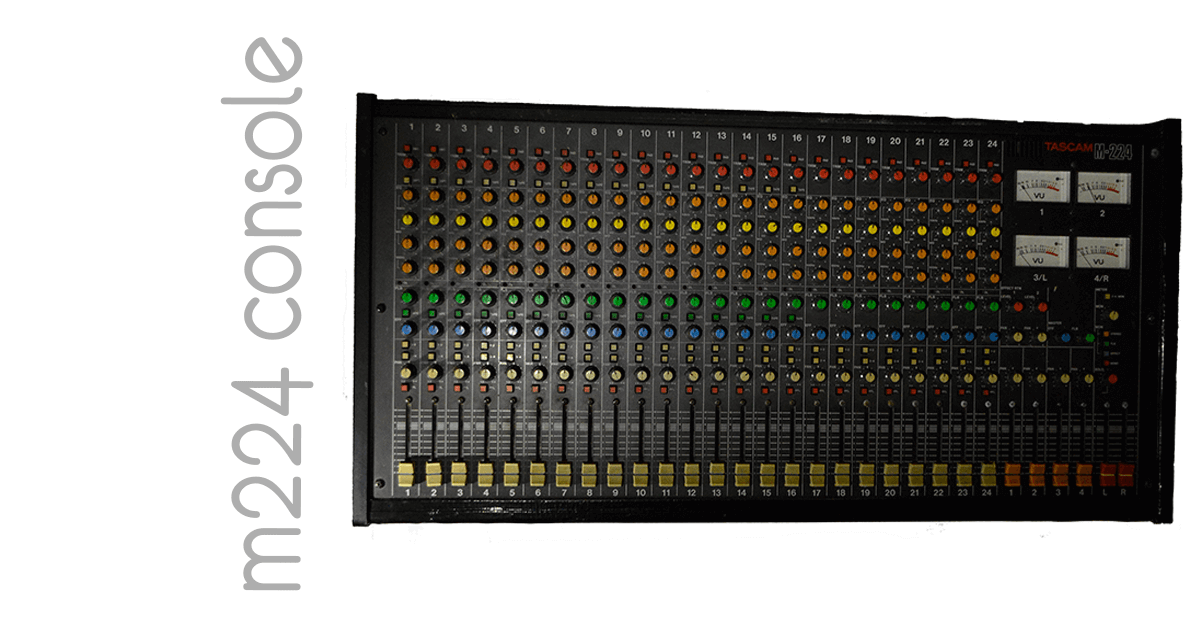

Tascam M224
We use the venerable Tascam M-224 for large console jobs because of it's clean sound, ease of use, and reliabilty. Performing groups of four or more with an extra large drumkit will find this system suitable. This console provides up to twenty-four input channels, four submixes, two output mixes, effects send with dual returns, and one stage monitor send which makes it ultra flexible.
Each channel features following controls:
  • Overload Indicator (red light)
  • Input attenuator (red button)
  • Input level (red knob)
  • Sweep midrange control (yellow Knob)
  • Three band equalizer(orange knobs)
  • Monitor Level (green knob)
  • Effects Level (blue knob)
  • Submix Selection (tan buttons)
  • Pan control (tan knob)
  • Solo button (red button)
  • Volume fader (tan slider)
and has XLR and phone jack inputs and channel insert.

Stagecraft provides a 130' twenty-four channel snake, if needed, all direct boxes, microphones, stands, cables, and accesories for up to twentyfour inputs for a complete set up. We also provide an auxiliary periherial rack with power conditioner, equilizer, and digital delay (reverb) devices. The console is equipped with a 6' NEMA 1-15P power cable, the rack has a 15' NEMA 5-15P power cable.

Tascam M224

The systems described above are common configurations but by no means repesent all of our capabilities. We are happy to discuss your specific requirements and quote exactly what you need.
