SCAFFOLDING

Some of the most versatile gear an event company can have is it's scaffolding. Whether it's a stage, PA towers, followspot towers, camera decks, rolling towers, or you name it, scaffolding is your go to solutions for big and tall.

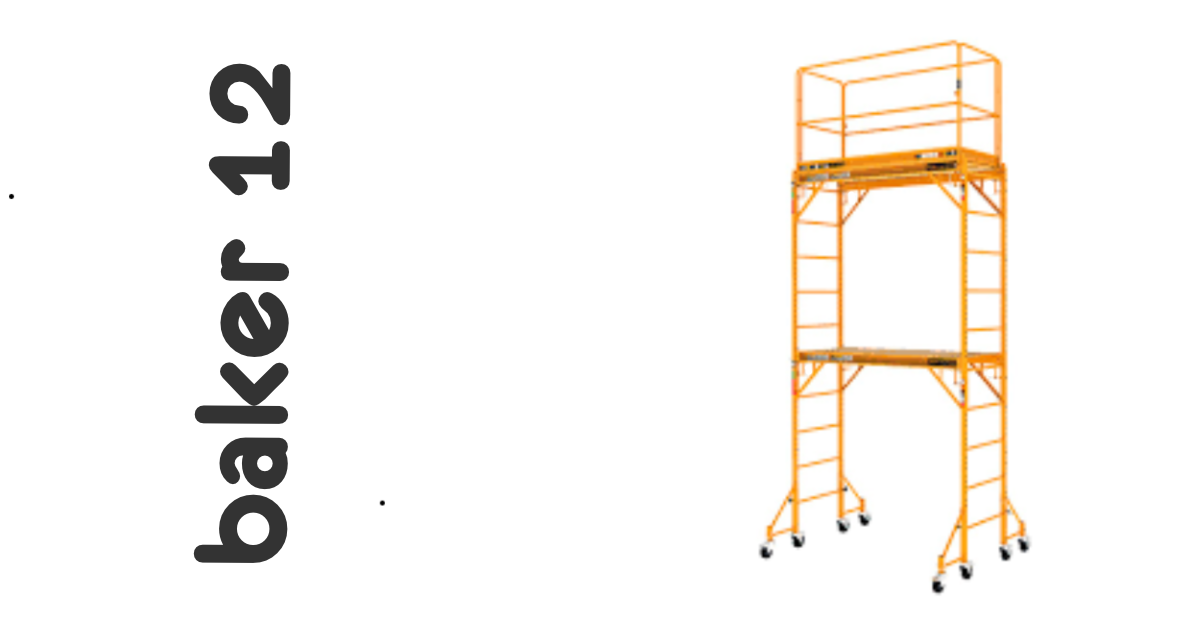

BAKER MULTI PURPOSE SCAFFOLDING

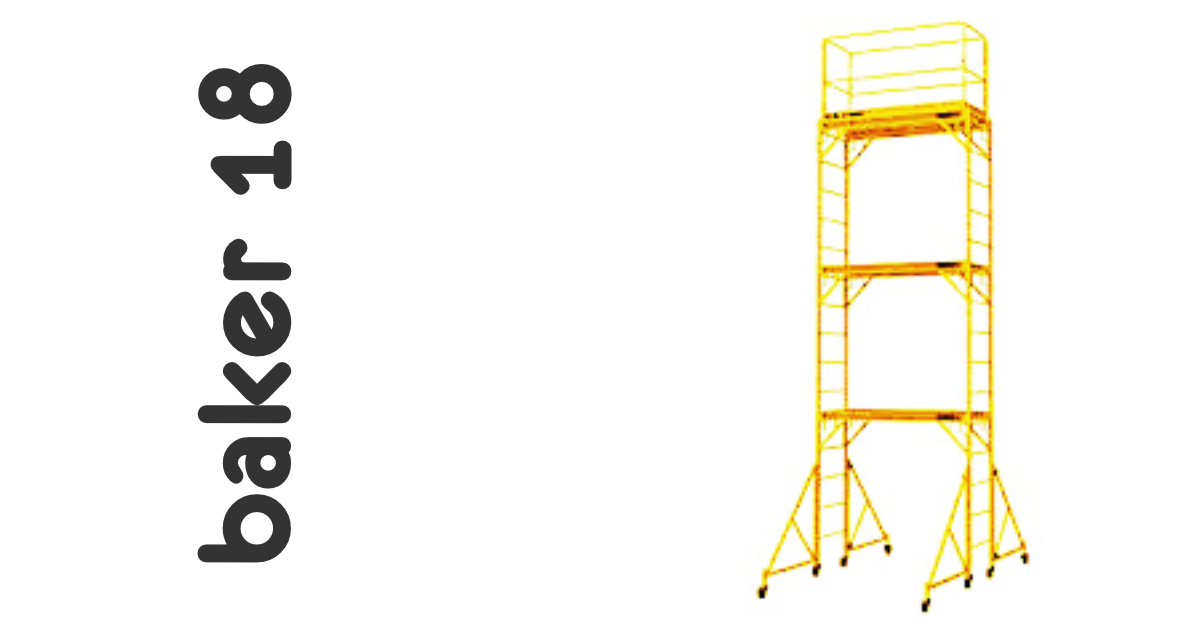

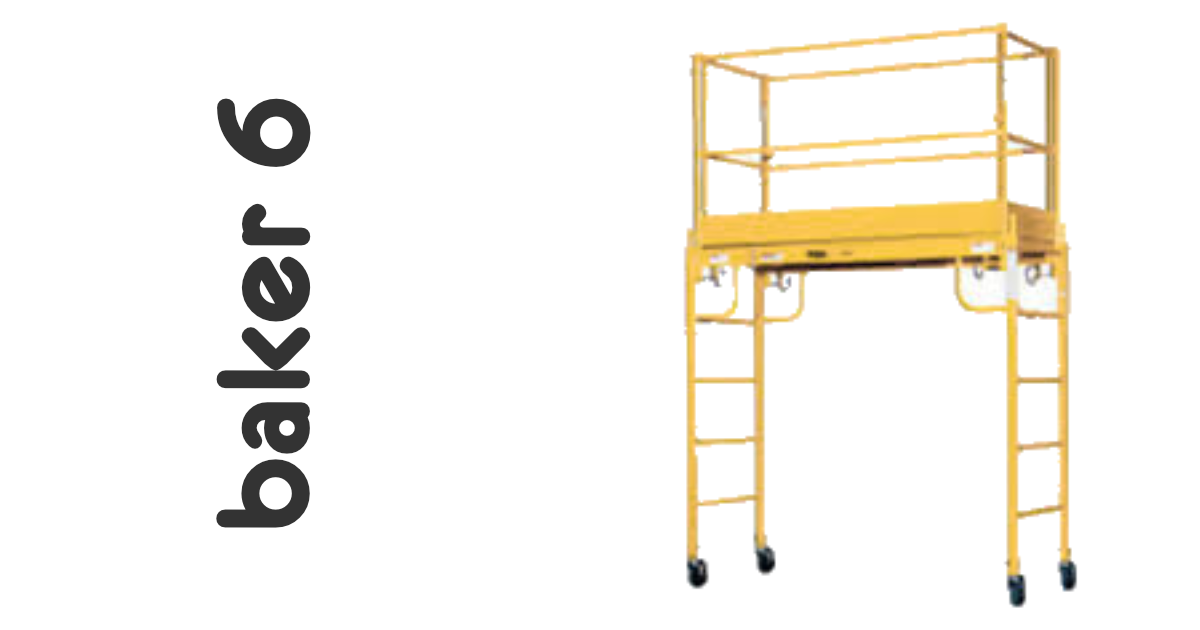

Baker Six Baker Twelve Baker Eighteen
Baker style Multi-Purpose Scaffolding is commonly used for setting up, installing, or reparing event equipment and is quite flexible and can be used as a fixed scaffold, rolling scaffold, or stairway scaffold and serves as loudspeaker cabinet racks. In addition to the basic scaffold elements, we also have trapdoor decks to move up and down inside the scaffold, outriggers to provide stability, and guardrails for safety.

Specifications:


Height: nominal 6': 75"
Height: nominal 12': 140"
Height: nominal 18': 205"
Platform increment: 2"
Pin Height: 4"

Width: 29" without outriggers (6' height)
Width: 64" with outriggers (12' height)
Width: 95" with outriggers (18' height)

Length: 74"

Weight: 130# per section
Working Load: 1000#
Titan MFS

Accessories:


Decks:


A deck consists of two trusses and one plank.
Plank: 29" X 74" available without hatch door.
Plank: 29" X 74" available with hatch door.
Titan

Casters:


(4) adds 6" to height
Titan

Guardrail:


Adds 38-1/2" to height
Fits inside the end frames and moves up and down with the deck
Weight: 60#
Titan MP-GR

Outriggers:


For 12' height: (4) 18" length, 2" width, 21" height 40# weight
For 18' height: (4) 33" length, 2" width, 34" height 50# weight
Titan MP-OUT

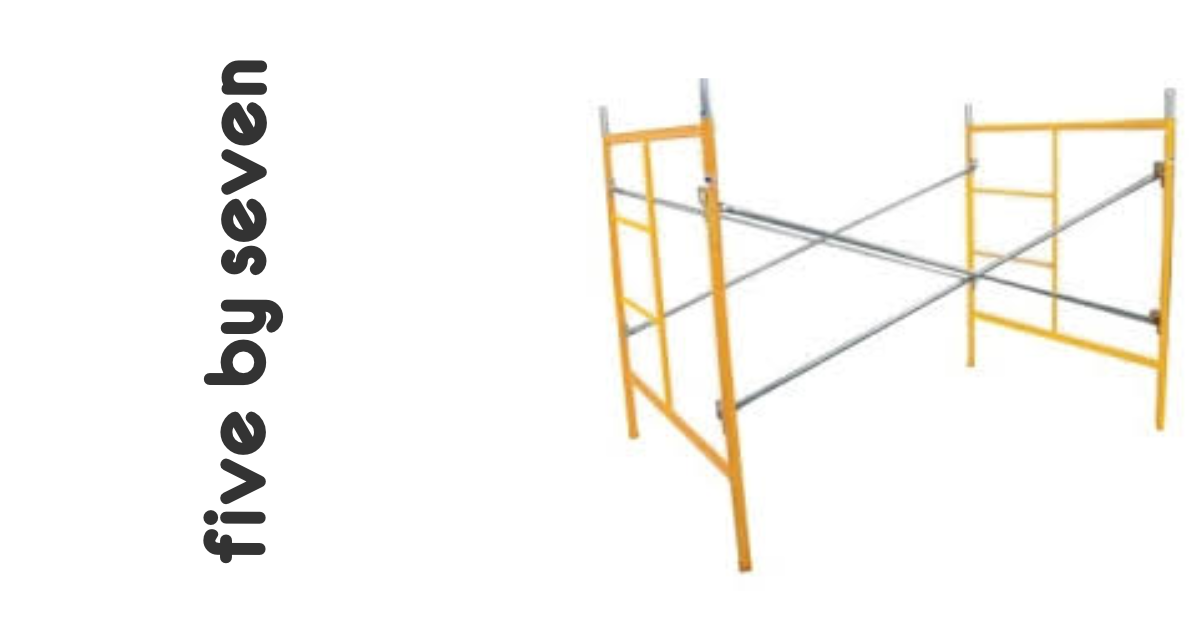

FIVE BY SEVEN SCAFFOLD SECTION

Titan LF5Y 5X7 Scaffold
We use standard 5X7 scaffolding for supporting high stages from 5' to 6' in height and for speaker towers. Features C-Lock pin locks for safety.

Specifications:
Width: 60" (5'-0")
Height: 60" (5'-0")
Length: 84" (7'-0")
Tubing Size: 1-11/16" Diameter
C-Lock Pin Spacing: 48" (4'-0")
Color: Yellow
Weight: One Complete Section: 102#

Parts per Section:
(2) Frames (60" X 60", Weight: 35#) Titan LF5
(2) Braces (96-3/4" Long, Weight: 12#) Titan B74
(4) Coupler Pins (Weight: 1#) Titan CP-SW
(4) Spring Retainers Weight: 1#) Titan SPR

One Complete 5X7 Scaffolding Section
Titan LF5Y

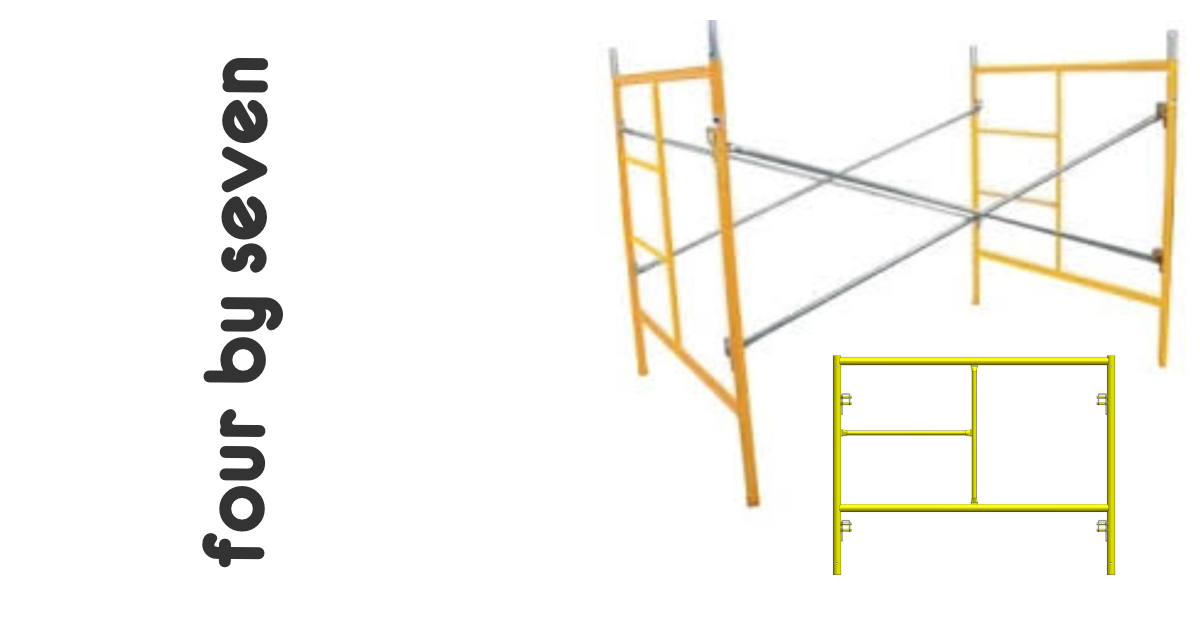

FOUR BY SEVEN SCAFFOLD SECTION

Titan LF4Y 4X7 Scaffold
We have standard 4X7 scaffolding for followspot and camera platforms. Features C-Lock pin locks for safety.
Specifications:

Width: 60" (5'-0")
Height: 48" (4'-0")
Length: 84" (7'-0")
Tubing Size: 1-11/16" Diameter
C-Lock Pin Spacing: 36" (3'-0")
Color: Yellow
Weight: One Complete Section: 90#

Parts per Section:
(2) Frames (48" X 60", Weight: 35#) Titan LF4
(2) Braces (94-3/8" Long, Weight: 12#) Titan B73
(4) Coupler Pins (Weight: 1#) Titan CP-SW
(4) Spring Retainers Weight: 1#) Titan SPR

One Complete 4X7 Scaffolding Section Titan LF4Y

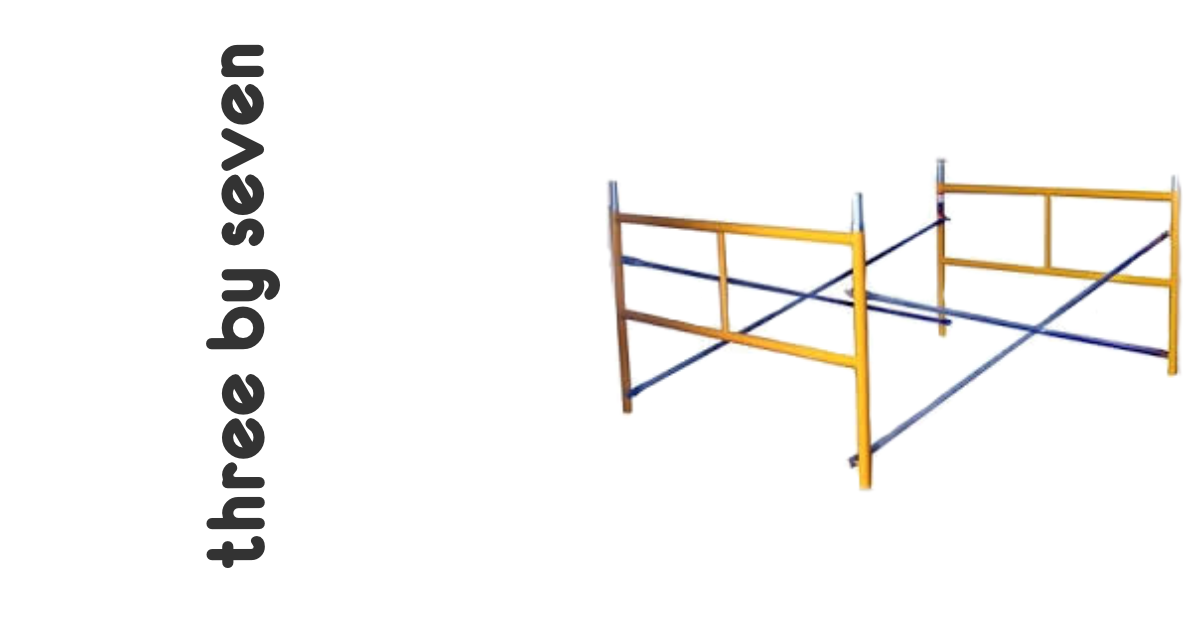

THREE BY SEVEN SCAFFOLD SECTION

Alt Text
We use standard 3X7 scaffolding for supporting low stages from 3' to 4' in height. Features C-Lock pin locks for safety.
Specifications:

Width: 60" (5'-0")
Height: 36" (3'-0")
Length: 84" (7'-0")
Tubing Size: 1-11/16" Diameter
C-Lock Pin Spacing: 24" (2'-0")
Color: Yellow
Weight: One Complete Section: 78#

Parts per Section:
(2) Frames (36" X 60", Weight: 35#) Titan LF3
(2) Braces (87-3/8" Long, Weight: 17#) Titan B72
(4) Coupler Pins (Weight: 1#) Titan CP-SW
(4) Spring Retainers Weight: 1#) Titan SPR

One Complete 3X7 Scaffolding Section Titan LF3Y

THREE BY TEN SCAFFOLD SECTION

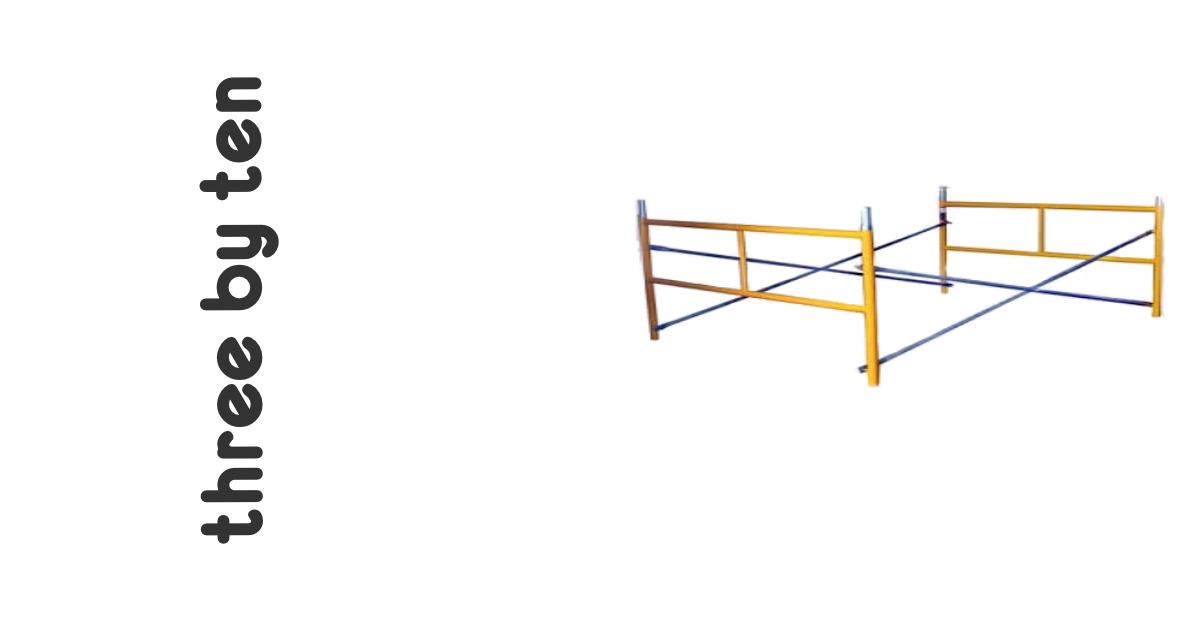

Titan LF3YL Scaffold Section
We use standard 3X10 scaffolding for supporting small stages from 3' to 4' in height with a ten foot depth using aluminum planks. This is great when quick setup and teardown is a priority. Standard pop-up canopies fit well to provide shade. Step units can be provided for easy access. Features C-Lock pin locks for safety.
Specifications:

Width: 60" (5'-0")
Height: 36" (3'-0")
Length: 120" (10'-0")
Tubing Size: 1-11/16" Diameter
C-Lock Pin Spacing: 24" (2'-0")
Color: Yellow
Weight: One Complete Section: 88#

Parts per Section:
(2) Frames (36" X 60", Weight: 35#) Titan LF3
(2) Braces (129-1/4" Long, Weight: 12#) Titan B102
(4) Coupler Pins (Weight: 1#) Titan CP-SW
(4) Spring Retainers Weight: 1#) Titan SPR

One Complete 3X7 Scaffolding Section Titan LF3YL


ACCESSORIES

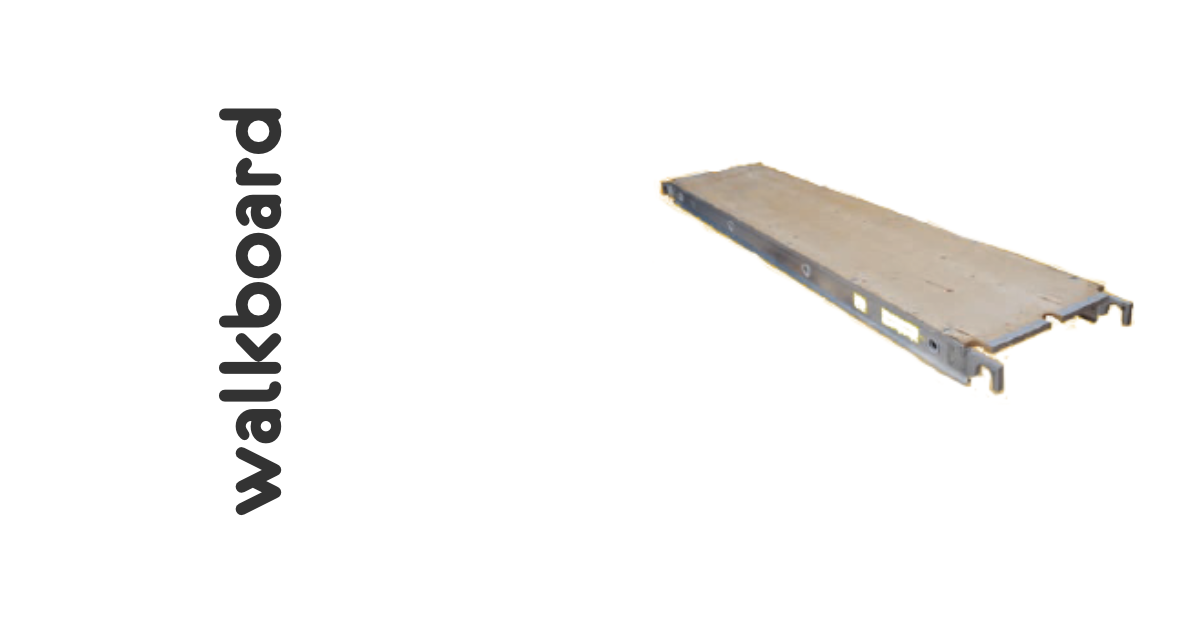

TITAN 7' WALK BOARDS

Walk Board - 7'
19" X 84" walk board with plywood top for use either on top of a section or with side brackets.
Working Load: 75# per square foot.
Weight: 30#

Titan AP-7

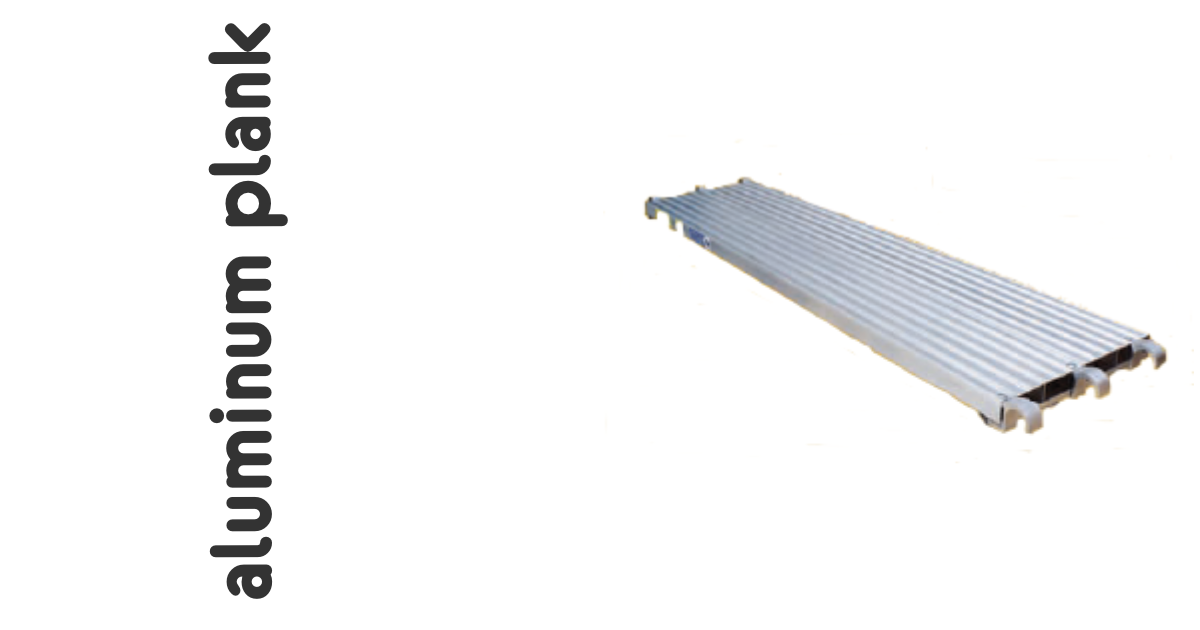

TITAN 10' ALUMINUM PLANKS

Aluminum Plank - 10'
19" X 120" aluminum plank for use either on top of a section or with side brackets.
Working Load: 50# per square foot.
Weight: 40#

Titan AP-10A

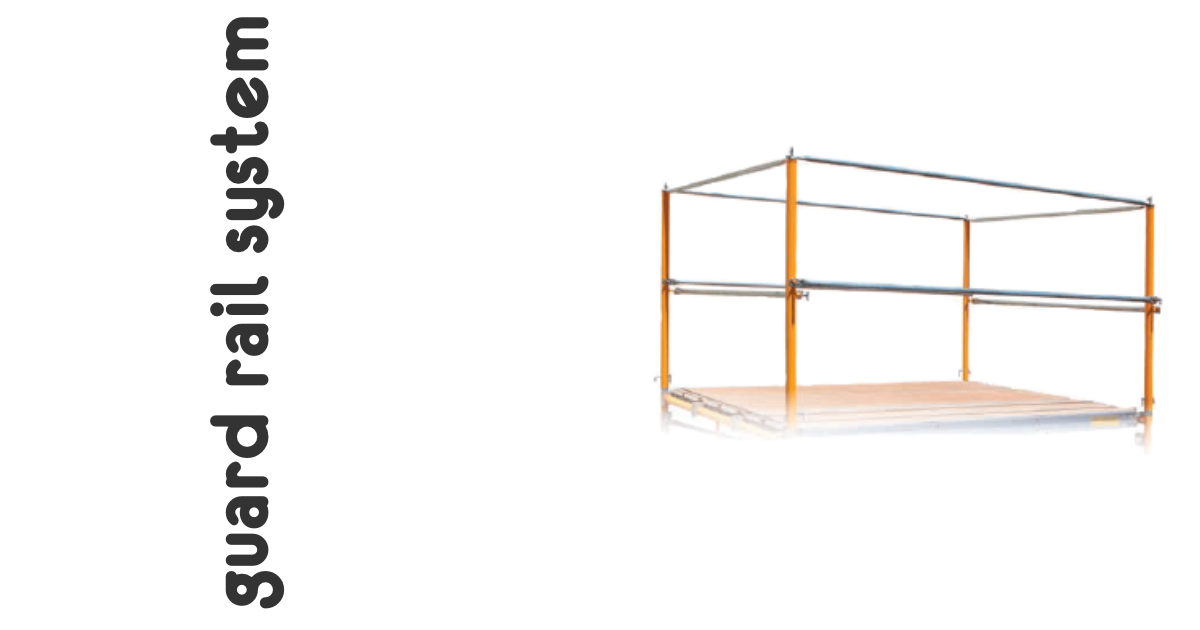

GUARD RAIL POSTS

Tital GRP Guard Rail Posts
Guard Rail Posts are used when walkboards or planks are at the top of the structure in conjunction with guard rails to provide a safe work environment and are normally used in sets of four.
Height: 44"
Weight: 9#
Color: Yellow

Titan GRP
Guard rails are used in conjunction with Guard Rail Posts. Typically, four GR-5s and four of either GR-7 or GR-10 are needed. These are galvanized steel.
GR-5 Length: 60" (5'-0") Weight: 4#
GR-7 Length: 84" (7'-0") Weight: 5#
GR-10 Length: 120" (10'-0") Weight: 11#
Titan 60" GR-5 Titan 84" GR-7 Titan 120" GR-10

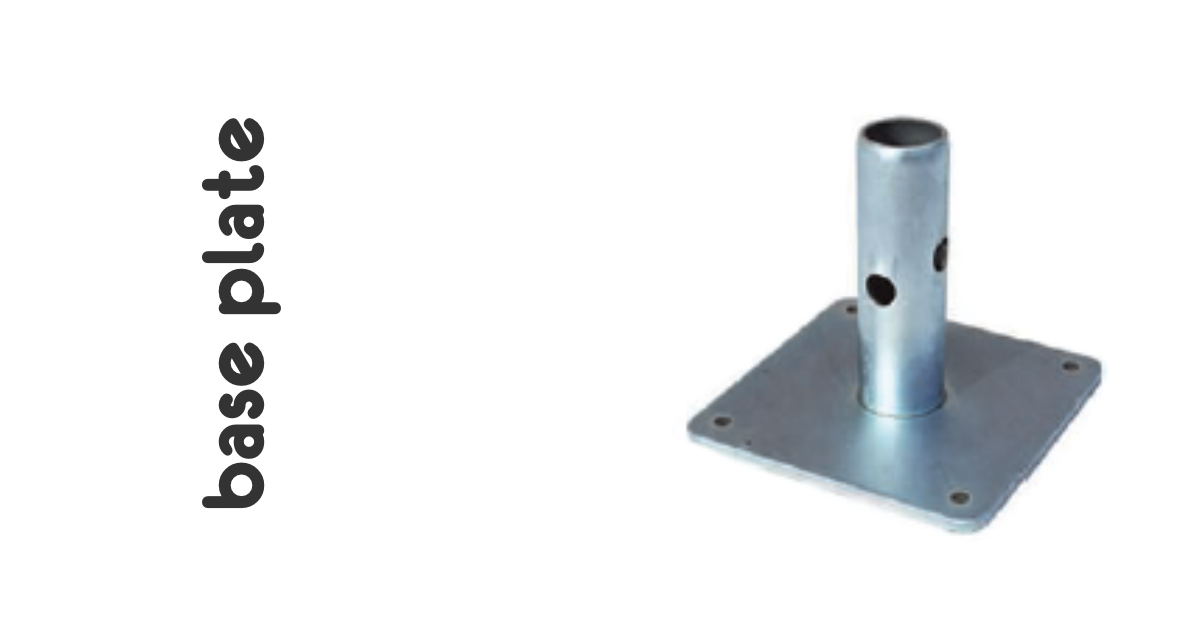

BASE PLATES

Titan BP Base Plate
Base plates provide stability and protect floors.

Titan BP

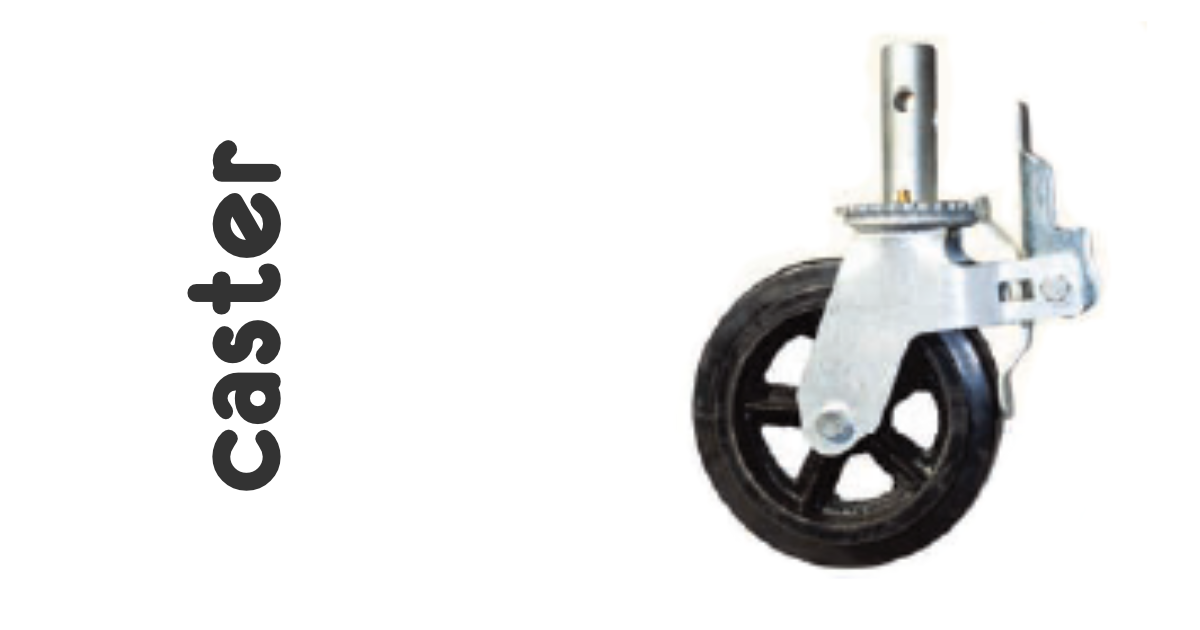

CASTERS

Titan C8 Caster
Casters are used with frames, outriggers, and leveling jacks to build rolling towers.
Shank size: 1-3/8"
Weight: 12#
Capacity: 500#
Swivel Lock: yes
Diameter: 8"

Titan C8

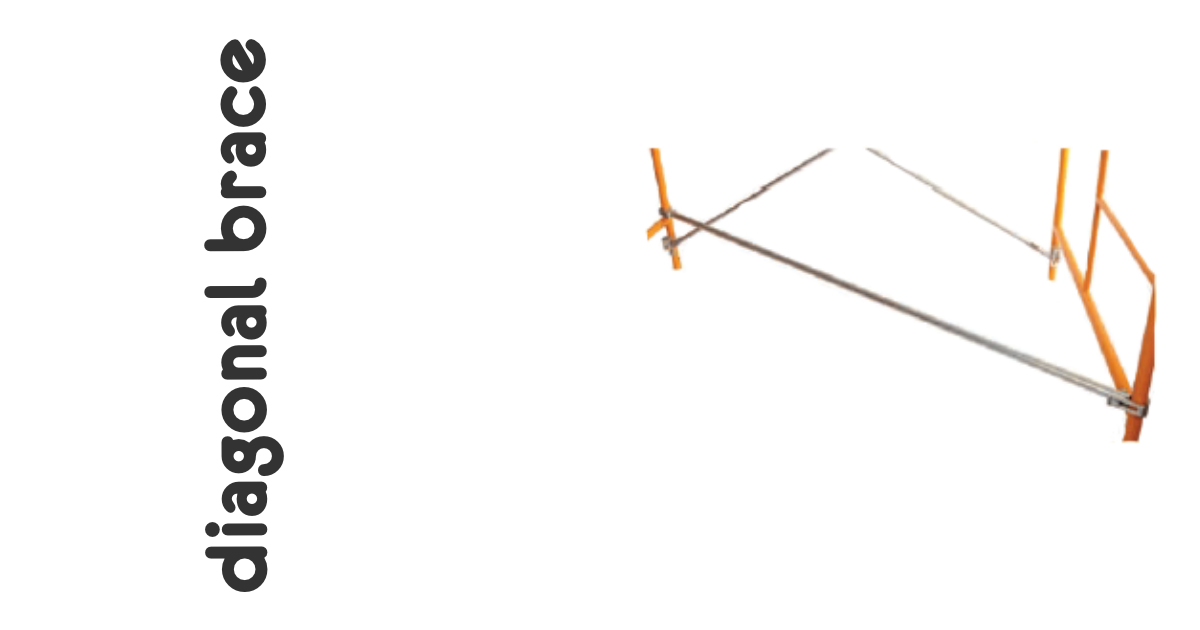

DIAGONAL BRACES

Titan D7 Diagonal Brace
Diagonal braces connect from corner to corner to keep the scaffold square. For use with five by seven, four by seven, and three by seven frames and braces only.
Weight: 14#

Titan D7

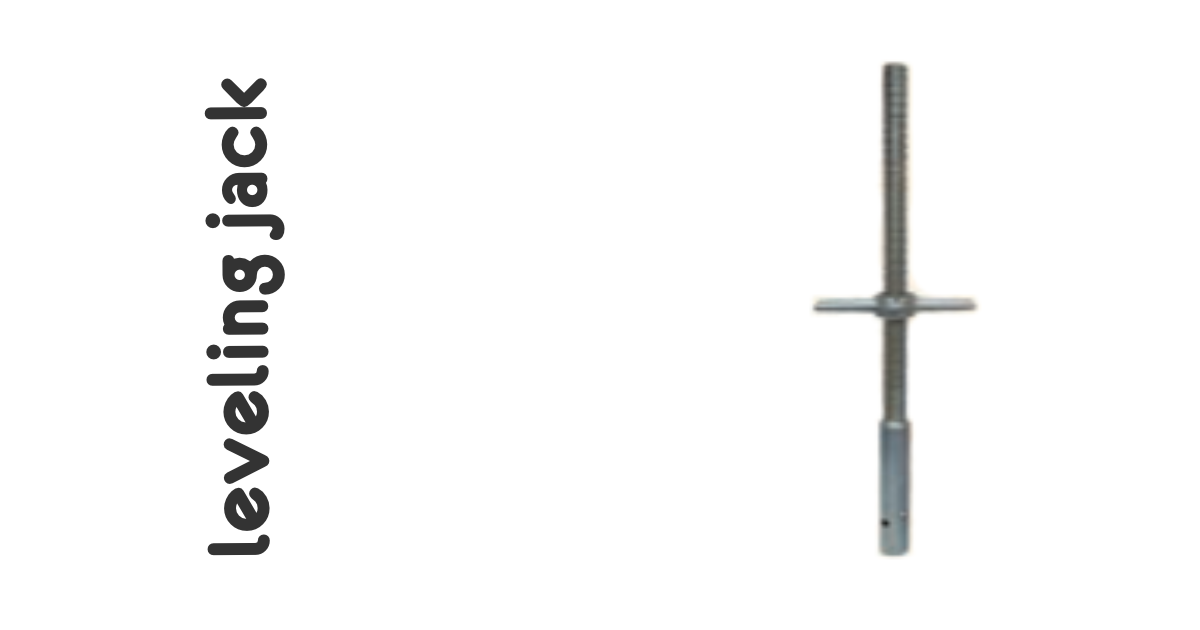

LEVELING JACKS

Titan ALPB Leveling Jack
A leveling jack with socket is used with either base plates or casters to provide height adjustment.
Height: 24"
Adjustment: 18"
Socket Diameter: 1-3/8"
Weight: 14#

Titan ALPB

TOGGLE PINS

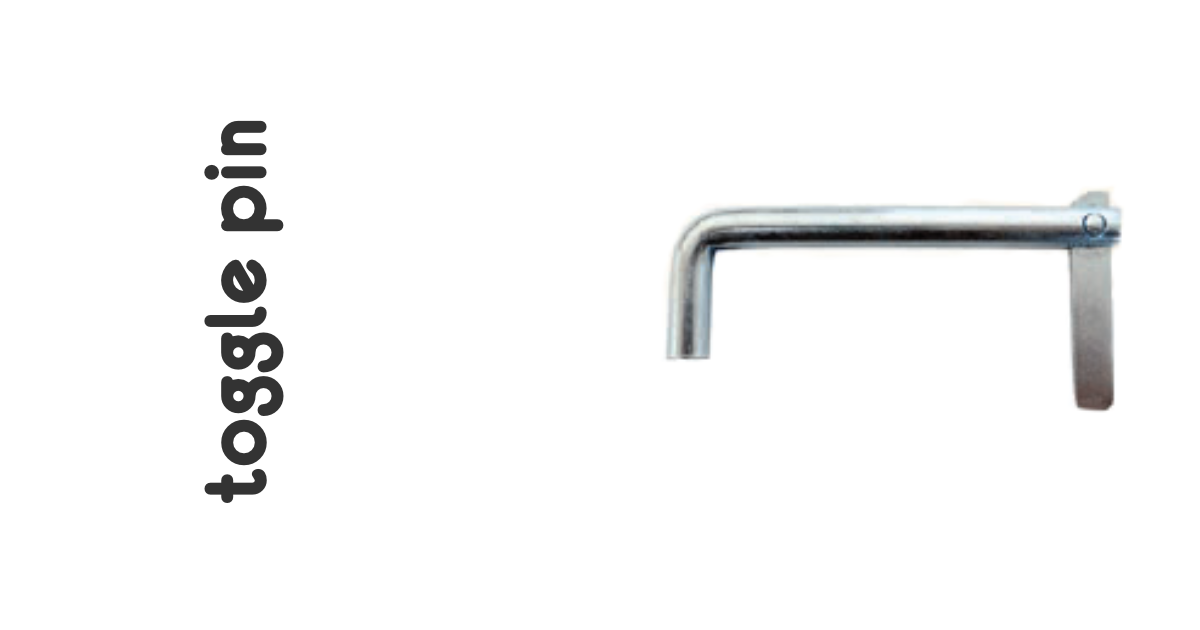

Titan TP toggle pin
Toggle Pins are used to lock frames together.
Length: 1-3/4"
Weight: 13#/100

Titan TP

SIDE BRACKETS

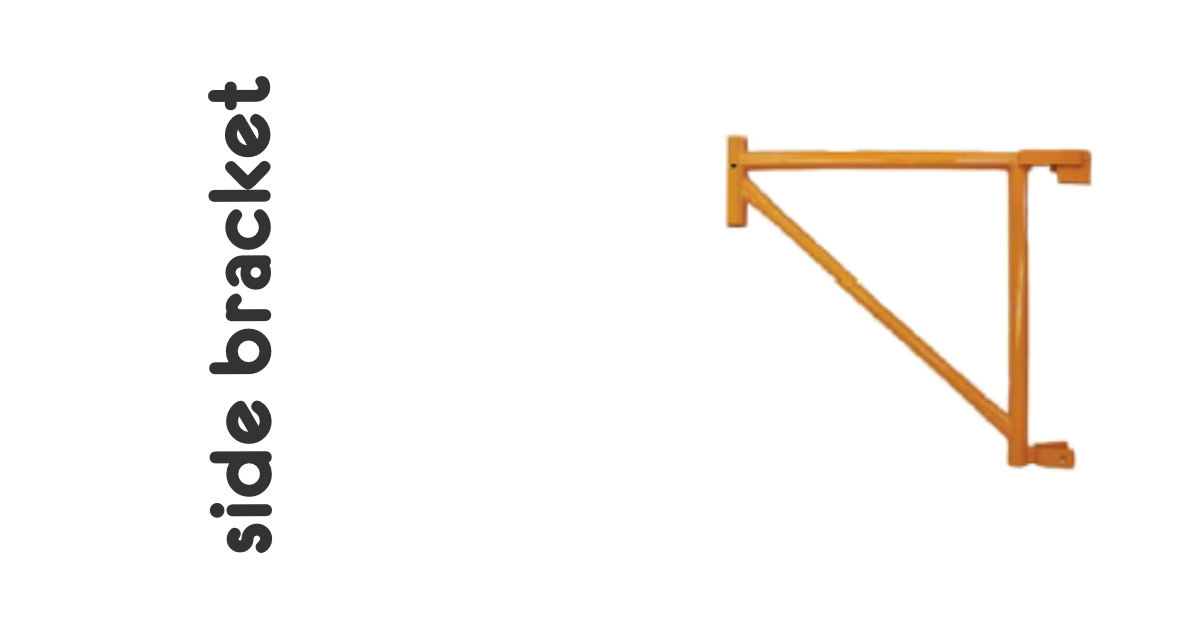

Titan SB-20 Side Bracket
A saddle side bracket attaches to the side of the frame on the ladder side to provide additional reach and a greater variety of platform heights.
Extension: 20"
Weight: 9#
Color: Yellow

Titan SB-20

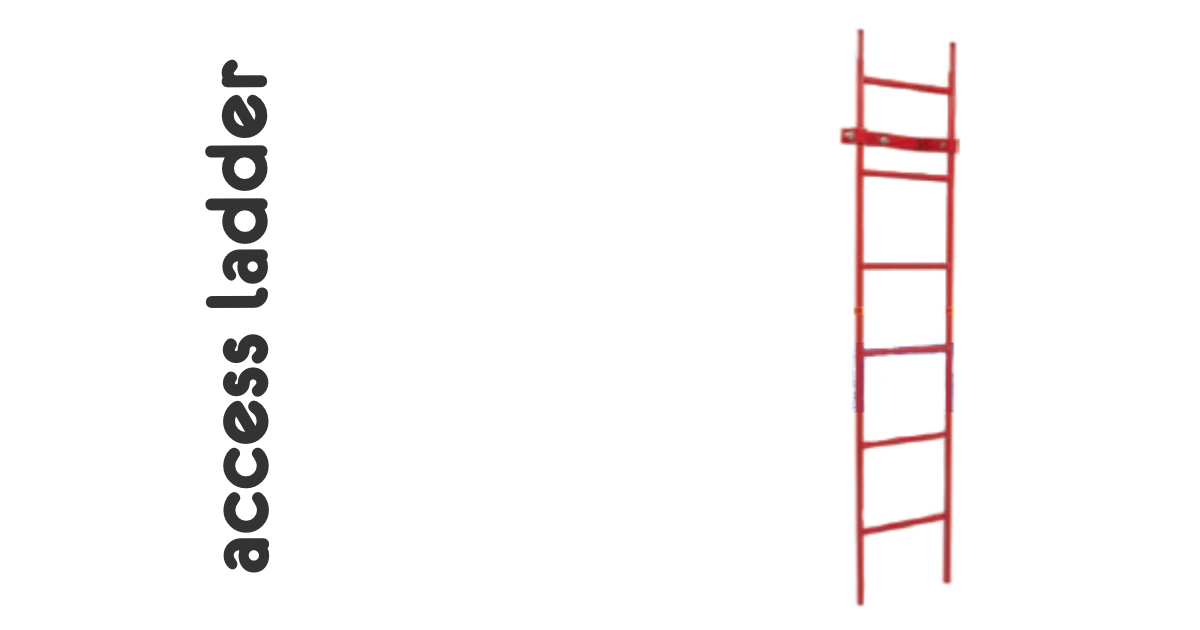

ACCESS LADDERS

Titan ACC-6 Access Ladder
The access ladder attaches to the outside of the scaffold tower for easy access to the platform above. Is especially helpful when guard rails are installed. The clamp attaches to the vertical post of the frame and secures the ladder on any corner.
Height: 72" (6'-0")
Width: 20" (est)
Weight: 25#
Bracket: one included
Color: Red

Titan ACC-6

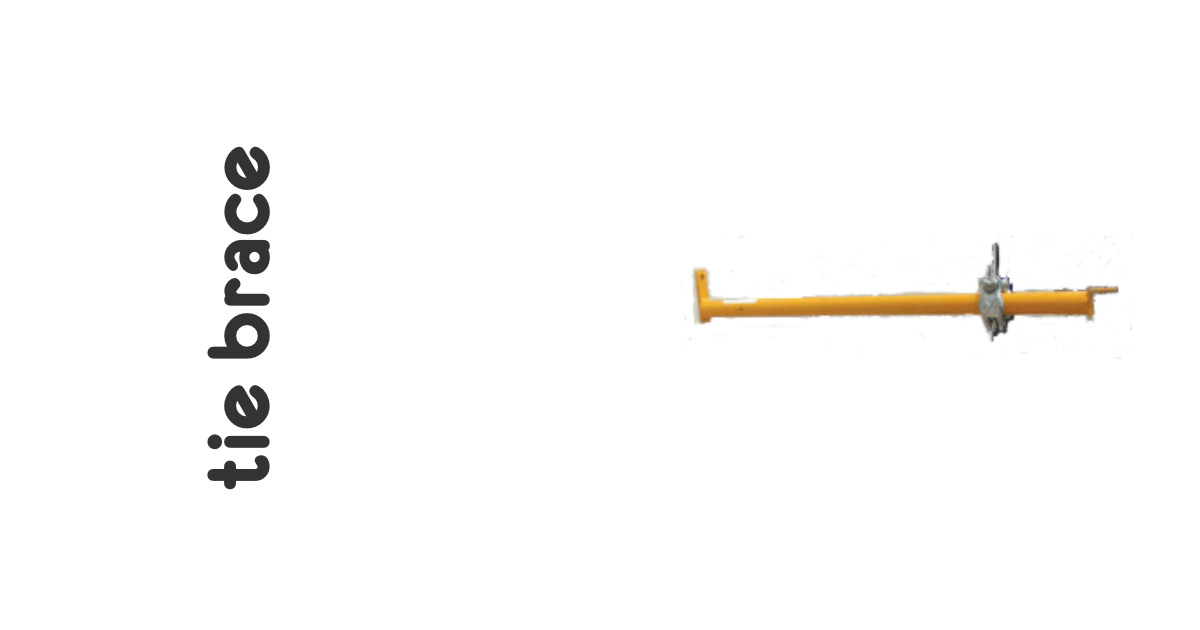

TIE BRACES

Titan Tie Brace
Tie braces are used to attach the tower to the structure for additional stability especially when tower height is taller than a few sections. The clamp attaches to a corner post and the tie brace is bolted to the structure. Length: 20"
Weight: 12#
Color: Yellow
Clamp: one included

Titan Tie Brace

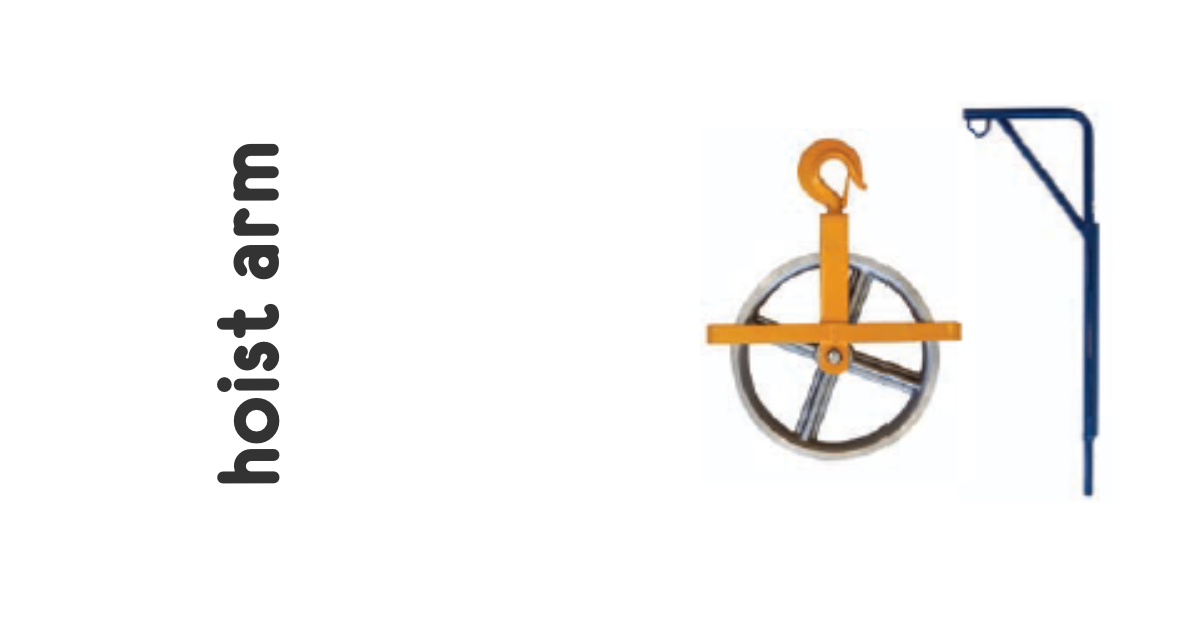

HOIST ARM and WELL WHEEL

Titan Hoist Arm (HA) and Well Wheel (WW)
The hoist arm and well wheel are extremely handy for hauling scaffolding and other material up the tower. They are used as a set.

Hoist Arm:
Weight: 25#
Lifting Capacity: 75#
Color: Blue

Well Wheel:
Weight: 15#
Diameter: 12"
Lifting Capacity: 75#

Hoist Arm Titan HA
Well Wheel Titan WW


Cite As: Stagecraft Production Service. Scaffolding. https://bit.ly/3PVpRb8
