EVENT LIGHTING

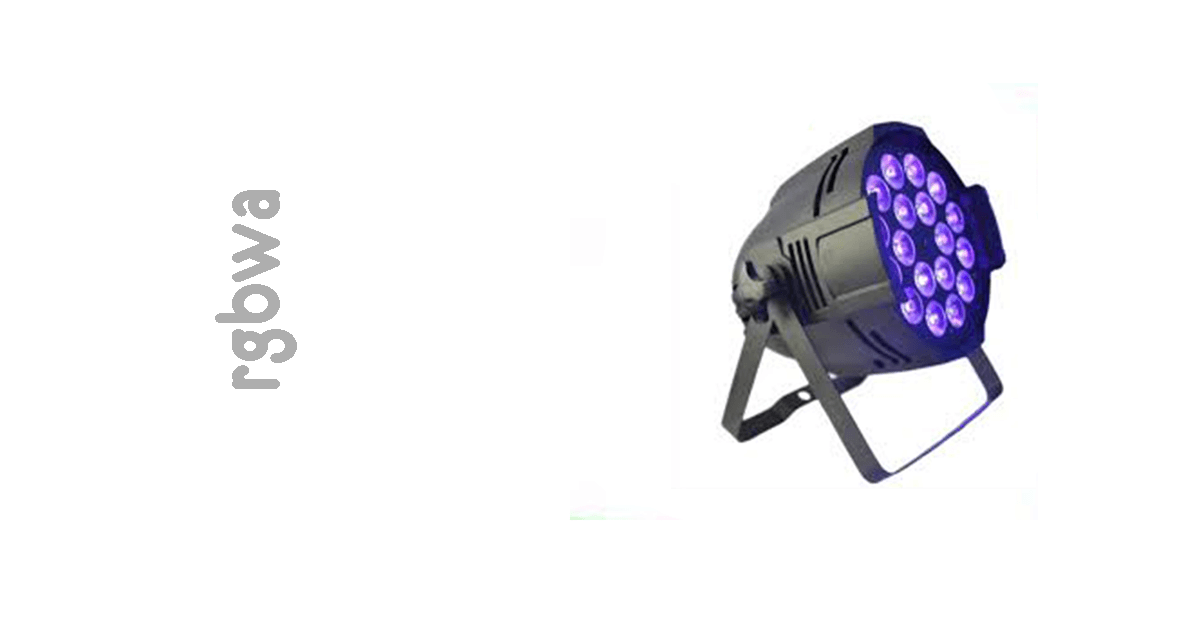

This is a very versatile five color washlight. It features eighteen LED clusters each one fitted with a 3 watt red, 3 watt blue, 3 watt green, 3 watt white, and 3 watt amber cells. These can be configured either as a floor fixture or for stand/truss mount with a half coupler.

DMX: 3 pin DMX in/out on 3' pigtails, starting channel 1—503

Electrical: 120 VAC 270 watts NEMA 5-15P plug and NEMA 5-15C connector on 3' pigtails

Dimensions:

DMX Controls for PAR 64 RDBWA Washlight

Channel	Description	Attribute Type
1	Intensity Control	Dim
2	Strobe Control	Strb
3	Mode Control (6 modes)	Macro
4	Speed Control	Spd1
5	Red Level	R
6	Green Level	G
7	Blue Level	B
8	White Level	CM1
9	Amber Level	CM2

Stagecraft rgbwa

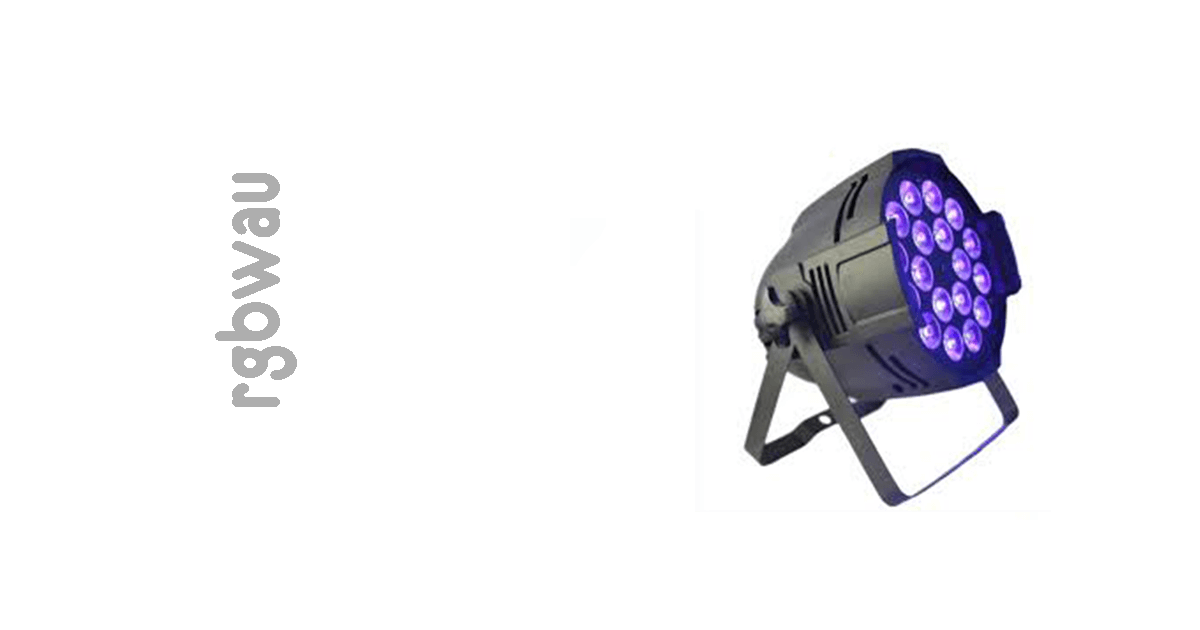

This is a very versatile six color washlight. It features eighteen LED clusters each one fitted with a 3 watt red, 3 watt blue, 3 watt green, 3 watt white, 3 watt amber, and 3 watt ultraviolet cell. These can be configured either as a floor fixture or for stand/truss mount with a half coupler.

DMX: 3 pin DMX in/out on 3' pigtails, starting address: 1—502

Electrical: 120 VAC, 324 watts, NEMA5-15P plug and NEMA5-15C connector on 3' pigtails.

Dimensions:

DMX Controls for PAR 64 RDBWAU Washlight

Channel	Description	Attribute Type
1	Intensity Control	Dim
2	Strobe Control	Strb
3	Mode Control (6 modes)	Macro
4	Speed Control	Spd1
5	Red Level	R
6	Green Level	G
7	Blue Level	B
8	White Level	CM1
9	Amber Level	CM2
10	Ultraviolet Level	CM3

Stagecraft rgbwau

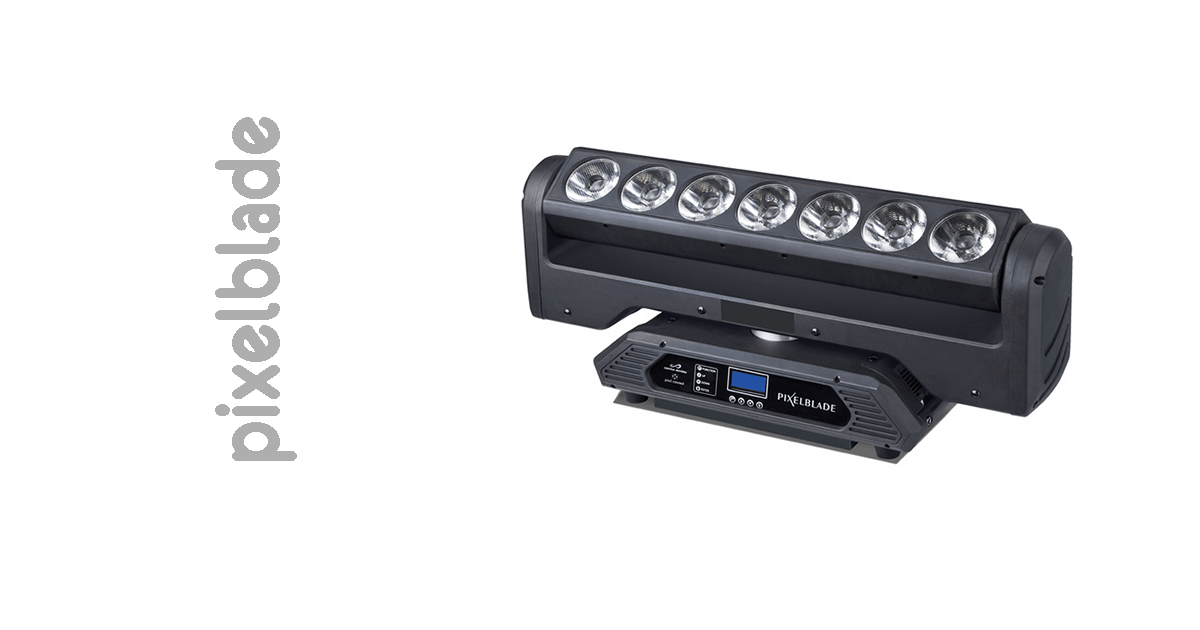

A moving yoke fixture consisting of seven 15 watt LED clusters mounted on a blade. Each cluster projects a 4° beam and has a red, blue, green, and white cell. A fixture can sit on the floor or can be fitted with Omega brackets for truss mounting.

DMX: 3 pin DMX in and out, starting address: 1—497

Electrical: 120 VAC, PowerCon in and out.

Dimensions: Height 13" , Width 24 1/8", and depth 10". Weight: 20#.

DMX Controls for PixelBlade (standard)

Channel	Description	Attribute Type
1	Pan Course Control	Pan (Coarse)
2	Pan Fine Control	Pan (Fine)
3	Tilt Coarse Control	Tilt (Course)
4	Tilt Fine Control	Tilt (Fine)
6	Pan Rotation Control	Pan Rot
7	Tilt Rotation Control	Tilt Rot
8	Itensity Control	Dim
9	Strobe Control	Strb
10	Macro Control	Macro
11	Red Level	R
12	Green Level	G
13	Blue Level	B
14	White Level	CM1
15	Mode Control	CTRL
There is also a 12 channel base mode and a 39 channel extended mode which allows pixel level control of the clusters.

Stagecraft PixelBlade

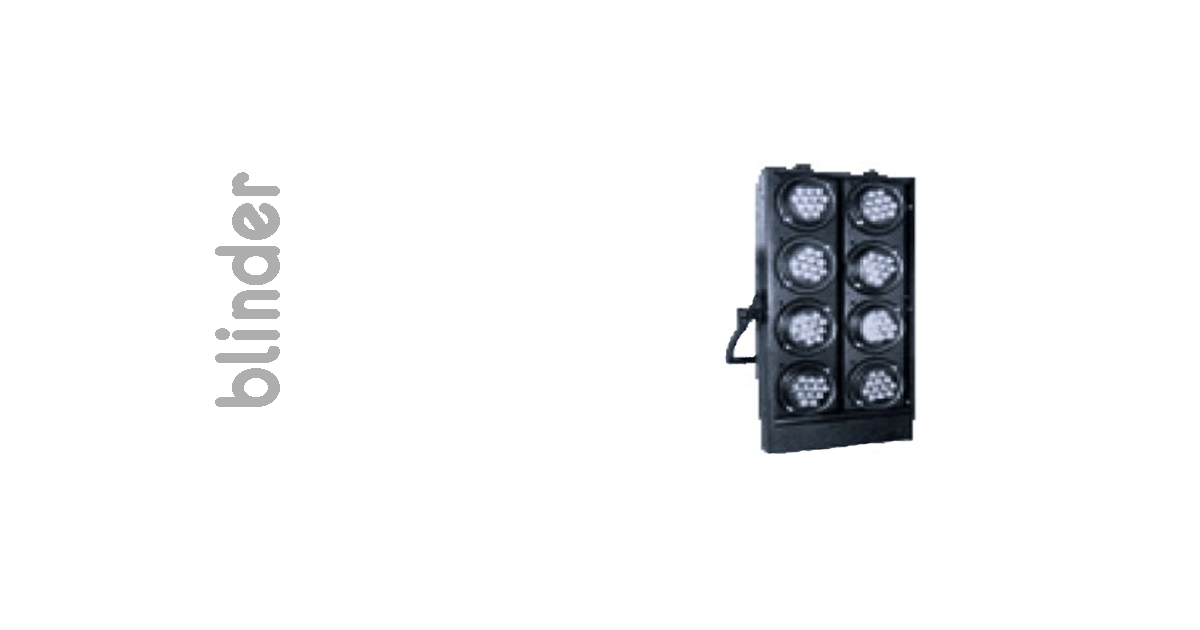

Grabbing audience attention was never easier than with these eight cell blinder fixtures. Each eye features red, blue, and green output which combines to make white. Additionally, the fixures have variable fast and slow color runs and music synch.

DMX: 3 pin in and out, starting address: 1—505

Electrical:

Dimensions:

DMX Controls for Eight Cell Blinder

Channel	Description	Attribute Type
1	Intensity Control	Dim
2	Strobe Control	Strb
3	Mode Control	Macro
4	Speed Control	Spd1
5	Red Level	R
6	Green Level	G
7	Blue Level	B

Stagecraft Blinder

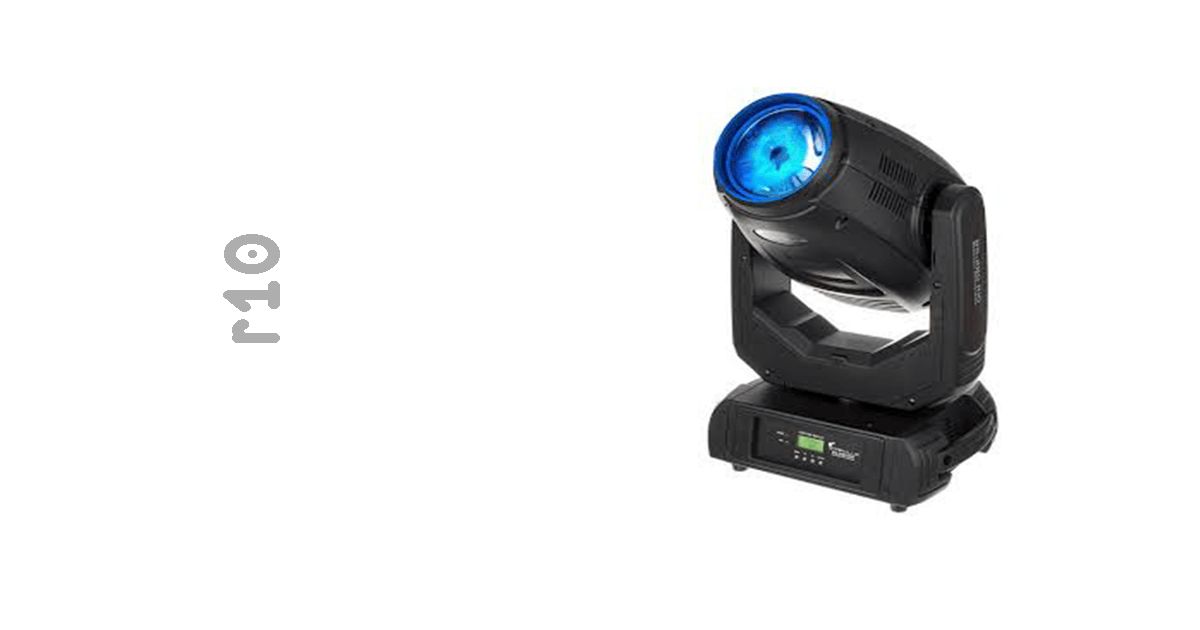

Great multi-axis moving light.

DMX: 3 pin in and out, starting address: 1—496

Electrical:

Dimensions:

Lamp: 280 watt discharge

DMX Controls for R10 (standard)

Channel	Description	Attribute Type
1	Pan Course Control*	Pan (Coarse)
2	Tilt Control*	Tilt (Coarse)
3	Pan/Tilt Speed Control	Spd1
4	Function Control	CTRL
5	Color Control*#	Color
6	Effects Speed Control	Spd2
7	Static Gobo Control#	Gobo-G2 Wheel Rot
8	Rotating Gobo Control	G1 Wheel Rot
9	Index/Rotation Control for Rotating Gobos*	G1 Rot
10	Prism#	Lens
11	Index/Rotation Control for Prism	FC Control
12	Frost Control#	Focus-Frost
13	Zoom Control*#	Focus-Zoom
14	Focus Control*#	Focus
15	Shutter/Strobe Control	Strb
16	Intensity Control*	Dim
This is the basic configuration. There is also a 24 channel configuration that adds eight fine adjustments (*) and autofocus and a 30 channel configuration that adds 6 time adjustments (#).

Stagecraft R10

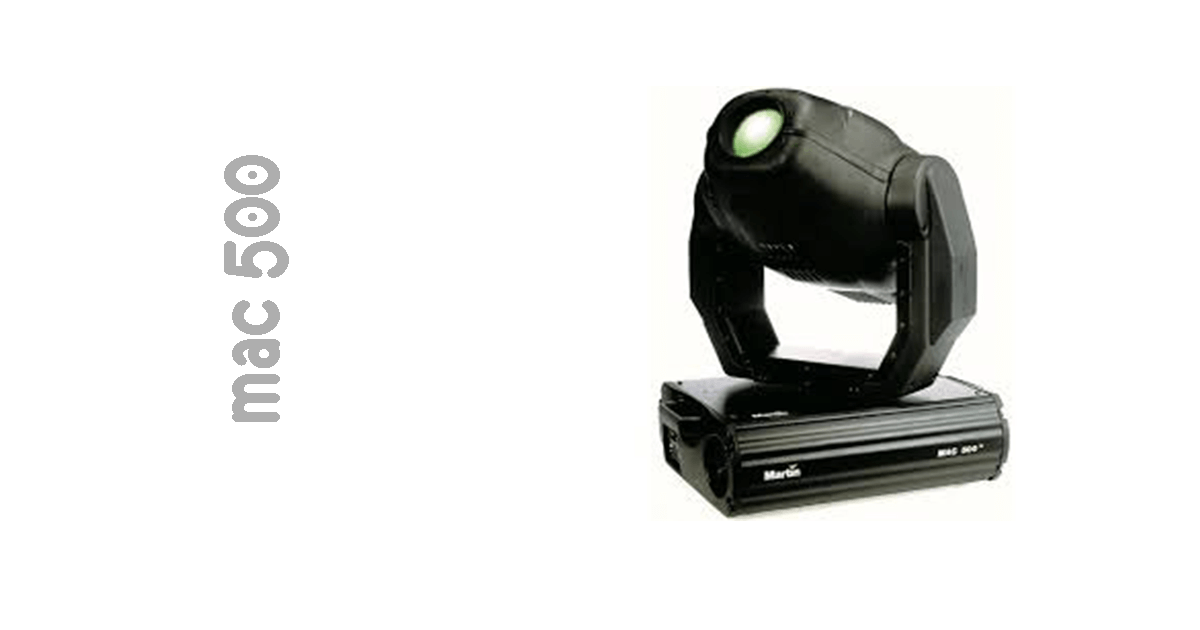

A classic mover capable of 440° pans and 306° degree tilt movements. Features two nine color wheels for color blending. Built in nine position fixed gobo, five position rotating gobo. Iris, prism, dimmer, shutter features. Optical characteristics: 17° Beam angle.

DMX: 3 pin in and o, starting address: 1—496

Electrical: 220 VAC with NEMA L6-20P plug.

Dimensions: 19" width, 27 1/2" height, 17 1/2" depth. Weight: #

Lamp: Phillips MSR575/2 discharge lamp

DMX Controls for MAC500 (standard)

Channel	Description	Attribute Type
1	Shutter, Strike, Reset Control	Strb
2	Intensity Control	Dim
3	Color 1 Control	C1
4	Color 2 Control	C2
5	Rotating Gobo Control	G1
6	Index/Rotation for Rotating Gobo	G1 Rot
7	Static Gobo Control	G2
8	Focus Control	Focus
9	Iris Control	Iris
10	Prism/Frost Control	P1
11	Pan Coarse Control	Pan (Coarse)
12	Pan Fine Control	Pan (Fine)
13	Tilt Coarse Control	Tilt (Coarse)
14	Tilt Fine Control	Tilt (Fine)
15	Pan/Tilt Speed Control	Spd1
16	Effects Speed Control	Spd2

Martin MAC500

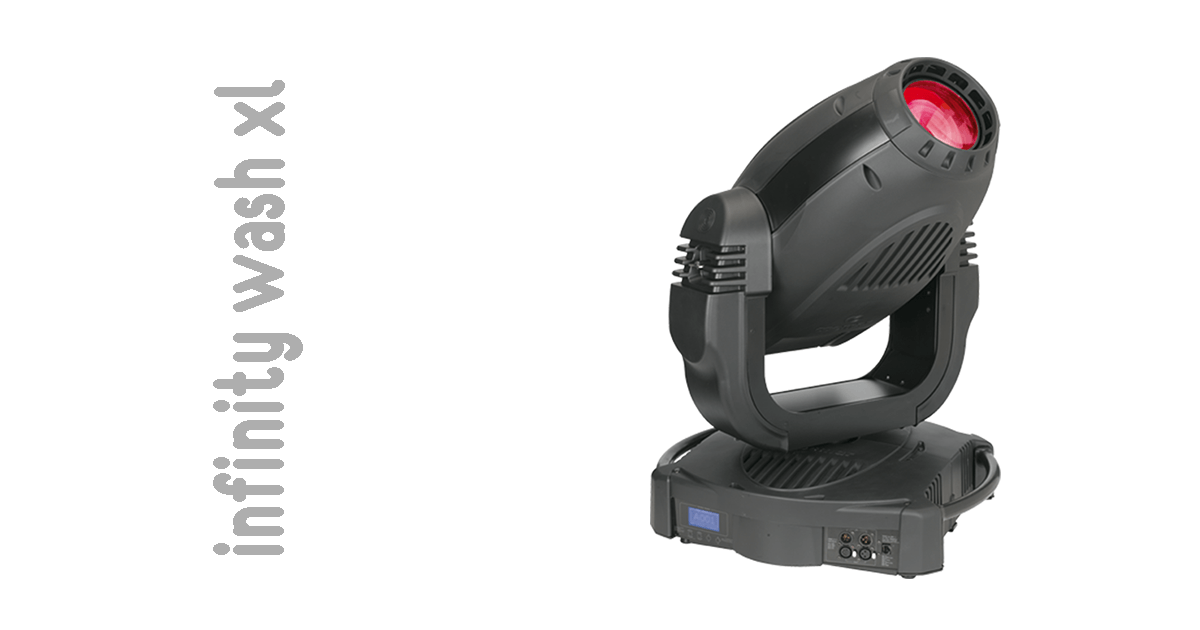

Powerful 1400 watt mover which uses CYMK color blending scheme.

DMX:

Electrial:

Dimensions:

DMX Controls for Coemar Infinity XL Wash

Channel	Description	Attribute Type
1	Pan Coarse Control	Pan (Coarse)
2	Pan Fine Control	Pan (Fine)
3	Tilt Coarse Control	Tilt (Coarse)
4	Tilt Fine Control	Tilt (Fine)
5	Pan/Tilt Speed Control	Spd1
6	Intensity Control	Dim
7	Shutter/Strobe Control	Strb
8	Zoom Effect	Zoom
9	Zoom Control	Lens
10	Zoom Shake Control	Focus
11	Effects Selection Control	P1
12	Effects Index/Rotation Control	P1 Rot
13	Color Control	C1
14	Cyan Level Control	CM1
15	Cyan Saturation Control	Cyan Sat
16	Magenta Level Control	CM2
17	Magenta Saturation Control	Mag Sat
18	Yellow Level Control	CM3
19	Yellow Saturation Control	C1 Corr
20	CTO Control	Zap
21	Lamp Output Control	Dummmy
22	Lamp on/off Control	CTRL

Coemar Infinity Wash XL

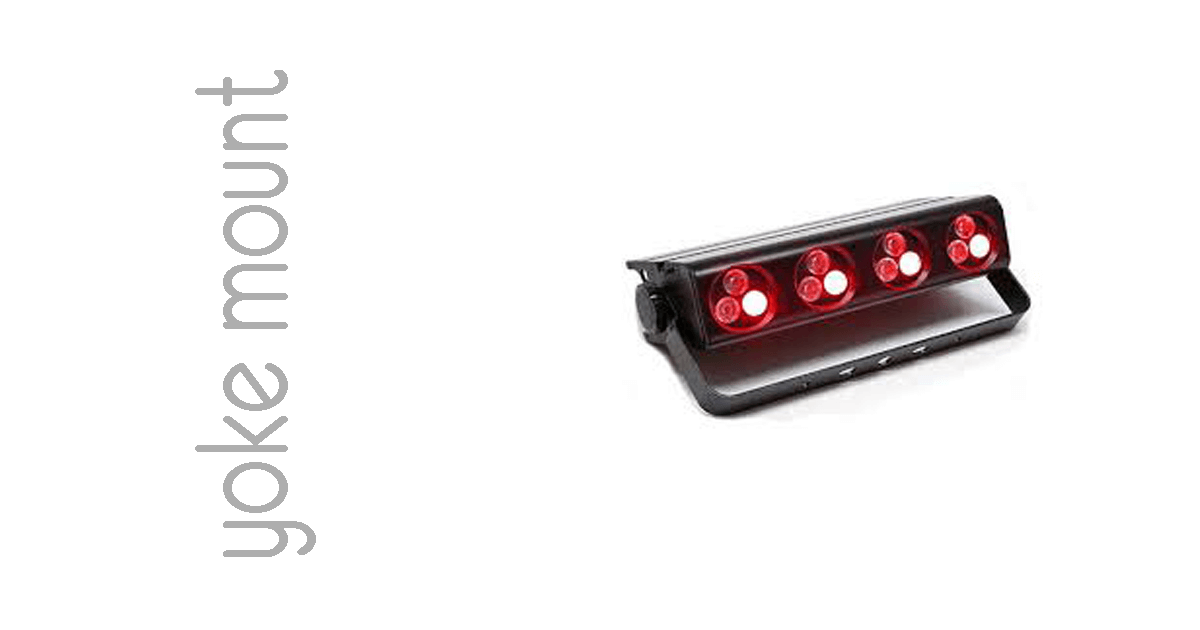

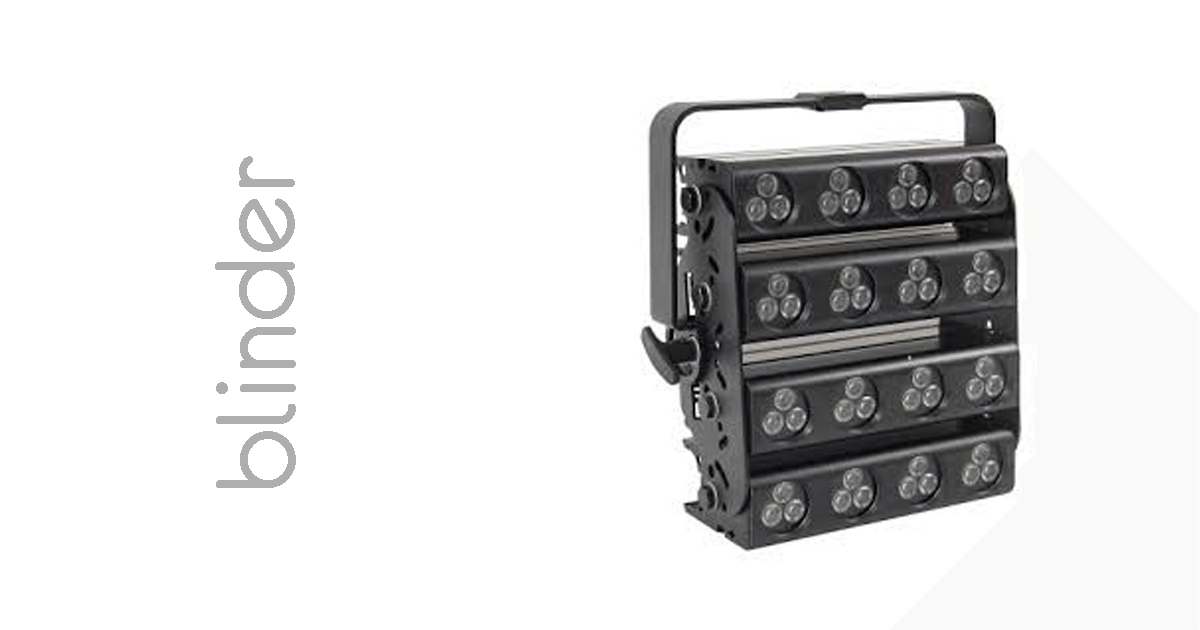

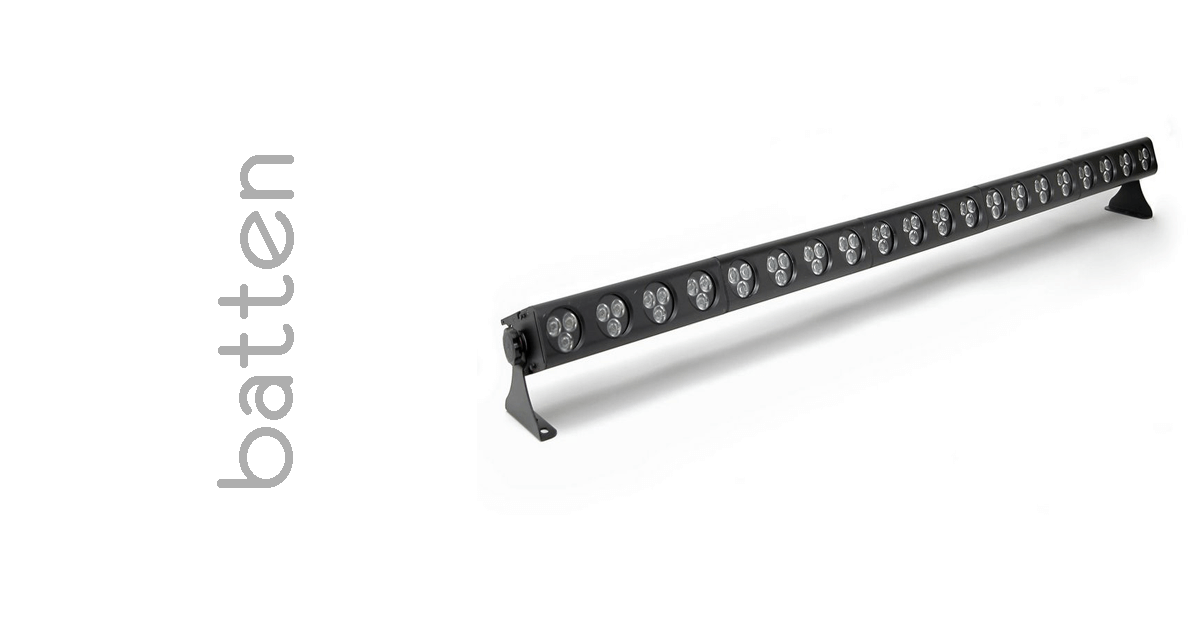

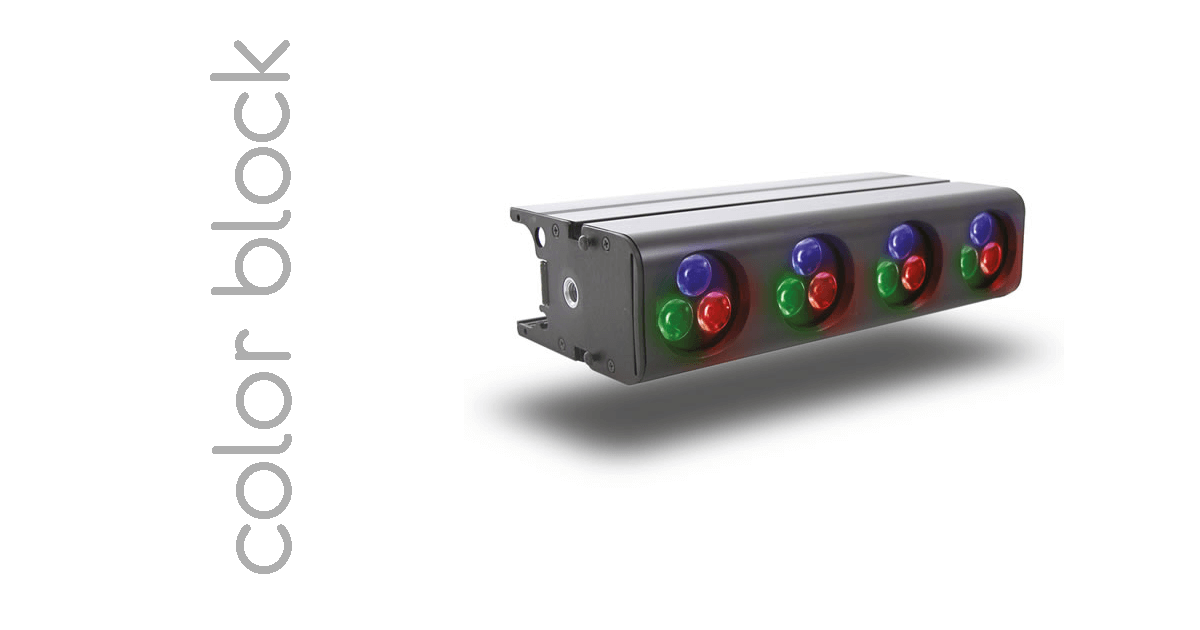

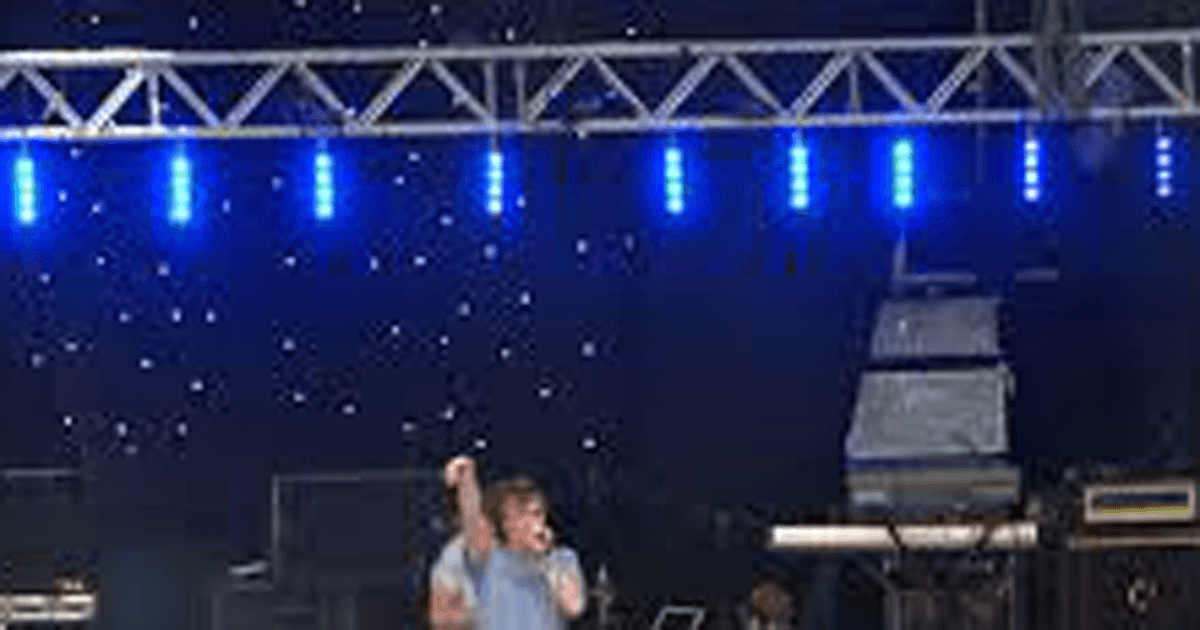

The ChromaQ Color Block System is a unique "building block" system consisting of up to 30 LED blocks, each with four tri color LED clusters and a variety of mounting options including four block blinder frames, single block yokes, five block battens, or simply mount a coupler directly to the block and a PSU-30 controller. Each block has 12 DMX channels and you can have up to 30 blocks in a system in any mounting configuration. Each block is connected to the PSU controller by a 4 wire "DMX like" cable which, in turn, is connected to your DMX console. Channel assignment is automatic with the 'closest' block starting as 1 and proceeding sequentially to the 'furthest' depending on the selected mode/submode/effects selected.

Color blocks can be controlled either by Hue, Saturation, and Intensity (HSI) submode or by Red Level, Green Level, and Blue Level (RGB) submode.

Additionally there are optional effects (FX) features for the HSI submode with control of six or seven variables:

1. Grouping (three modes) [cell mode only]
2. Speed (continuously variable)
3. Fan (continuously variable)
4. Range (continuously variable)
5. Step (five modes)
6. Intensity Effects (four modes)
7. Intensity Fan (continuously variable)

There are three primary control modes and each has three submodes. The primary modes are by individual cells, by blocks (four cells to a block), or all the same. The submodes are HSI with effects, HSI without effects, or RGB.

Control Modes for Color Block System

Mode #	Nbr of Ch	Mode	Submode	Effects
1	367	Cell	HSI	Yes
2	360		HSI	No
3	360		RGB	No
4	96	Block	HSI	Yes
5	90		HSI	No
6	90		RGB	No
7	9	All	HSI	Yes
8	3		HSI	No
9	3		RGB	No

Mode 7 is extremely powerful as it exposes the maximum functionality of the PSU-30 controller with minimum console footprint.

DMX Controls for ChromaQ PSU-30 (Mode 7)

Channel	Description	Attribute Type
1	Color Speed	Spd1
2	Fan Control
3	Range Control
4	Step Control
5	Intensity Effects Control
6	Intensity Fan Control
7	Hue Control
8	Saturation Control
9	Intensity Control	Dim

ChromaQ DB4

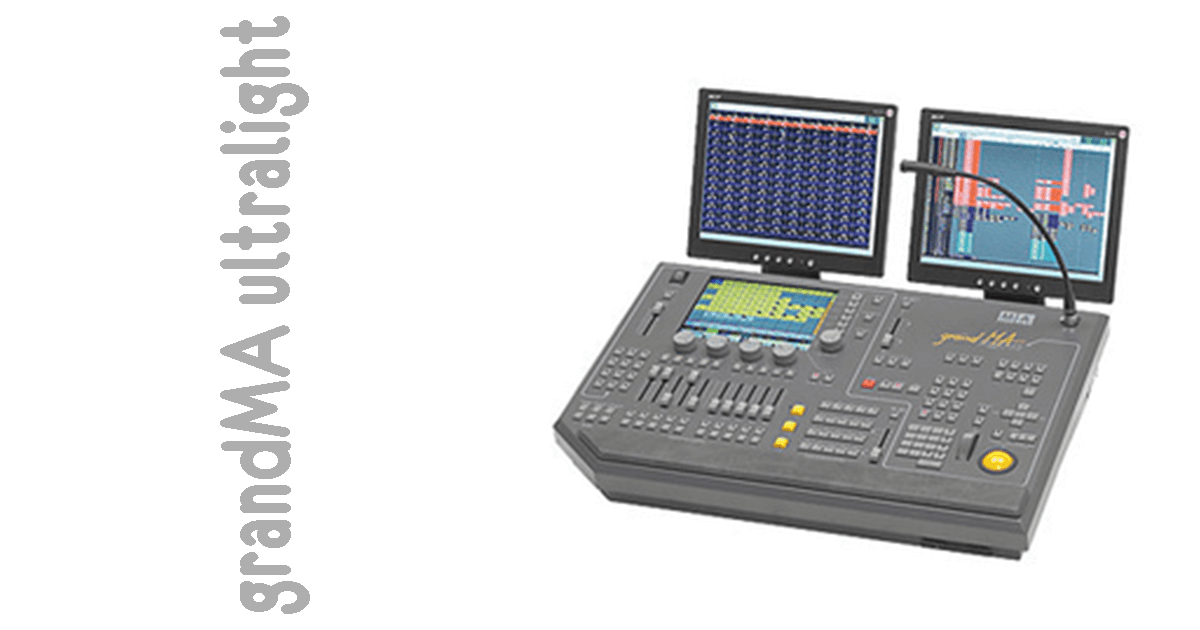

Powerful, full featured lighting desk for medium events with up to 64 moving lights. Two universe (1024 DMX channels) with ten fully configurable submasters. Provided with two video monitors, keyboard, and mouse.

GrandMA Ultralight

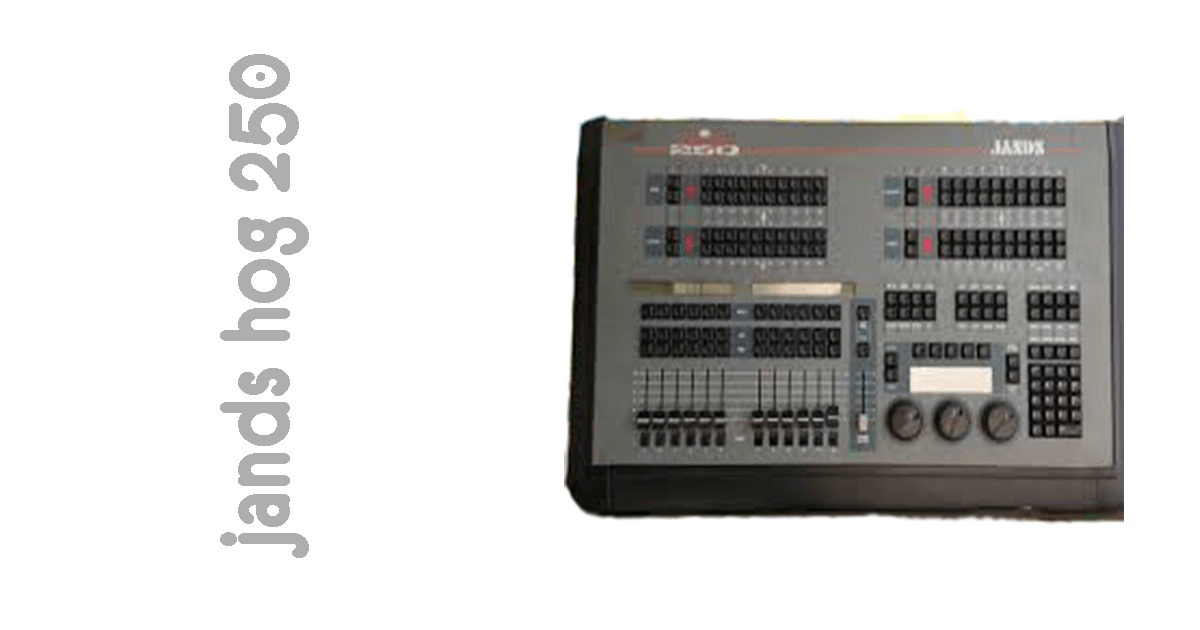

Powerful, full featured lighting desk for smaller events up to 16 moving lights and theatrical productions. Half universe (250 DMX channels) with ten fully configurable submasters. Provided with video monitor, keyboard, mouse, and floppy drive.

Jands Hog 250
