DJ LIGHTING AND SPECIAL EFFECTS

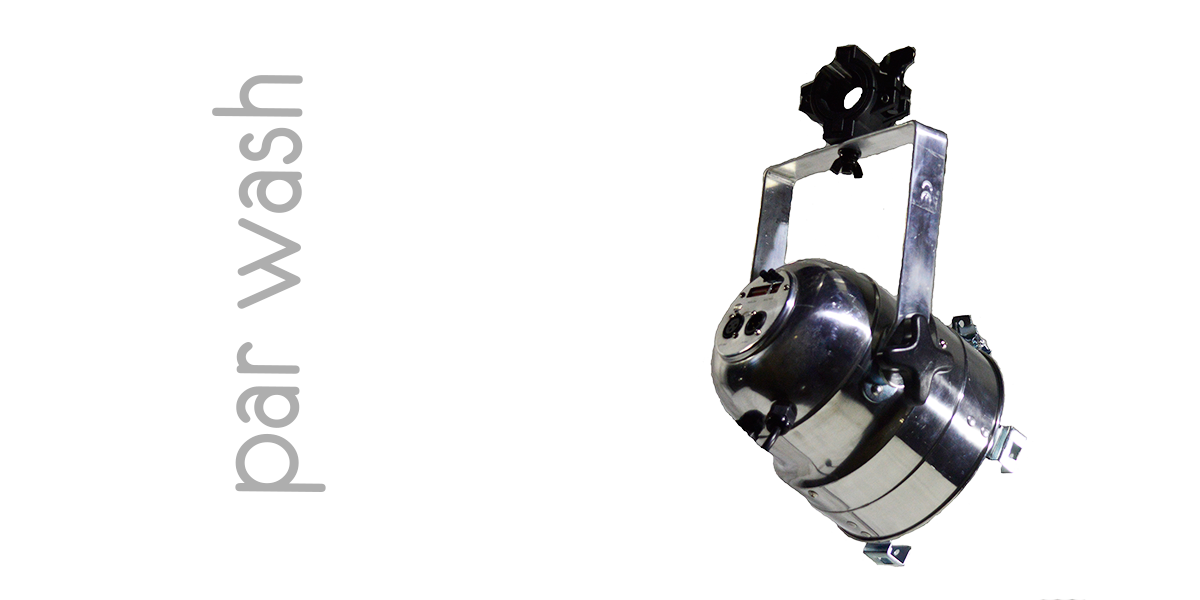

The PAR56 is a powerful LED medium throw wash fixture that projects intense colors up to fifteen feet produced by 151 LED emitters. You can choose from 512 colors and these fixtures can run stand alone, or wired or wireless DMX control. There is a selection of built in automated programs (7 color fade, 7 color change, 3 color change) with speed control or capable of sequencing to music. These are aluminum fixtures in chrome finish 7" in diameter.

DMX: 3 pin in and out. Starting address: 1—507

Electrical: 120 VAC, 20 watts with male and female NEMA 5-15P and 5-15C connectors.

Dimensions: 7.9" hight 7.9" wide 10.3" deep, weight: 3.5#

Fixture Sheets:
Stellar Labs PAR Fixture Sheet (Basic)
Stellar Labs PAR Fixture Sheet (Advanced)

DMX Controls for Martin MX-4 Scanner

Channel	Description	Attribute Type
1	Mode Control	Control
2	Red Level	R
3	Green Level	G
4	Blue Level	B
5	Speed Control	Spd1
Note: can also run three channel DMX 1=R, 2=G, 3=B

Stellar Labs 555-11401

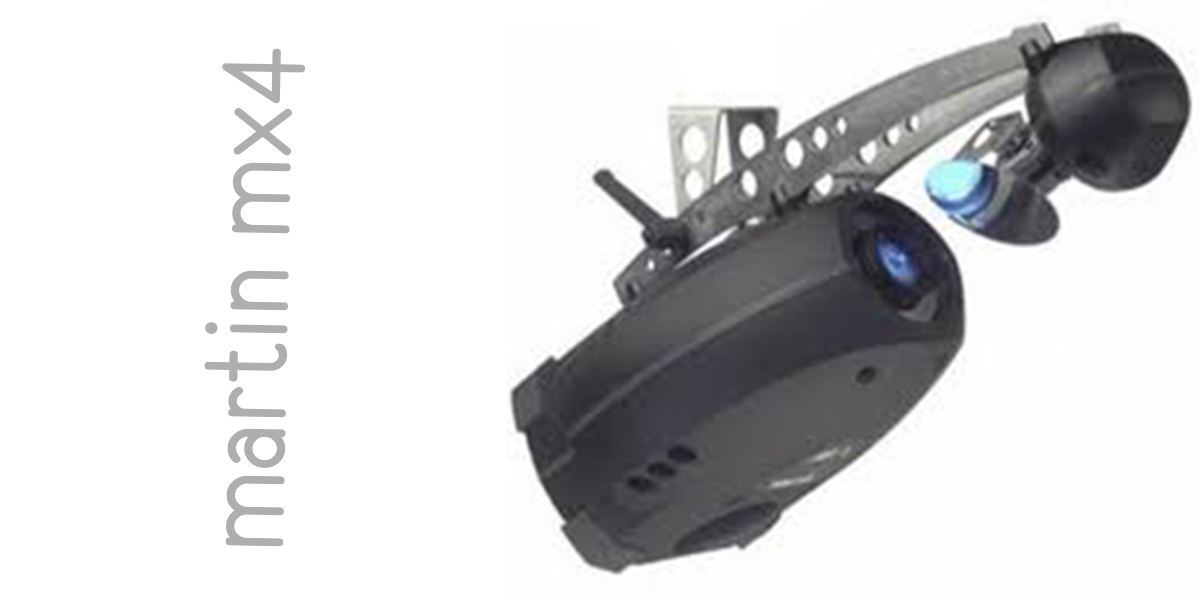

This automated moving-mirror spotlight provides fifteen full and two split colors, nineteen gobos, high-speed shutter, 230° of pan and 76° of tilt, adjustable focus, and a 16° beam angle. It is powered by a 150 watt discharge lamp and is completely operatable with DMX controllers. SPS has a large inventory of eight of these.

DMX: 3 pin in & out, start channel: 1—495

Electrical: IEC C14 male connector, 120 VAC, 205 watts, 2.0 amps

Dimensions: length 21.1" x width 10.6" x 10.3" height, weight 19.4#

Lamp: Phillips CDM-SA/T 150 or GE Arcstream 150

DMX Controls for Martin MX-4 Scanner

Channel	Description	Attribute Type
1	Shutter, Strobe, Lamp Control	Strb
2	Color Wheel Control	Color
3	Gobo Wheel Control	G2
4	Pan Control	Pan (coarse)
5	Tilt Control	Tilt (coarse)
6	Pan/Tilt Speed Control	Spd1
7	Color/Gobo Speed Level	Spd2

Martin MX-4

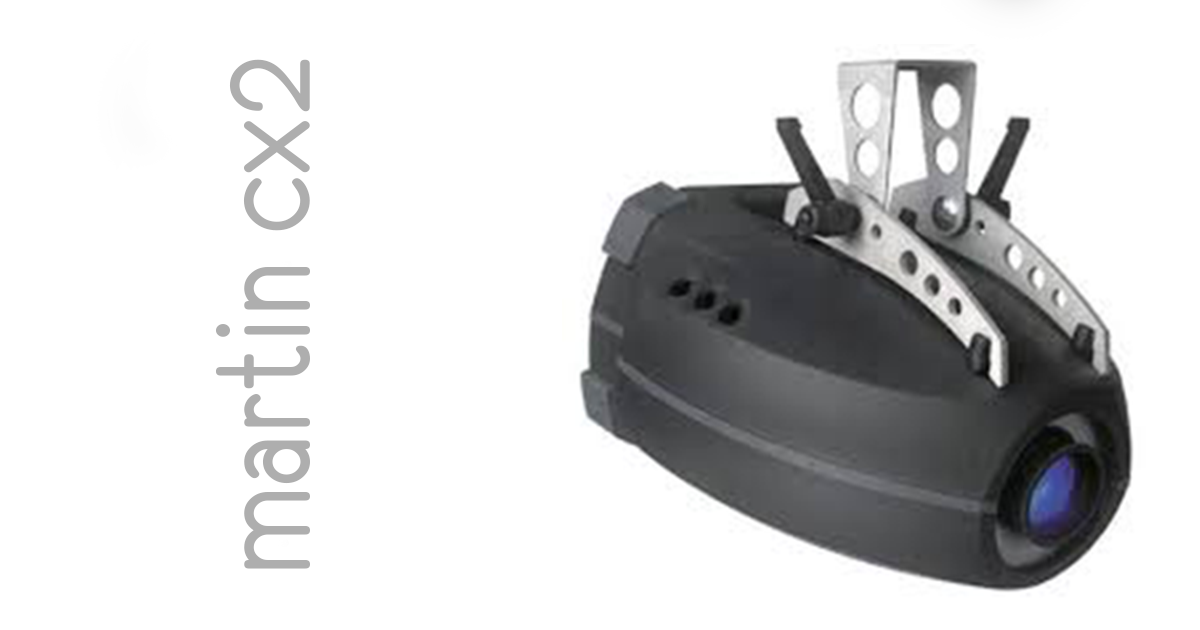

This automated profile spotlight provides continuous electronic dimming, fifteen full and two split colors, nineteen gobos, high-speed shutter, and adjustable focus. It is powered by a 250 watt discharge lamp and is completely operatable with DMX controllers. SPS has two of these in stock.

DMX: 3 pin in & out, start channel: 1—508

Electrical: IEC C14 male connector, 120 VAC, 250 watts, 2.2 amps

Dimensions: length 11.7" x width 10.6" x 12.1" height, weight 12.1#

Lamp: Phillips ELC 250 or Osram ELC 250

DMX Controls for Martin CX-2 Changer

Channel	Description	Attribute Type
1	Dimmer, Strobe, Lamp Control	Strb
2	Color Wheel Control	Color
3	Gobo Wheel Control	G2
4	Color/Gobo Speed Control	Spd2

Martin CX-2

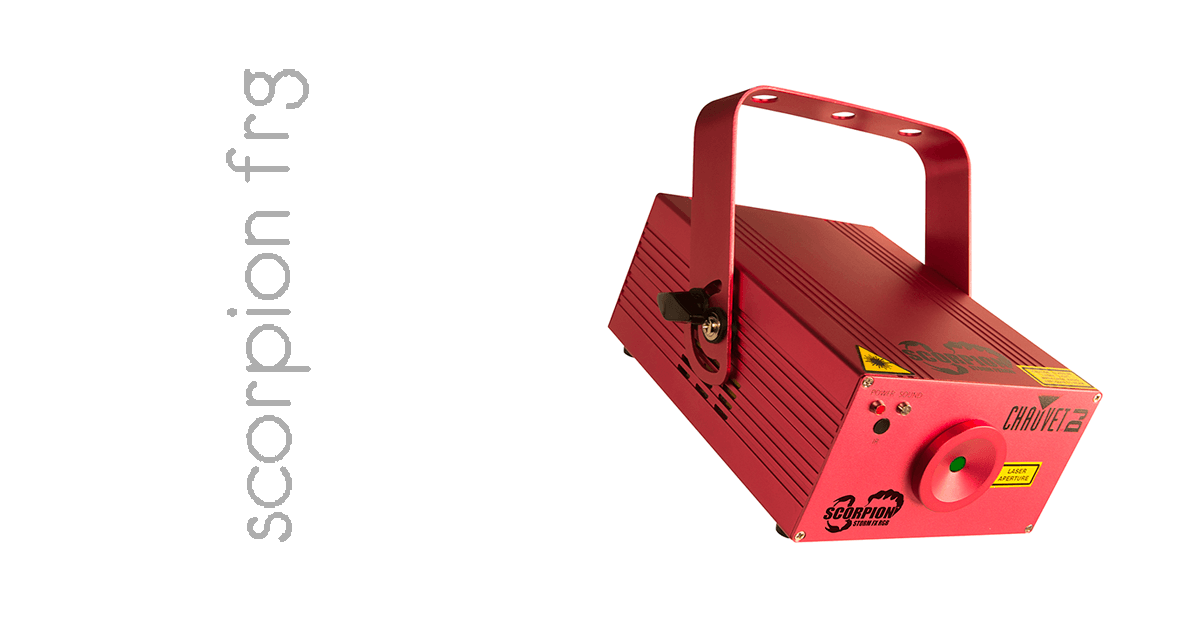

Versatile red/green class 3R laser featuring DMX, six automatic modes, three sound modes, and random mode, ten color combinations, adjustable strobe, two rotating mirrors with stutter. We reccomend haze to mazimize the effect. 5mm beam width, 99° beam angle.

DMX: 3 pin in and out, starting channel: 1—505

Electrical: 120 VAC, 0.3 amp, IEC CN-14 male connector input, chassis NEMA 5-15R through.

Dimensions: height 9.2" width 9" depth 10.8", weight: 5.9#

Green Laser: 532nm, 40mw
Red Laser: 650nm, 100mw

DMX Controls for Chauvet Scorpion FRG

Channel	Description	Attribute Type
1	Mode Control	Ctrl
2	Color Control	Color
3	Strobe Control	Strb
4	Rotation 1 Control	Spd1
5	Stutter 1 Control	G1
6	Rotation 2 Control	Spd2
7	Stutter 2 Control	G2

Chauvet Scorpin FRG

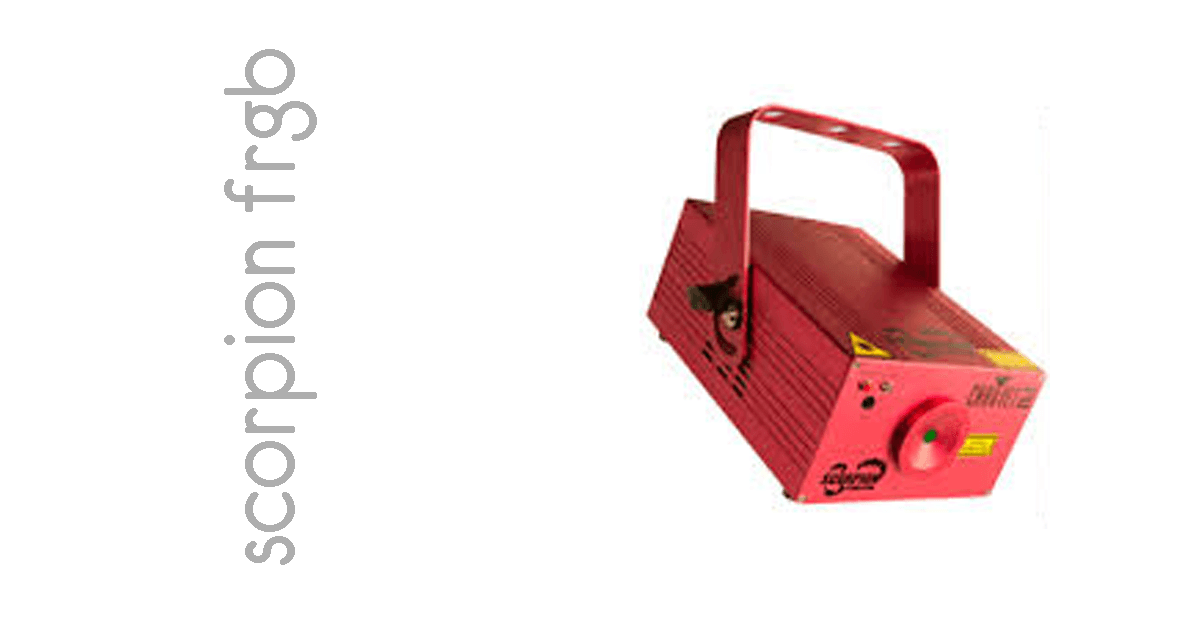

Versatile red/green/blue class 3R laser featuring DMX, two automatic modes, sound mode, and random mode, twentyfour color combinations, adjustable strobe, two rotating mirrors with stutter. 5mm beam width, 100° beam angle. The effect is quite effective when combined with haze.

DMX: 3 pin in and out, starting channel: 1—505

Electrical: 120 VAC, 0.3 amp, 26 watts, IEC CN-14 male connector input, chassis NEMA 5-15R through.

Dimensions: height 7.5" width 7.6" depth 9.1", weight: 3.8#

Green Laser: 532nm, 40mw
Red Laser: 650nm, 100mw
Blue Laser: 450nm, 40mw

DMX Controls for Chauvet Scorpion FRGB

Channel	Description	Attribute Type
1	Mode Control	Ctrl
2	Color Control	Color
3	Strobe Control	Strb
4	Rotation 1 Control	Spd1
5	Stutter 1 Control	G1
6	Rotation 2 Control	Spd2
7	Stutter 2 Control	G2

Chauvet Scorpin FRGB

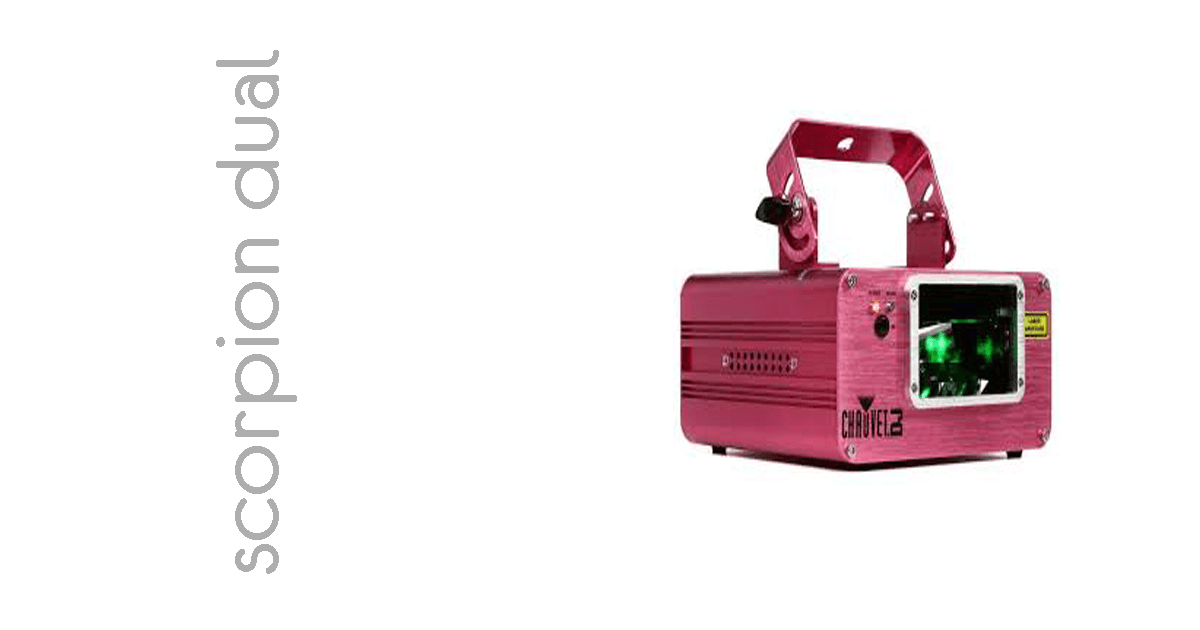

The Chauvet Scorppion Dual is a dual pattern class 3R laser featuring 32 patterns that can be rotated on all three axes, moved up and down on the surface, zoomed in and out. Controllable strobing and speed. Automatic pattern changes and sound active mode along with DMX control. The effects are amazing when combined with haze.

DMX: 3 pin in and out, starting address: 1—502

Electrical: 120 VAC, 20 watts, 0.2 amps. IEC UC-14 connector in, NEMA 5-15R through

Dimensions: 7.6" high 8.1" wide 8.9" deep, weight: 5.43#

Green Laser: 532nm, 50mw

DMX Controls for Chauvet Scorpion Dual

Channel	Description	Attribute Type
1	Mode Control	Control
2	Strobe Control	Strb
3	Pattern Control	G1
4	Zoom Control	Zoom
5	Y-Axis Roll Control	1A
6	X-Axis Roll Control	2A
7	Z-Axis Roll Control	3A
8	Pan Control	Pan (Coarse)
9	Tilt Control	Tilt (Coarse)
10	Scan Speed Control	Spd1

Chauvet Scorpion Dual

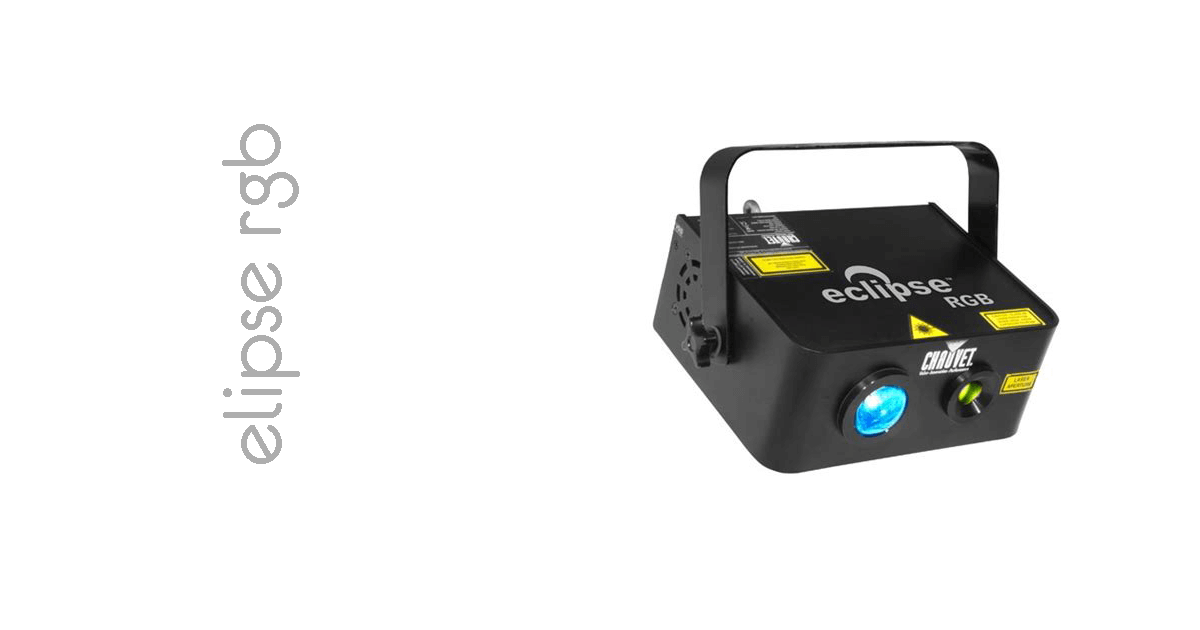

The Chauvet Eclipse RGB lets you treat your audiences to a stunning and immersive night-sky effect. The Eclipse RGB creates a red and green laser star field and overlays rippling auras of fully controllable and dimmable red, green and blue LED illumination, for a unique, otherworldly visual experience that must be seen to be fully appreciated. Shift the mood on a dime, from calm and relaxing— to ultra exciting. This is a class 3R laser with 5mm beam width, 70° beam angle.

DMX: 3 pin in and out, starting channel: 1—500

Electrical: 120 VAC, 43 watts, 0.4 amp, IEC CN-14 male connector input, chassis NEMA 5-15R through.

Dimensions: height 7.9" width 9.3" depth 6.4", weight: 3.7#

Green Laser: 532nm, 40mw
Red Lasaer: 650nm, 100mw

DMX Controls for Chauvet Eclipse RGB

Channel	Description	Attribute Type
1	Mode (laser) Control	Ctrl
2	Color (laser) Control	Color
3	Strobe (laser) Control	Strb
4	Rotation (laser) Control	Spd1
5	Stutter (laser) Control	G1
6	Flash (effect) Control	Spd3
7	Red (effect) Level	R
8	Green (effect) Level	G

Chauvet Eclipse RGB

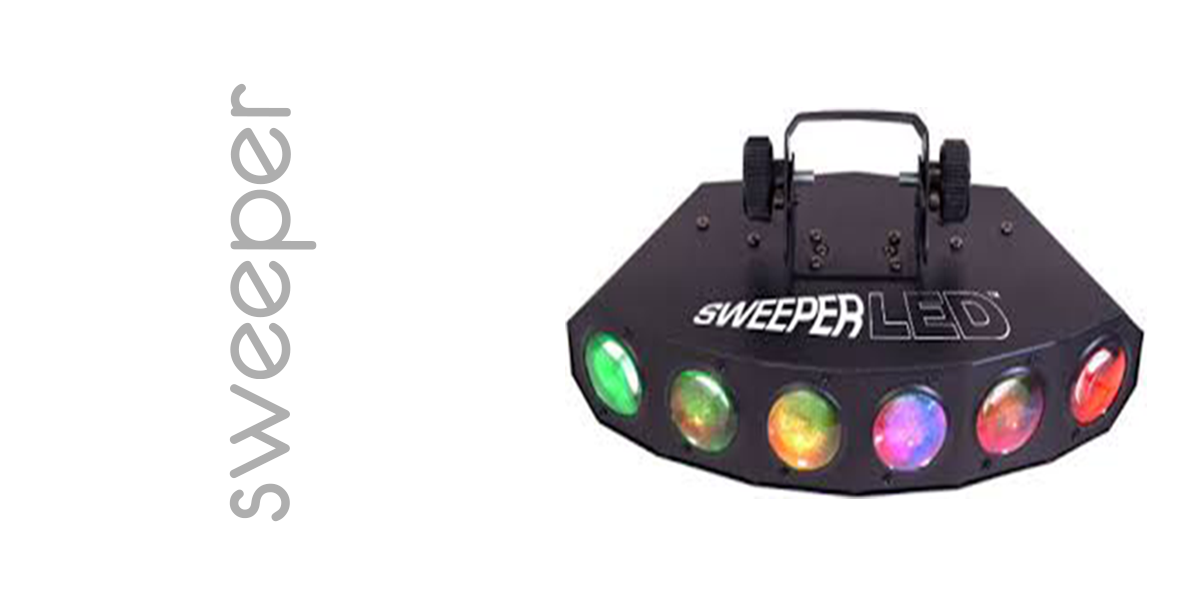

The Chauvet Sweeper features six 3 watt LEDs arranged to make a multicolor fan with seven DMx controlled colors, eight automatic variable speed macros or sound activated.

DMX: 3 pin in and out. Starting address: 1—504

Electrical: 120 VAC, 51 watts, 0.42 amps. IEC UC-14 power inlet, NEMA 5-15R through

Diminsions: 6.3" high 14.8" wide 7.5" deep, weight: 5#

DMX Controls for Chauvet Sweeper

Channel	Description	Attribute Type
1	Pod 1 Control	Color
2	Pod 2 Control	Color
3	Pod 3 Control	Color
4	Pod 4 Control	Color
5	Pod 5 Control	Color
6	Pod 6 Control	Color
7	Strobe Control	Strb
8	Mode Control	Control

Chauvet Sweeper

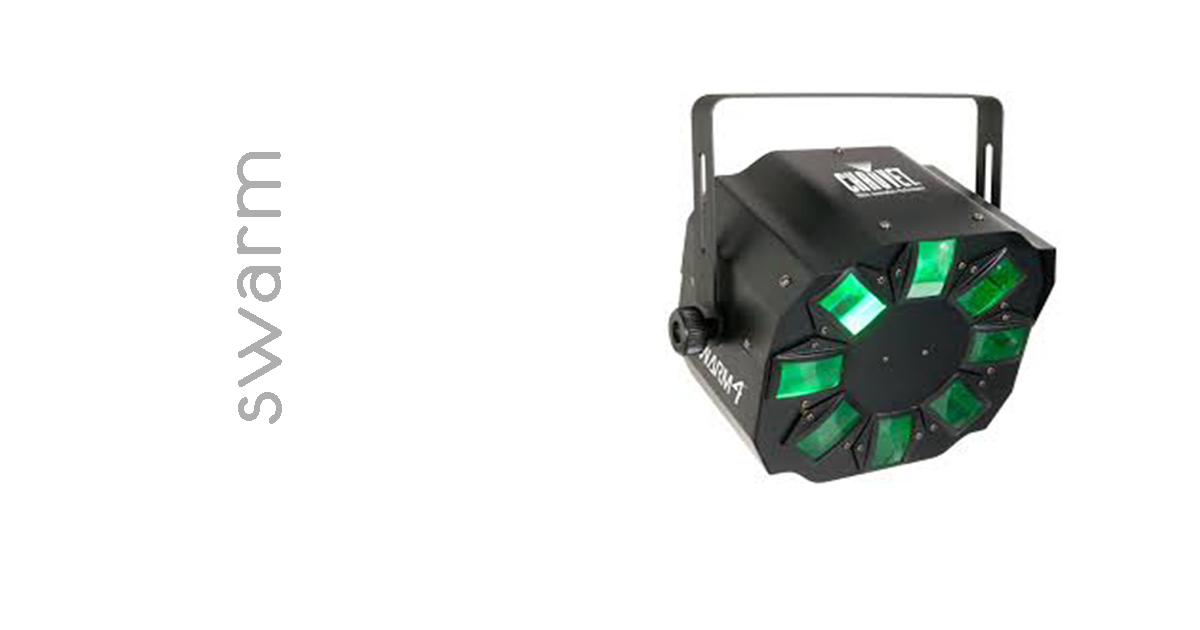

The Chauvet Swarm 4 features four 2 watt (red, green, blue, amber) LEDs that provide fourteen color combinations, three automatic variable speed macros or sound activated with strobe and rotation control. Most effective when used with haze or fog atomospherics. 65° coverage angle.

DMX: 3 pin in and out. Starting address: 1—508

Electrical: 120 VAC, 34 watts, 0.28 amps. IEC UC-14 power inlet, NEMA 5-15R through

Diminsions: 12" high 7" wide 12" deep, weight: 8.2#

DMX Controls for Chauvet Swarm 4

Channel	Description	Attribute Type
1	Color/Mode Control	Color
2	Speed Control	Spd1
3	Strobe Control	Strb
4	Rotation Control	Spd2

Chauvet Swarm 4

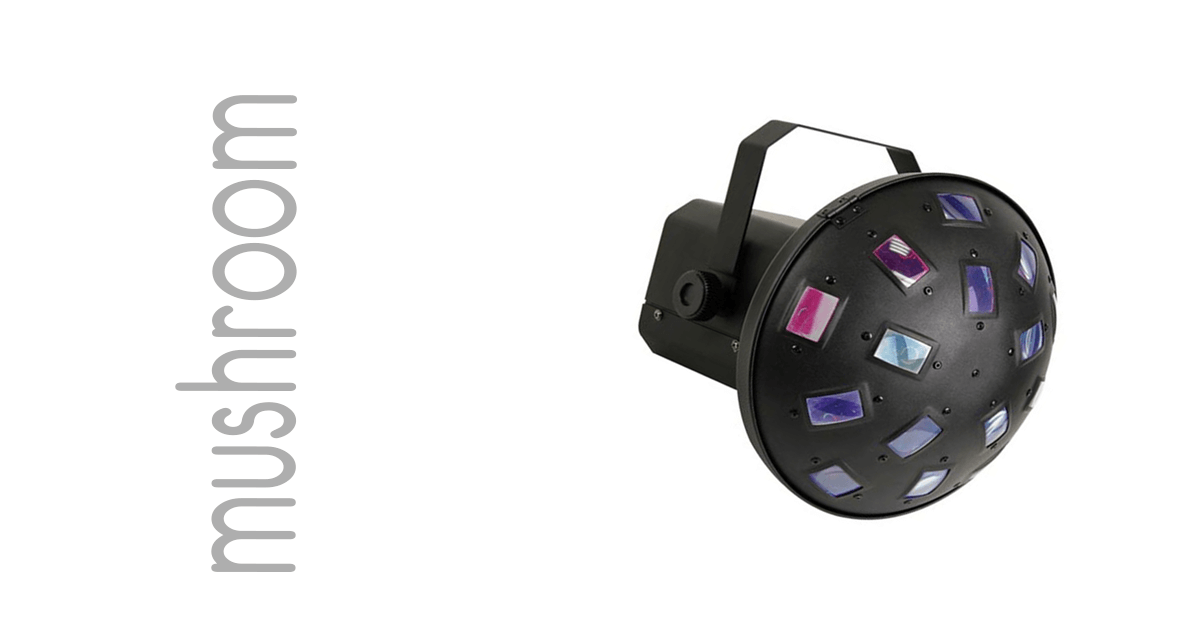

Simple two channel DMX LED derby effect featuring continuous rotation or back and forth motor control. Has automated or sound activated programs. Three 3 watt LEDs (red, green, blue), very wide 130° coverage angle.

DMX: 3 pin in and out, Starting Address: 1—511

Electrical: 120 VAC 24 watts 0.2 amps. IEC UC-14 power inlet, NEMA 5-15R through

Dimensions: 8.7" height, 8.1" width, 12" depth, Weight: 5.4#

DMX Controls for Chauvet Mushroom LED

Channel	Description	Attribute Type
1	Mode Control	Control
2	Rotation Control	Spd1

Chauvet Mushroom LED

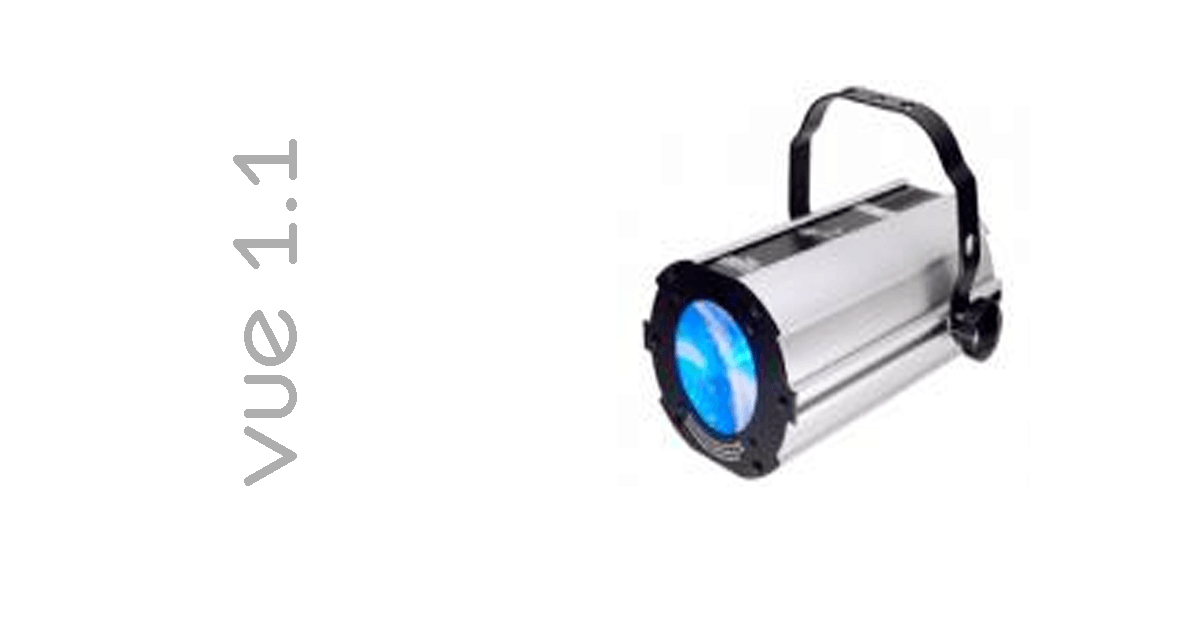

Chauvet Vue 1.1 Moonflower features 36 red, 24 green, and 24 blue LEDs with RGB color modes, 9 auto modes, and sound active mode and strobe control. 34° beam angle.

DMX: 3 pin in and out, Starting Address: 1—507

Electrical: 120 VAC 19 watts 0.2 amps. NEMA 5-15P power input

Dimensions: 7.5" height, 8.5" width, 10" depth, Weight: 5#

DMX Controls for Chauvet Vue 1.1

Channel	Description	Attribute Type
1	Mode Control	Control
2	Red Level	R
3	Green Level	G
4	Blue Level	B
5	Strobe Control	Strb
6	Dimmer Control	Dim

Chauvet Vue 1.1

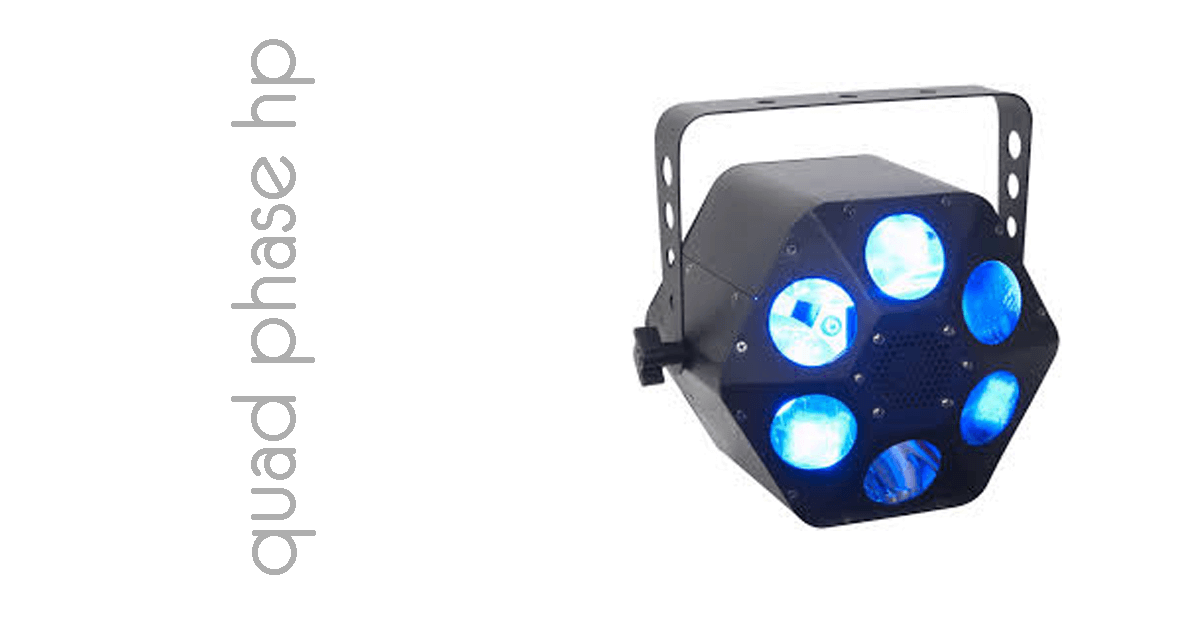

The American DJ Quad Phase HP features a bright 32 watt Red, Green, Blue, and white LED cluster. 15 DMX color selections with control hasOfferCatalog rotation, strobe, and shutter. 65° beam angle.

DMX: 3 pin in and out, Starting Address: 1—509

Electrical: 120 VAC 64 watts 7.0 amps. IEC UC-14 power inlet, NEMA 5-15R through

Dimensions: 11" height, 8" width, 12.5" depth, Weight: 9#

DMX Controls for ADJ Quad Phase HP

Channel	Description	Attribute Type
1	Color Control	Color
2	Rotation Control	Spd1
3	Strobe Control	Strb
4	Shutter Control	Control

ADJ Quad Phase HP

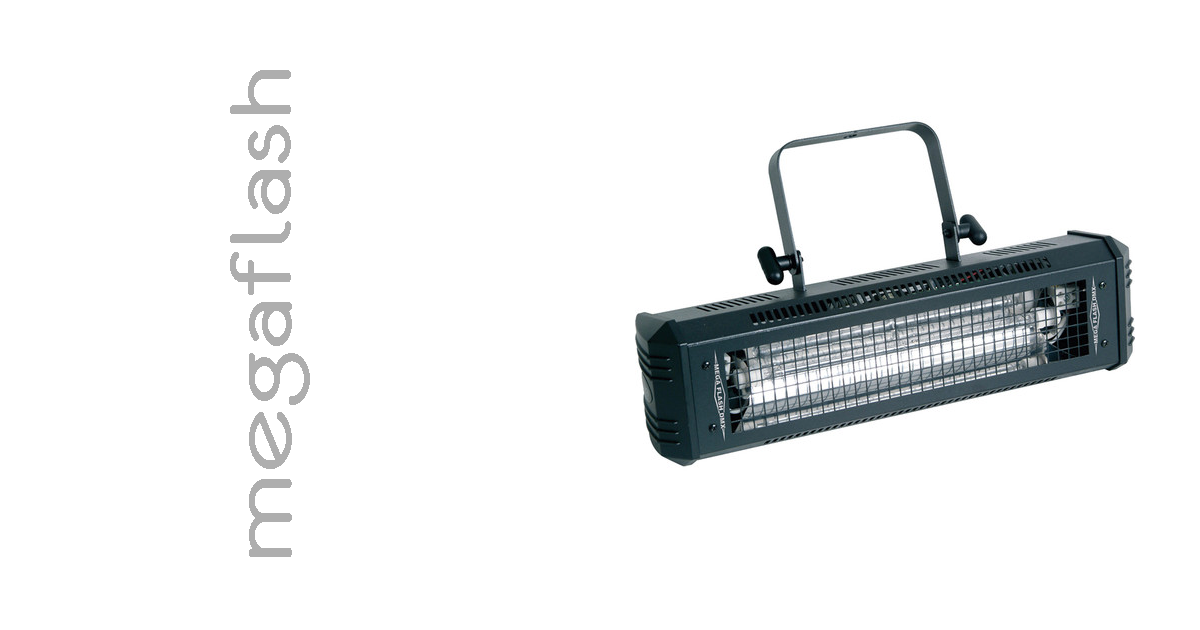

The ADJ Megaflash is an extremely bright strobe light capable of 1 to 14 flashes per second. It features DMX control of rate and intensity.

DMX: 3 pin in and out, Starting Address: 1—511

Electrical: 120 VAC 800 watts 8.0 amps. NEMA 5-15P input

Dimensions: 4.1" height, 15.9" width, 5.3" depth, Weight: 4.8#

Lamp: ZB-800

DMX Controls for ADJ Megaflash

Channel	Description	Attribute Type
1	Speed Control	Spd1
1	Intensity Control	Dim

American DJ Megaflash

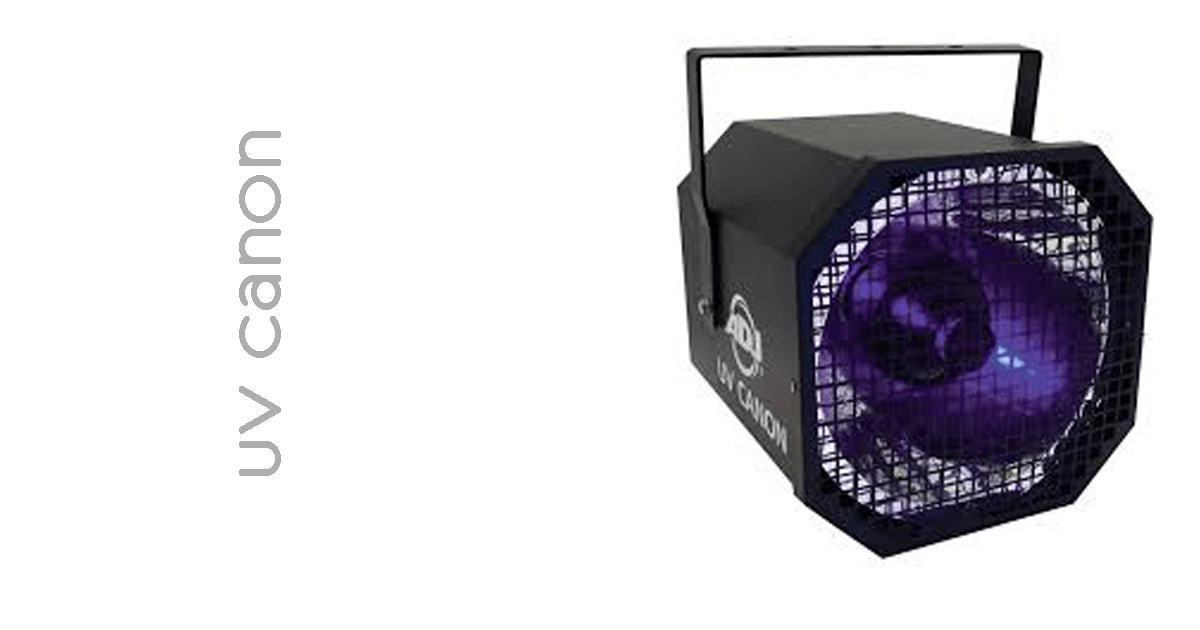

The American DJ UV Canon is an ultraviolet projector capable of intense ultraviolet light directed at a specific location.

Electrical: 120 VAC 400 watts 6.0 amps. NEMA 5-15P power cord

Dimensions: 15" height, 13.75" width, 14.25" depth, Weight: 26.7#

Lamp: LL-400BLB

American DJ UV Canon

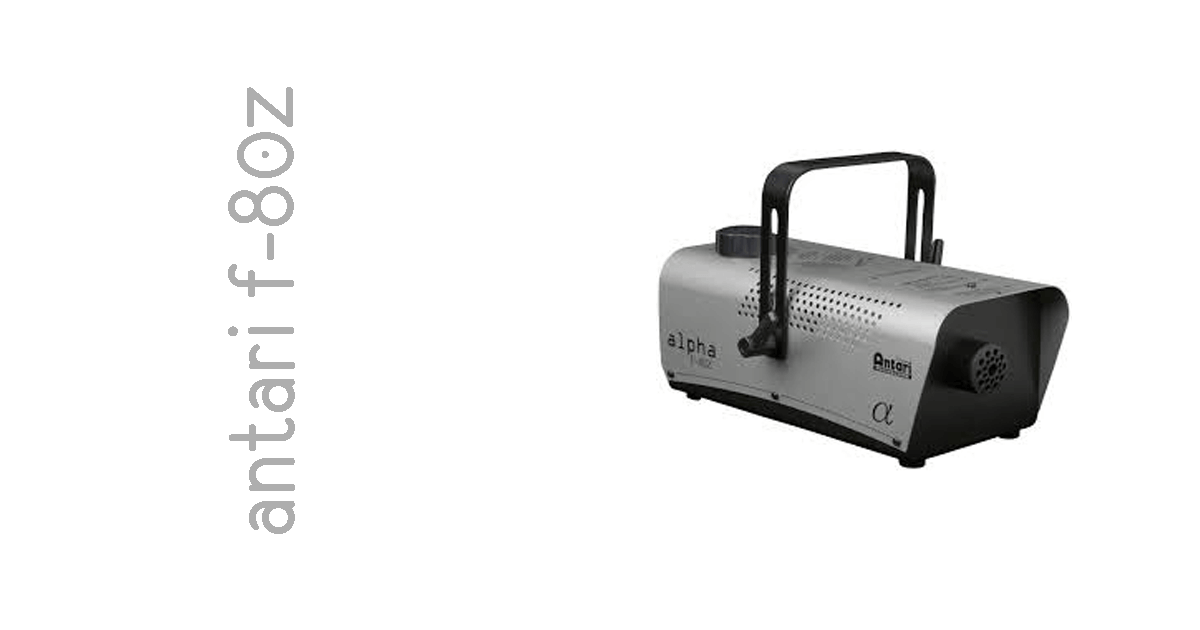

The Antari F-80Z is a small but powerful smoke machine that is built on the market leading technologies Antari is so well known for. It is very reliable, even though under eight pounds in weight, the 700 watt heater and 800ml tank pump out 2500 cubic feet a minute of room filling rich mist. We have literally fogged a 6000 square foot space to a peasoup fog with it. The machine has a remote control and extension cables and can be mounted overhead in the truss.

Electrical: 120 VAC 700 watts 6.0 amps. NEMA 5-15P power cord, IEC UC-14 remote control port

Dimensions: 5" height, 6.3" width, 13" depth, Weight: 8#

Fluid options:
Froggy's "Backwood Bay" for long duration
Froggy's "Techno Fog" for medium duration DJ/Club formula
Froggy's "Velocity" for fast dissipation

Antari F-80Z

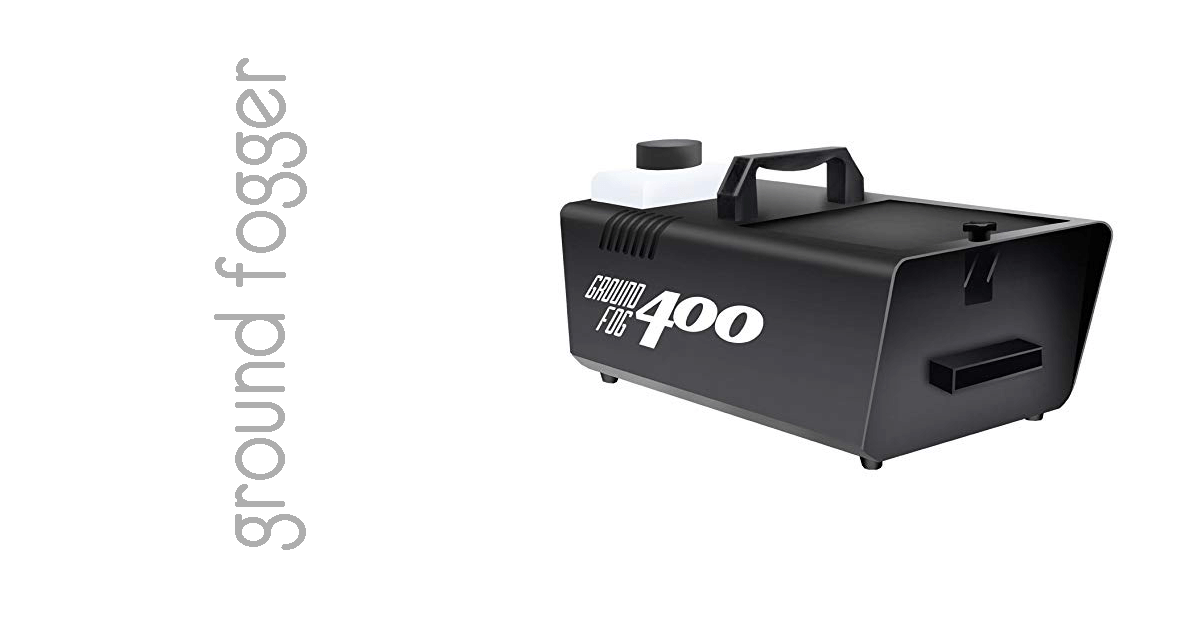

The Jinyu FLL-400 Ground Fogger produces 2000 cubic feet per minute of low lying ground fog. 1 liter tank. Uses either dry ice or regular ice to chill the fog. Dry ice works better. When using regular ice, expect melt water from the drain tube. Best results occur where the air temperature is warmer. Also features IEC remote control.

Electrical: 120 VAC 400 watts 3.5 amps. NEMA 5-15P power cord, IEC UC-14 remote control port

Dimensions: 7.5" height, 7.3" width, 13.5" depth, Weight: 6#

Fluid options:
Froggy's "Cryo Freeze" for low lying fog

Jinyu FLL-400

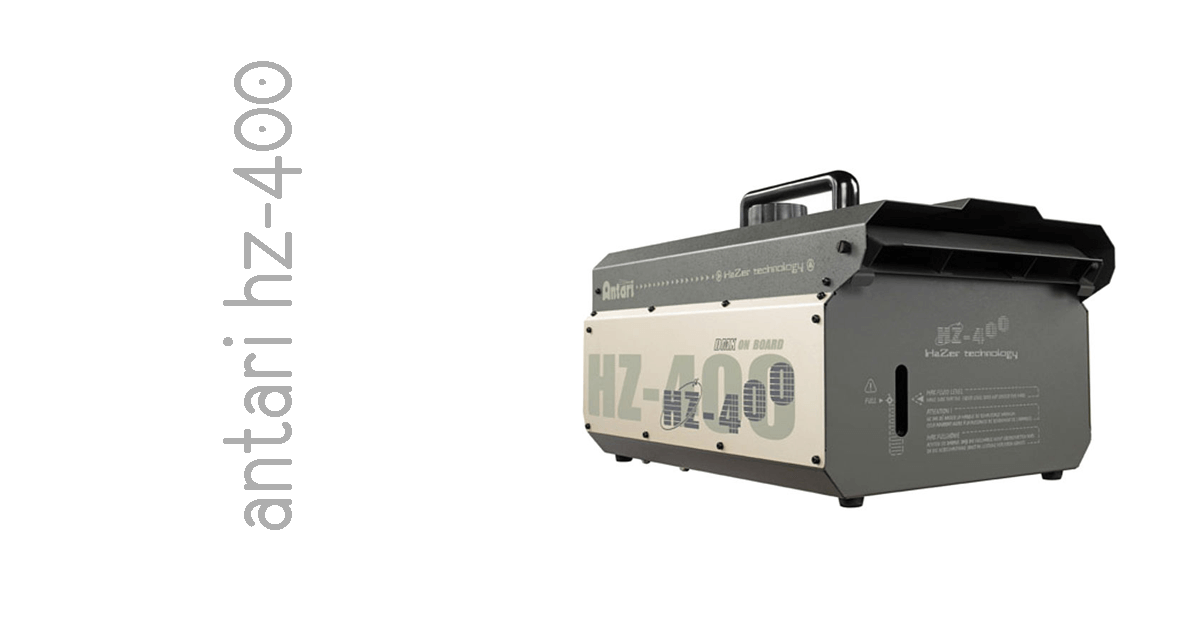

The Antari HZ-400 is equipped with an internal, maintenance-free air compressor, a sophisticated haze transfer mechanism, and a specially designed fluid tank. The HZ-400 is equipped with two haze nozzles capable of producing virtually invisible large volume of haze output. The fine translucence and non-stop output produced by HZ-400 makes it more remarkable by the fact that with this hazer there are no temperature controls, hot air and warm-up times during operation. Its internal compressor is extremely powerful, quiet and very efficient. With an added on-board DMX which provides users to control the unit by any DMX 512. HZ-400 Professional Haze machine is the elegant combination between the ultimate haze quality from high capacity, low fluid consumption and silent operation demanded by professionals. 2.5 liter tank, 2800 cubic feet/minute output.

DMX: 5 pin in and out, Starting Address: 1—512

Electrical: 120 VAC 470 watts 3.9 amps. IEC UC-14 power inlet

Dimensions: 12.56" height, 12.6" width, 19.69" depth, Weight: 41#

Fluid options:
Froggy's "Houston Haze" oil based
Froggy's "Krazy Haze" water based

DMX Controls for Antari HZ-400

Channel	Description	Attribute Type
1	Output Control	Control

Antari HZ-400

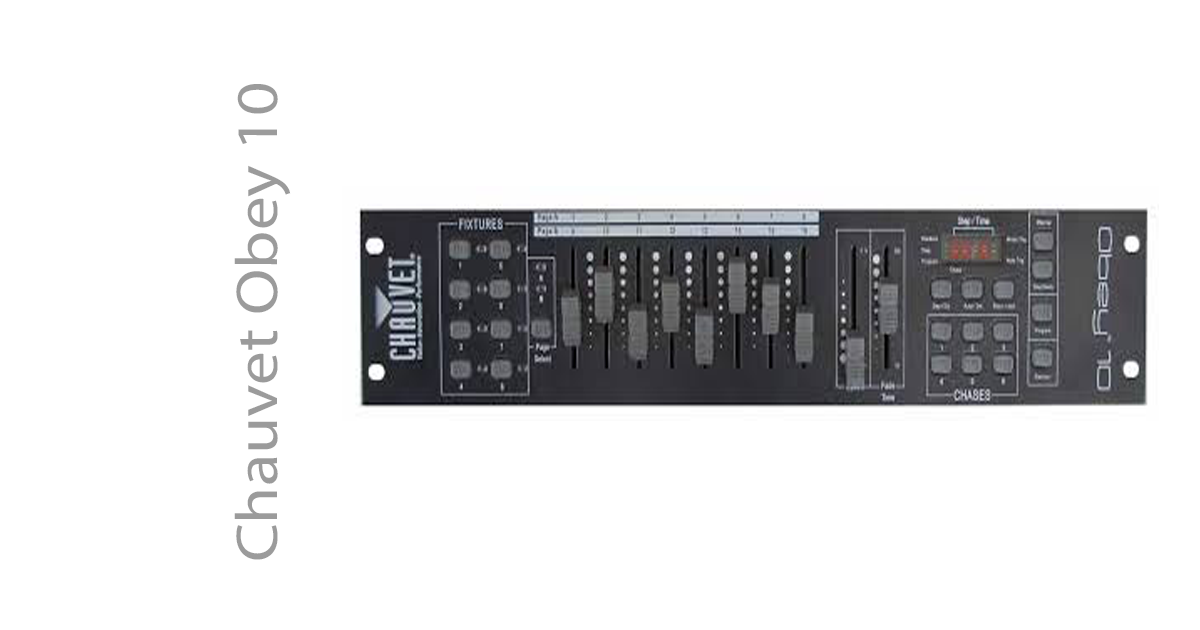

The Chauvet Obey 10 (OB-10) 2U rack mount DMX controller is a fairly versatile unit capable of controlling 128 DMX channels allocated into 8 fixtures of 16 channels each and is ideal for controlling of many intelligent fixtures DJ's like to use including lasers, moonflowers, sweepers, mushrooms, and scanners among others. The unit also features six cascadeable chases of 999 steps which can be triggered either manually, automatically, or by sound. Fixtures can also be operated manually at any time.

DMX: 3 pin out, Address Range: 1—128

Electrical: 120 VAC 60 watts 0.5 amps. NEMA 5-15R power supply

Dimensions: 3.5" height, 19" width, 3.5" depth, Weight: 3.9#

Obey 10 Manual and Worksheets

Chauvet Obey 10
